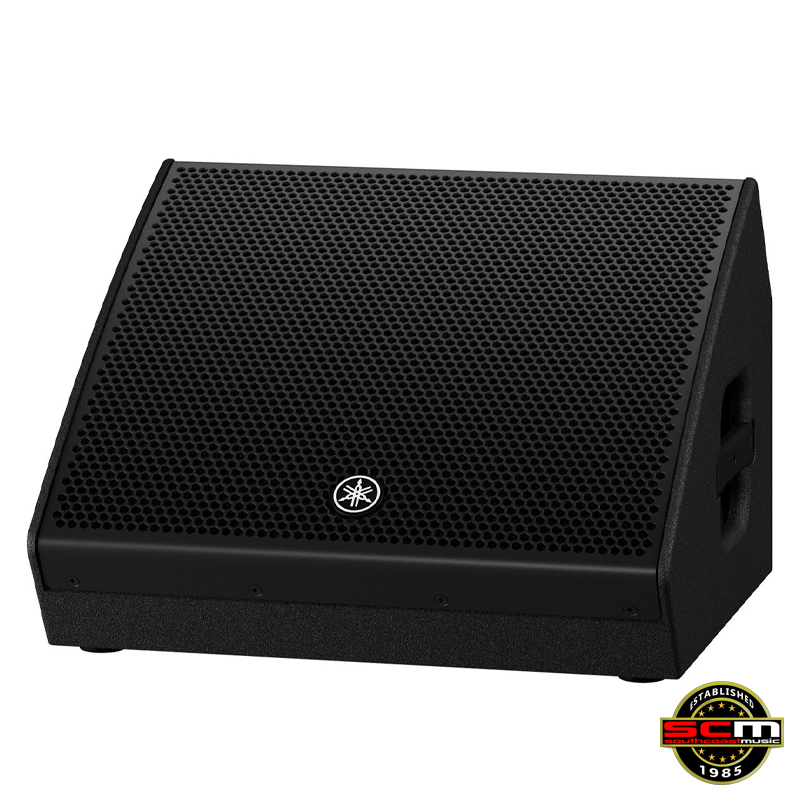

YAMAHA DHR12M Powered Stage Monitor
The DHR12M is a powerful yet compact 2-way bi-amp powered loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M offers best-in-class sound quality and durability.
Those in the know buy once – they buy Yamaha.
• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand offers added versatility
• Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimising phase distortion
YAMAHA DHR12M Specifications
• Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB): 55 Hz – 20 KHz
• Coverage/Dispersion area: H9o· x v90
• Crossover: 1.8 KHz: FIR-X tuning (linear phase FIR filter)
• Maximum Output Level: 129 dB SPL (Measured Peak, IEC noise@1m)
• LF Driver: 12″ Cone, 2.5″ Voice Coil, Ferrite Magnet
• HF Driver: 1.75″, 1″ Throat Coaxial Compression Driver, Ferrite Magnet
• Amplifier Class: Class D
• Dynamic Power Rating: 1000 watts (LF: 800 W, HF: 200 W)
• Continuous Power Rating: 465 W (LF 400 W, HF 65 W)
• Cooling: Fan cooling, 4 speeds
• Power consumption: 74 W (1/8 Power), 18 W (Idle)
• Power requirements: 240 VAC 50Hz
• AID D/A Converters: 24 bit 48 kHz Sampling
• Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Octave; D-CONTOUR: FOH/MAIN, MONITOR, OFF

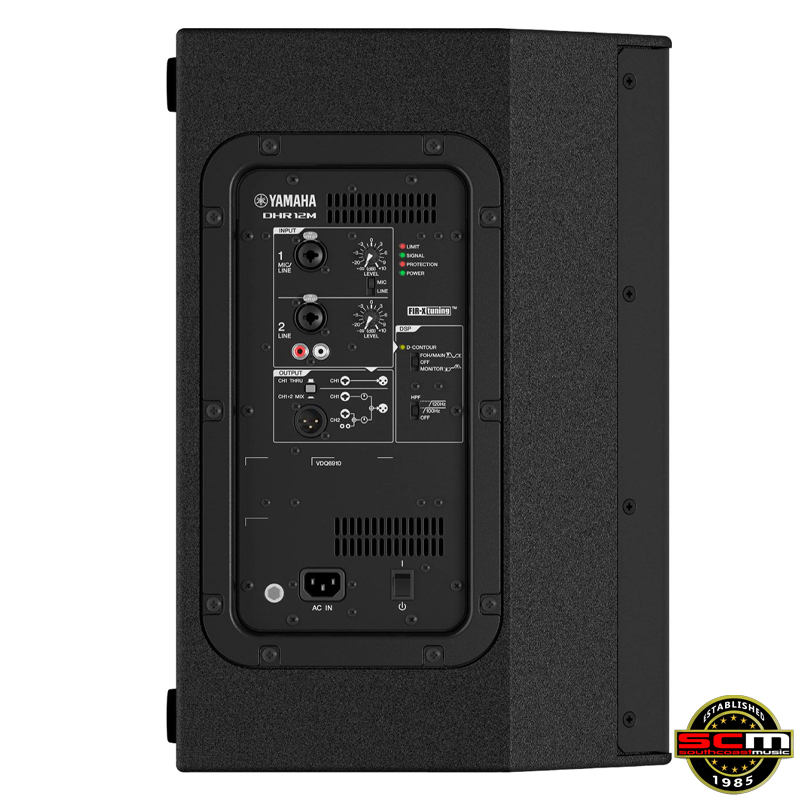

• Input Connectors: INPUT 1: 1 x XLR/6.35mm Combo, INPUT2: 1 x Combo + RCA pin x 2 (Unbalanced)
• 0utput Connectors: 1 x XLR3-32 (CH1 Parallel Through or CH1+CH2 Mix)
• Cabinet material: Plywood
• Cabinet Finish: Durable Black Polyurea Coating
• Carry Handle: 1 x Side Mounted Handle
• Pole Socket: <1>35 mm x 1 (Bottom)
• Dimensions: W500mm X H343mm X D454mm
• Net Weight: 16.5kg
• Warranty: Five Year Warranty
