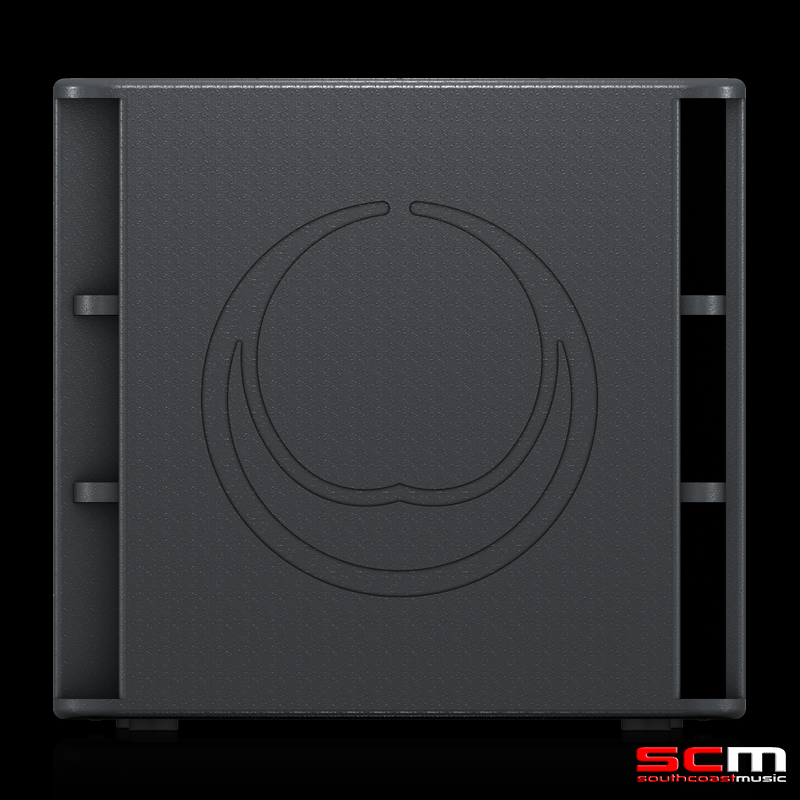

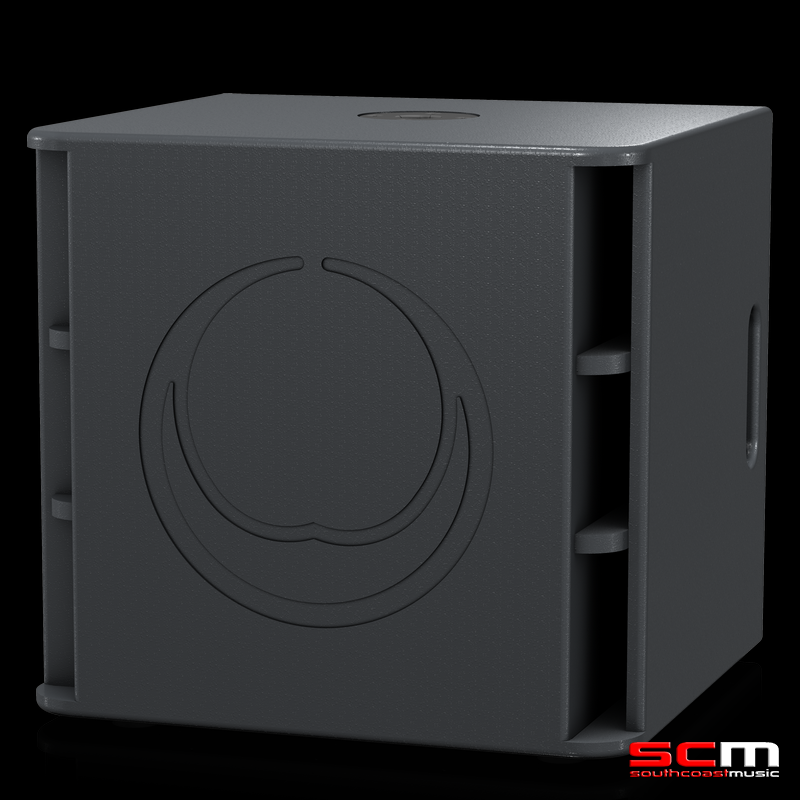

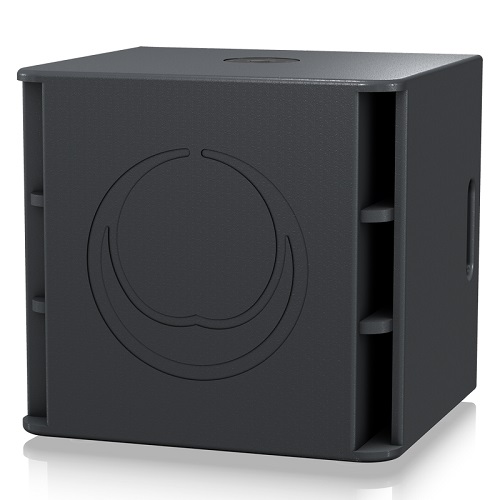

TURBOSOUND MILAN M15B
o Band pass powered subwoofer for portable PA and installation applications
o 2,200 Watt power featuring KLARK TEKNIK Class-D technology
o High excursion 15″ low frequency driver with 4″ voice coil and double suspension
o Bass boost and polarity switch for accurate low frequency system integration
o Birch plywood enclosure with hard wearing semi matt black paint finish
o Rugged powder coated perforated steel mesh grille
o 36 mm pole mount to support satellite speaker

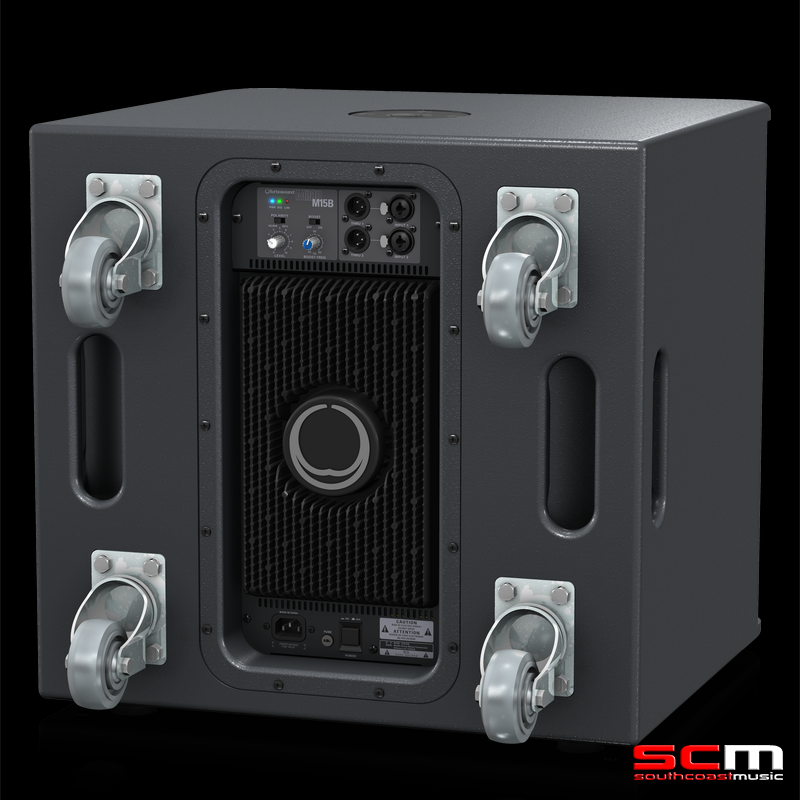

o Plated steel castors with rubber tyres
o 10-Year Warranty Program*
o Designed and engineered in the U.K.
The 2,200-Watt MILAN M15B is a powered portable band pass 15″ subwoofer that is designed for maximum bass extension for both portable and permanent install applications.
M15B’s discrete inputs are equipped with balanced, combination ¼ ” jack/XLR connectors and a shared Level control, making them ideal for a wide range of music sources, from mixing consoles, low impedance microphones, guitars and keyboards.

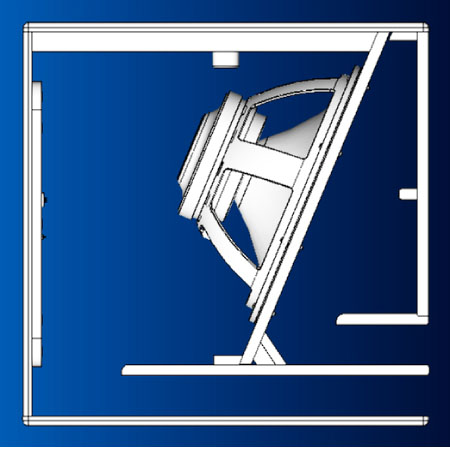

MILAN M15B Bandpass Enclosure Design
Bandpass enclosures are extremely efficient, creating maximum bass output within a specific frequency range by increasing the acoustic load presented to the driver. The low distortion bandpass design utilised in the M15B reinforces the bass musical instrument frequencies, and steep cut-off slopes ensure an effective acoustic transition for use with MILAN Series full-range loudspeakers.
A typical application could consist of an M15B providing the low-frequency bass extension for one, or two MILAN Series top cabinets.
MILAN M15B Class-D – Massive Power, Perfect Sound
Thanks to TURBOSOUND’s revolutionary Class-D amplifier technology, they are able to provide 2,200 Watts of output power with incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks.
This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.
MILAN M15B Custom-Engineered Drivers
Powerful, high-efficiency Class-D amplifiers and Switch Mode Power Supply technology coupled with state-of-the-art DSP functionality sounds very impressive – but what about the part of the system you actually hear? TURBOSOUND are known internationally for making some of the best-sounding speaker systems in the world, so they take their drivers (woofers and tweeters) very seriously.
TURBOSOUND LF and HF drivers are designed specifically for each application – it is what sets TURBOSOUND apart. When you buy a TURBOSOUND loudspeaker, you can rest assured the high-excursion 15″ LF driver inside has been engineered to perform flawlessly in conjunction with every other element for truly professional results. The MILAN M15B outputs massive quantities of tight and articulate bass – and works seamlessly with all MILAN Series loudspeakers.

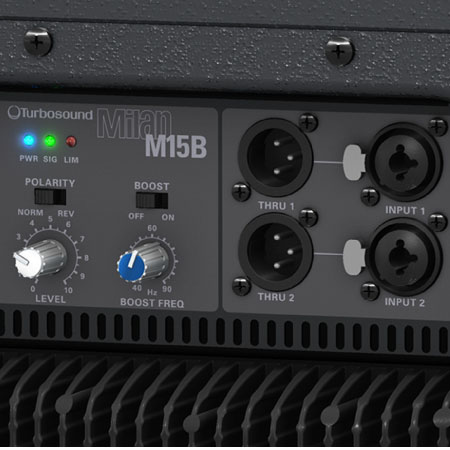

MILAN M15B Integrated Control Center
The onboard control panel features a subwoofer Level control, a polarity switch for proper phasing with your loudspeakers, and a switchable Boost filter (set at 100 Hz), which ensures correct integration with your system. An additional filter allows the selection of Speech (for enhanced voice intelligibility), or Music for the broader frequency range required for the high-fidelity reproduction of musical content. Convenient XLR Thru connectors send both input signals to your powered full-range loudspeakers, or to additional powered subwoofers.
TURBOSOUND MILAN M15B SUBWOOFER TECHNICAL SPECIFICATIONS
- Model: MILAN M15B
- Components: 1 x 15″ LF driver
- Input Connectors: 2 x female XLR wired pin 2 hot
- Thru Connectors: 2 x male XLR wired pin 2 hot
- 240vac Connector: IEC mains connector with integrated fuseholder
- Controls: Level, Polarity, Boost, Boost Frequency
- Frequency Range: 45 Hz–100 Hz ±3 dB
- Frequency Range: 35 Hz–150 Hz -10 dB
- Max SPL (peak): 134 dB
- Boost Frequency: +6 dB @ 40 Hz–90 Hz, Q=1
- Power Indicator LED: Blue
- Signal Indicator LED: Green
- Limit Indicator LED: Red
- Amplifier Protection: Full short circuit, thermal, overcurrent, DC
- Max Output Power: 2200 W
- Audio Input Sensitivity: +4 dBu @ centre position for full rated power
- Input Impedance: 10 kO unblanced, 20 kO balanced
- Power Supply, Voltage (Fuses): Australia 240 V~, T6.3A H250 V
- Power consumption@ 1/8 max power: 280 W
- Construction: Birch plywood, screwed and glued
- Dimensions: H495 x W530 x D480 mm (19.5 x 20.9 x 18.9)
- Net weight: 37 kg (81.4 lbs)
