Radial Engineering Bigshot I/O True Bypass Instrument Selector Pedal


Pick Up The The Perfect Instrument Selector For Stage Or Studio Use – The Radial Engineering Bigshot I/O True Bypass Instrument Selector Pedal

The Radial BigShot i/o is an easy to use instrument selector that lets you quickly transition between any two instruments and send the output signal to your amp. Because the i/o is 100% true-bypass, it addresses the needs of the most demanding purist.

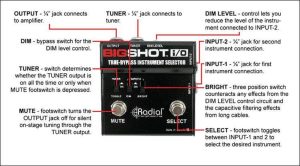

To enhance functionality, input-B is equipped with a trim control called DIM that lets you use two different types of instruments and set the levels so that they match. You simply connect the louder of your two instruments into input B and set the level to suit. When passive instruments are used, a unique ‘bright’ switch lets you compensate for high frequency loss when using longer cables. The BigShot i/o is also equipped with a separate tuner output. With a simple foot stomp, the sound going to the amp is muted and diverted to the tuner for quiet on-stage adjustments.

Super compact, extremely rugged and 100% passive, the BigShot i/o does not require any powering to make it work. This makes it ideal for pedalboards where the use of batteries or power supplies is painful!


  • Combination RIAA Phono preamp and DI box Stereo RCA
  • Toggle two instruments with single foot stomp
  • Adjustable volume control to match levels
  • Separate tuner output and mute switch
  • Load compensation for long cables
  • Ground lift
  • Input pad
  • Circuit Type: Passive, true-bypass
  • Construction: 14 gauge steel
  • Finish: Durable powder coat
  • Size: 3.6″w x 3.9″d x 2″h (92 x 99 x 51mm)
  • Weight: 1.25 lb (0.56 kg)
  • Conditions: For indoor use at temperatures between 40 deg  and 105 deg


Made in Canada
Manufacturer: Radial Engineering
