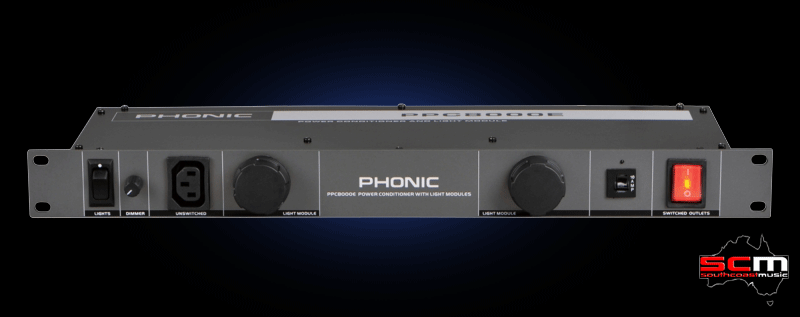

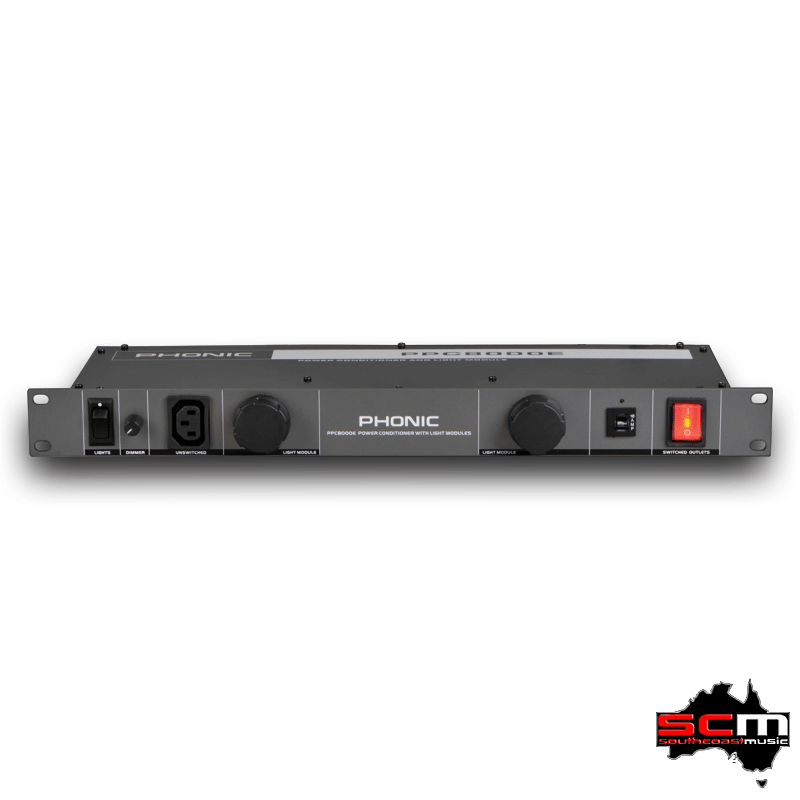

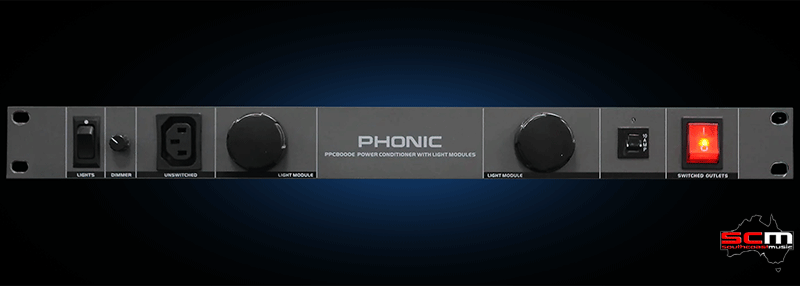

PHONIC PPC8000E POWER CONDITIONER
● 19″ Rackmountable
● 10 x Switched Outlets on the Rear Panel
● 1 x Single, Unswitched Outlet on the Front panel
● 2 x Swivelling Light Fixtures with Dimmer Switch for Rack Illumination
● RFI / EMI Filtering
● Circuit Breaker with 10 amp Rating
● Heavy-Duty 14-gauge AC Power Cable
● Triple-mode Varistor Spike and Surge Protection
● 190V to 270VAC Power Handling Capability
The Phonic PPC8000E is a rack mountable Power Conditioner that helps provide clean, constant power to all devices that use 240VAC power while protecting them against power spikes, transients and electrical noise.
Electronic systems are by their very nature susceptable to being destroyed, degraded and disrupted by powerline disturbances. Anyone operating electronic equipment in a Professional AV, IT, Theatre, House of Worship, Multi-Media situation and more, runs the risk of catastrophic damage due to power outages, brownouts, lightning, common mode voltage and high voltage transients.
The performance of a surge protector in an electrical system is unpredictable and only capable of limiting damage from destructive events. Alternatively, the Phonic PPC800E Power Conditioner incorporating a surge diverter, an isolation transformer and a powerline noise filter can help to eliminate system destruction, component degradation and costly operating disruptions.

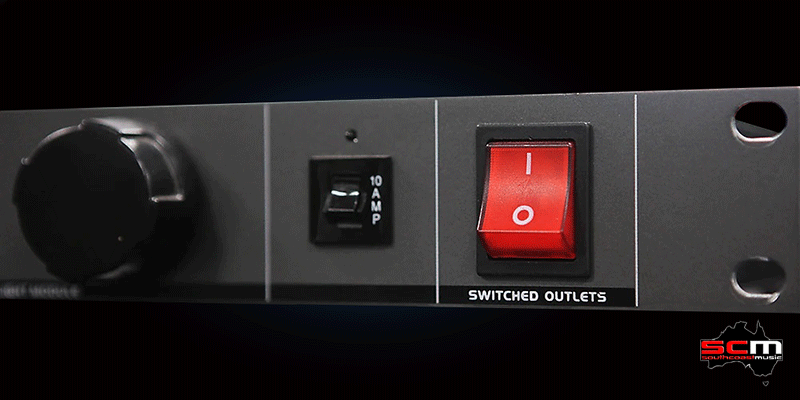

The PPC8000E features 10 accessory outlets, a 10 amp circuit breaker and a single, unswitched outlet on the front. All eleven outlets are protected and filtered.

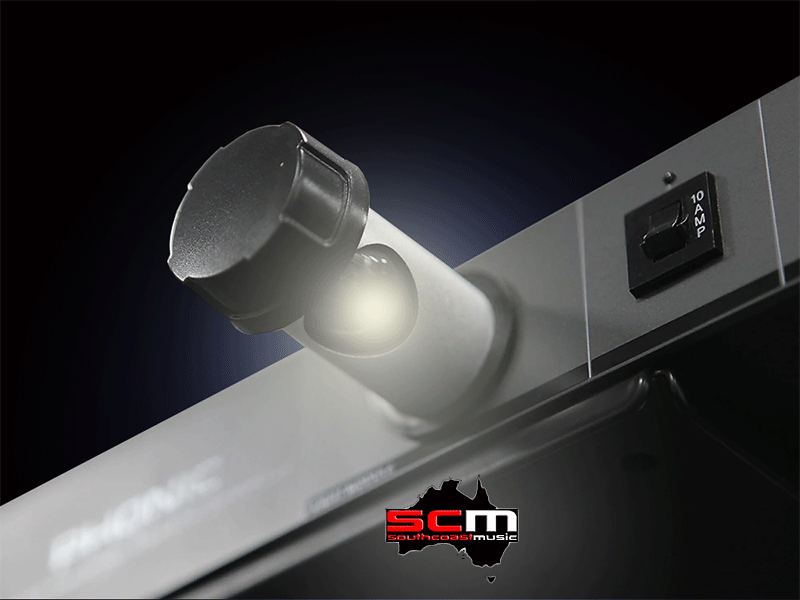

Two slide-out swiveling rack lights with dimmer control are offered on the front of the unit to light your rack. The 1 rack unit construct features a heavy duty 7 foot AC power cable for stable operation
PHONIC PPC8000E SPECIFICATIONS:
● Response Time: 1 nanosecond
● Current Rating: 10 amps
● Accessory Outlets: 10
● Input Voltage: 190 to 270VAC
● Noise Attenuation: Transverse and common modes: 20dN at 200 KHz, rising to >40 dB, 1 to 100 MHz
● Lamps: 2 x slide-out, swiveling light fixtures
● Maximum Surge Current: 6,500 amps
● Dimensions: W481.98mm x H44mm x D152mm (W18.98″ x H1.73″ x D5.98″)
● Warranty: One Year
