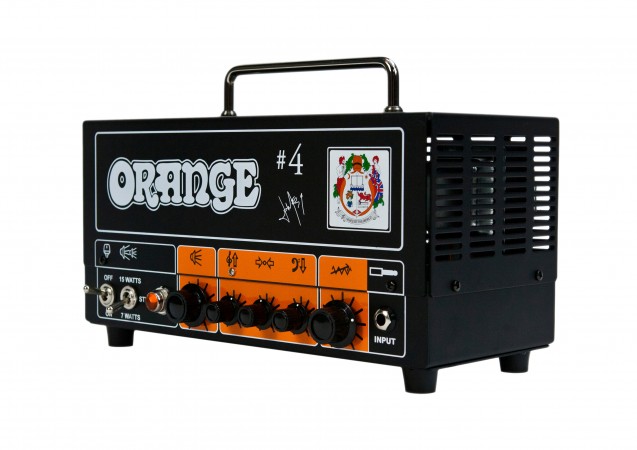

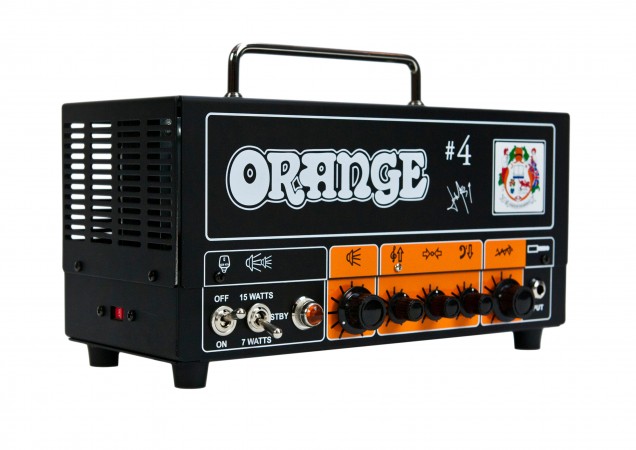

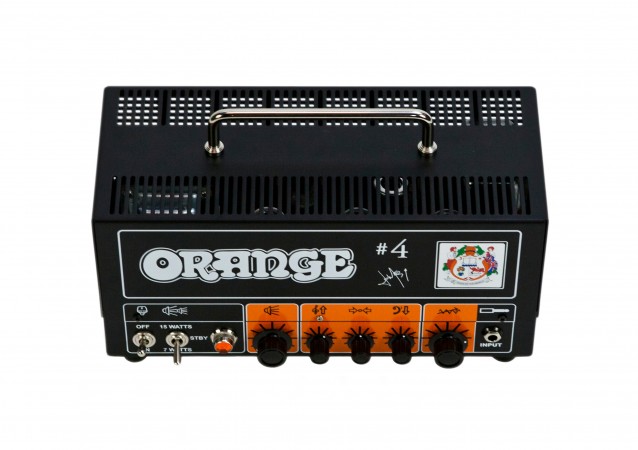

Orange TT15JR Tiny Terror

Jim Root #4 Signature Amplifier

15W Tube Guitar Amp Head

AMPLIFIER OF THE YEAR – MIA AWARDS 2012

Oranges first ever signature amplifier is based directly on the Dirty Channel of Jim Root’s own Rockerverb 100 MKII.

The ‘Pics Only’ styling pays homage to his self-confessed love of vintage Orange amps although the sounds within are unmistakably modern.

A powerful 3 band EQ and four stages of high gain capture the trademark savage riffing tones that have propelled the Slipknot ace to the status of a contemporary Rock legend.

Along with switchable output power and the addition of a valve-driven FX loop, this little head would be a seriously potent addition to anyone’s arsenal.

Pair with its matching #4 Jim Root PPC212 cabinet for a compact but menacing half stack.

FEATURES & SPECS:

All valve

1.5mm Zintec chassis with vented steel top case

High gain 4 stage preamp

Valve FX loop

“Rockerverb” tone stack

Controls

Volume, Bass, Middle, Treble, Gain

Output Power (Heads and Combos)

15 & 7 Watts

Power Handling (Cabinets)

NA

Valves (Heads and Combos)

Power amp: 2 xEL84

Preamp: 3 x Ecc83/12ax7

FX Loop 1 x Ecc81/12ax7

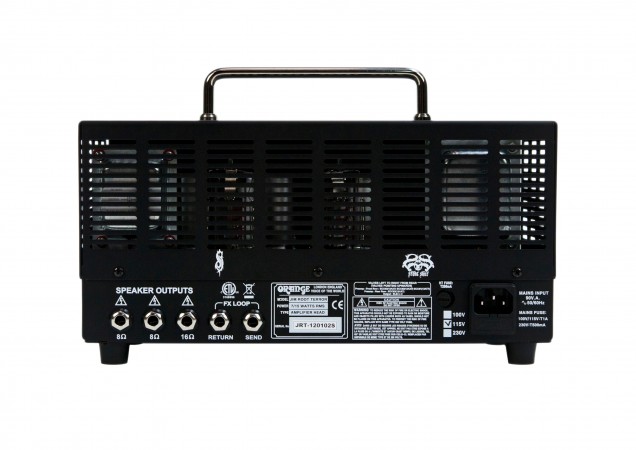

Speaker Output Options (Heads)

1 x 16 Ohm cabinet connected to the 16 Ohm output

1 x 8 Ohm cabinet connected to one of the 8 Ohm outputs

2 x 16 Ohm cabinets each connected to one of the 8 Ohm outputs

Speakers (Combos and Cabinets)

NA

Impedance (Cabinets)

NA

Extension Cabinet Options (Combos)

NA

Unboxed Dimensions

H (cm) 19

H (in) 7.48

W (cm) 30.3

W (in) 11.93

D (cm) 15.3

D (in) 6.02

Unboxed Weight

5.7 KG

12.57 lb
