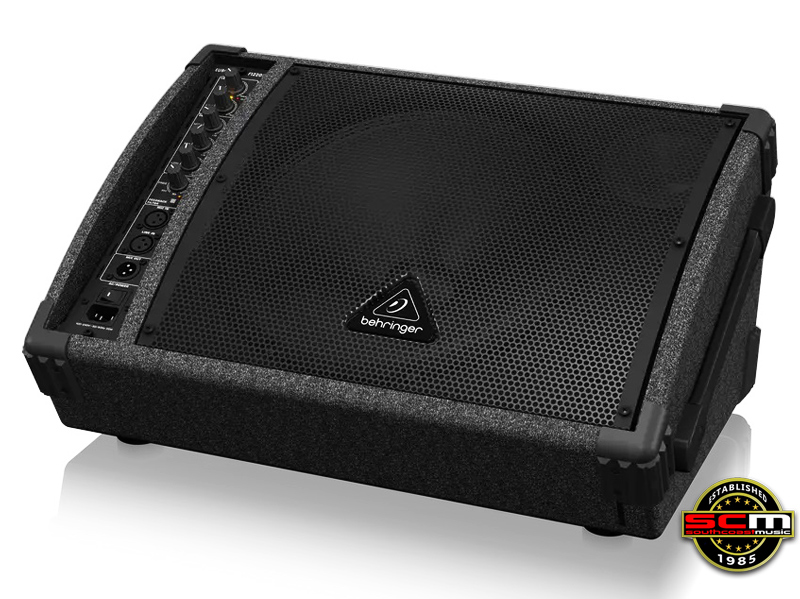

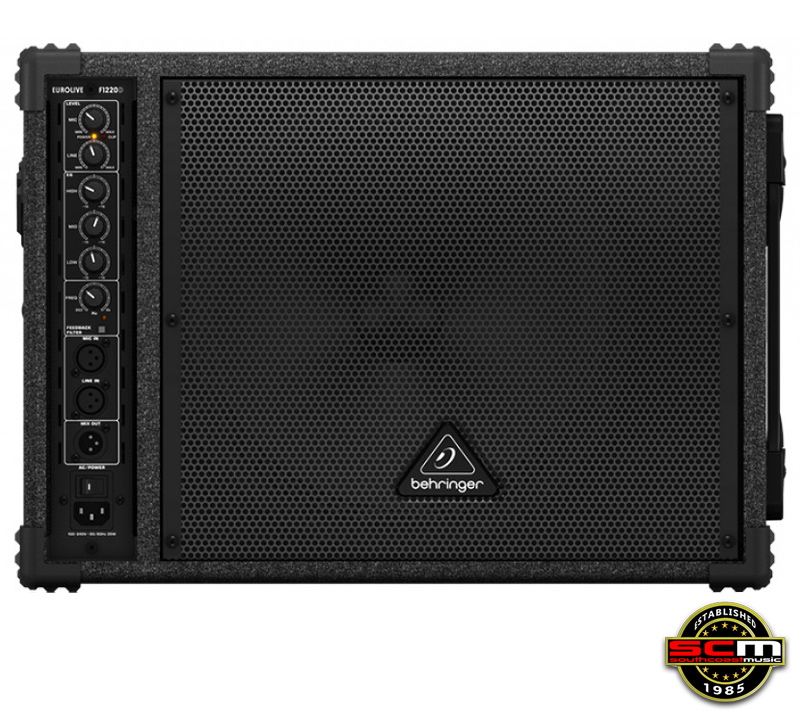

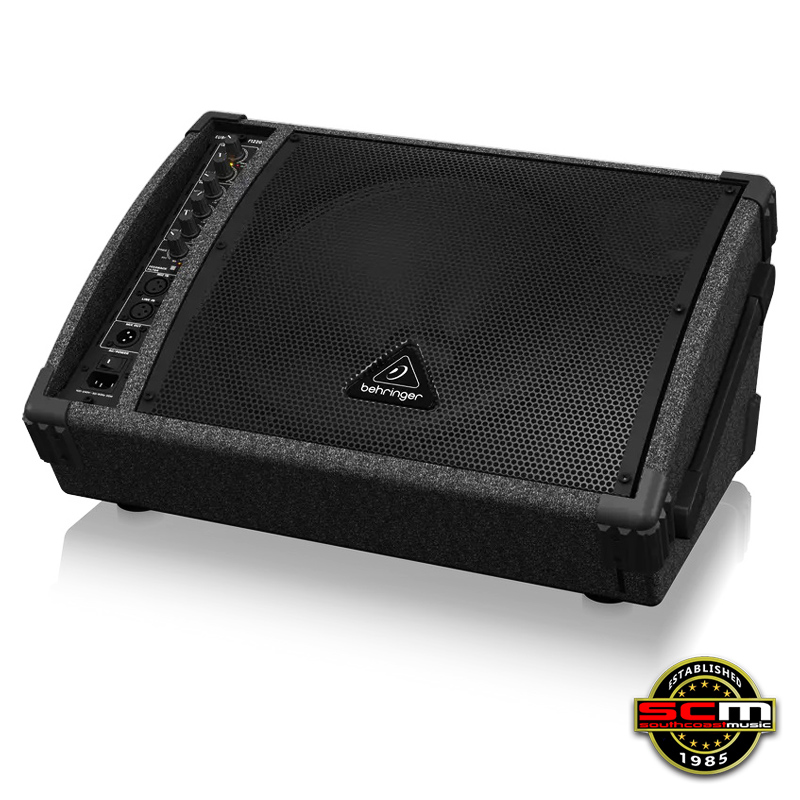

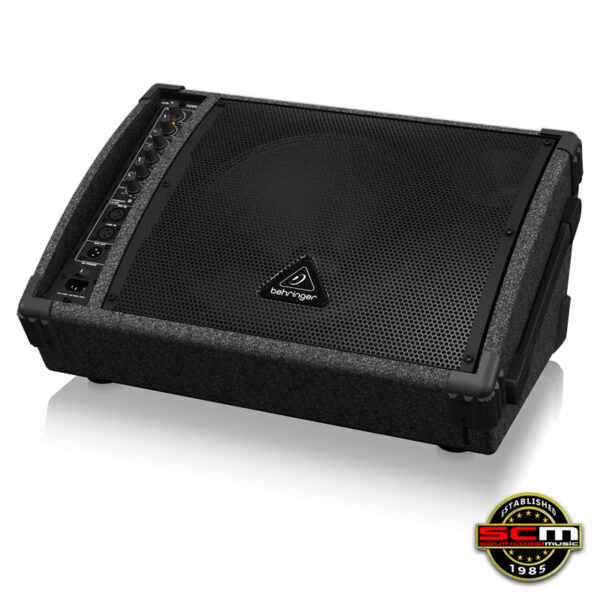

Behringer Eurolive F1220D bi-amped 250w Active 12 inch Monitor Speaker
• Lightweight 250-Watt 2-way monitor speaker system for live and playback applications
• Exceptional sound quality, wide frequency bandwidth and dynamic range
• True bi-amping mode with 2 amplifiers for ultimate sound reproduction
• Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
• Adjustable feedback filter and integrated limiter for ultimate system control and speaker protection
• 2-channel mixer with individual Mic/Line inputs and Volume controls
• Dedicated 3-band EQ for perfect sound shaping
• Additional Line output allows linking of additional speaker systems
• Integrated sound processor for ultimate system control and speaker protection
• Extremely powerful 12” long-excursion driver provides incredibly deep bass and acoustic power
• High-resolution 3″ Tweeter for exceptional high-frequency reproduction
• Internal switch-mode power supply for noise-free audio, superior transient response and very low power consumption
• Integrated 35 mm pole socket for stand mounting and use as PA system
• 3-Year Warranty Program*
• Conceived and designed by BEHRINGER Germany
Building on the legacy of their wildly successful EUROLIVE F1220A, Behringer are proud to present the even more powerful EUROLIVE F1220D.
This bi-amped 250-Watt active monitor system features a 3-band EQ, so you can tweak the Highs, Mids and Lows for a clear, true sense of your performance; a long- excursion 12″ woofer for punchy and deep bass, and a high-performance 3″ high-frequency compression driver for the ultimate in sound quality.
Thanks to the Class-D technology employed in the onboard 250-Watt amplifier, the F1220D weighs less than most passive monitor wedges (23.6 lbs/10.7 kg), making them easy to transport and set up. Controls are front panel mounted making them easy to access mid-performance.
The built-in adjustable feedback filter helps eliminate annoying squeals and howls so you can crank up the volume, allowing you to hear yourself above all the raging chaos, a.k.a., your band! After all, the main reason to have a monitor is so you can hear yourself, right? The EUROLIVE F1220D helps you perform up to your true potential.
* The Behringer EUROLIVE F1220D is covered by 1-year warranty, with extension to a 3-year warranty upon registration of the product at behringer.com within 90 days of purchase.
Behringer EUROLIVE F1220D Specifications:
EUROLIVE F1220D Amplifier
• Maximum output power: 250 watts
• Configuration: Bi-amping
• Type: Class-D
• Overload protection: Dual-controlled limiter
• Crossover type: Active
• Crossover frequency: 2 kHz
EUROLIVE F1220D Audio Inputs
• Mic input: XLR connector, balanced
• Sensitivity: -18 dBu to -37 dBu (Level VR from centre to max.)
• Impedance: 1 kΩ balanced, 2 kΩ unbalanced
• Line input: XLR connector, balanced
• Sensitivity: +16 dBu to -4 dBu (Level VR from center to max.)
• Impedance 10: kΩ balanced, 20 kΩ unbalanced
EUROLIVE F1220D Audio Outputs
• Mix output: XLR
• Impedance: 100 Ω, unbalanced
• Max. output: +22 dBu
EUROLIVE F1220D Equaliser
• High: ±15 dB @ 12 kHz
• Mid: ±15 dB @ 2.5 kHz
• Low: ±15 dB @ 80 Hz
EUROLIVE F1220D Feedback Filter
• Filter frequency: 350 Hz to 6 kHz
• Level reduction: 15 dB
• Q factor:20
EUROLIVE F1220D Loudspeaker System
• LF Driver: 1 x 12″ woofer
• HF Driver: 1 x 3″ Tweeter
• Frequency range: 45 Hz to 18 kHz
EUROLIVE F1220D Indicators
• Power: Amber LED
• Clip: Red LED
• Feedback Filter: Yellow LED
EUROLIVE F1220D Physical Attributes
• Enclosure Shape: Trapezoidal
• Enclosure Material: Wood
• Grille Material: Perforated steel
• Mounting: Dual-angle 30 mm pole mount socket
EUROLIVE F1220D Power Supply / Voltage
• Switch mode power supply: 100-240 V~ 50/60 Hz, switchable
• Power consumption @ 1/8 max power: 35 W
• Mains connection: 240V IEC
EUROLIVE F1220D Dimensions / Weight
• Dimensions: H238 x W500 x D354 mm (9.4 x 19.7 x 11.9″)
• Weight: 10.7 kg (23.6 lbs)
EUROLIVE F1220D Warranty
• Warranty: The Behringer EUROLIVE F1220D is covered by 1-year warranty, with extension to a 3-year warranty upon registration of the product at behringer.com within 90 days of purchase.
