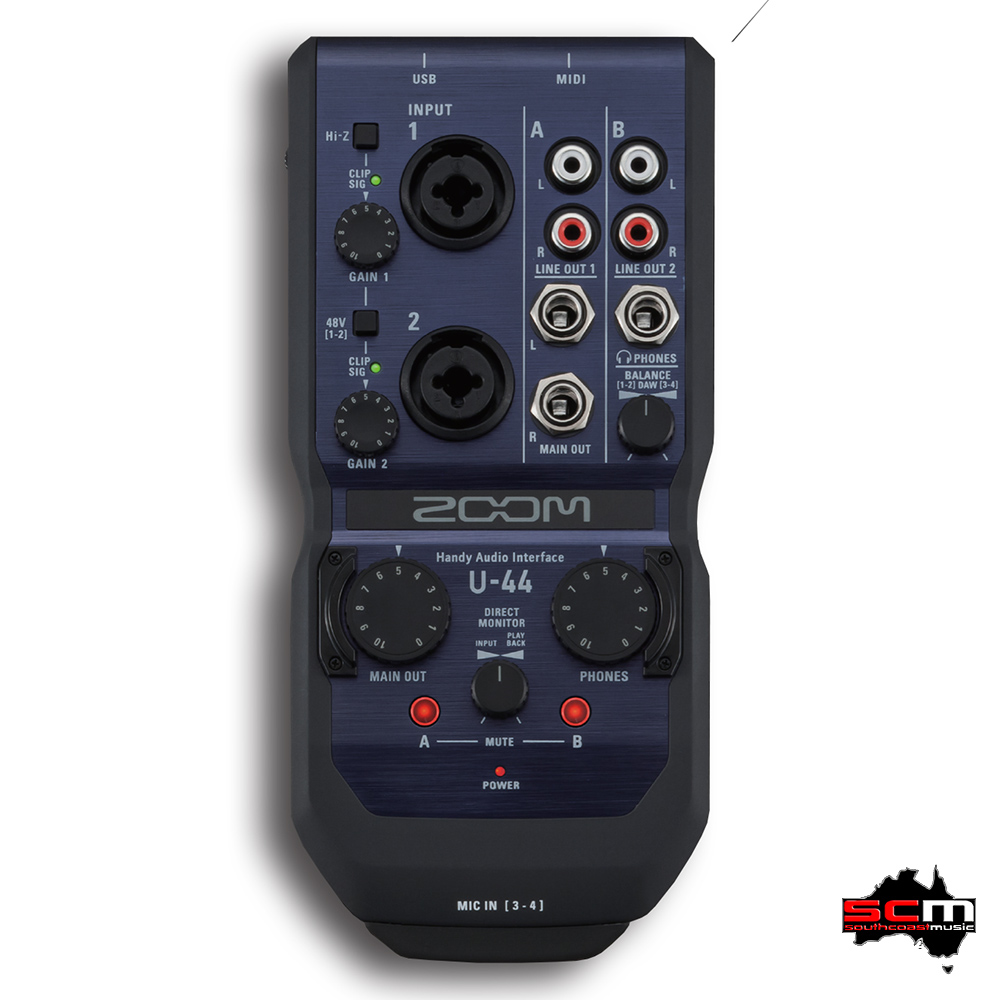

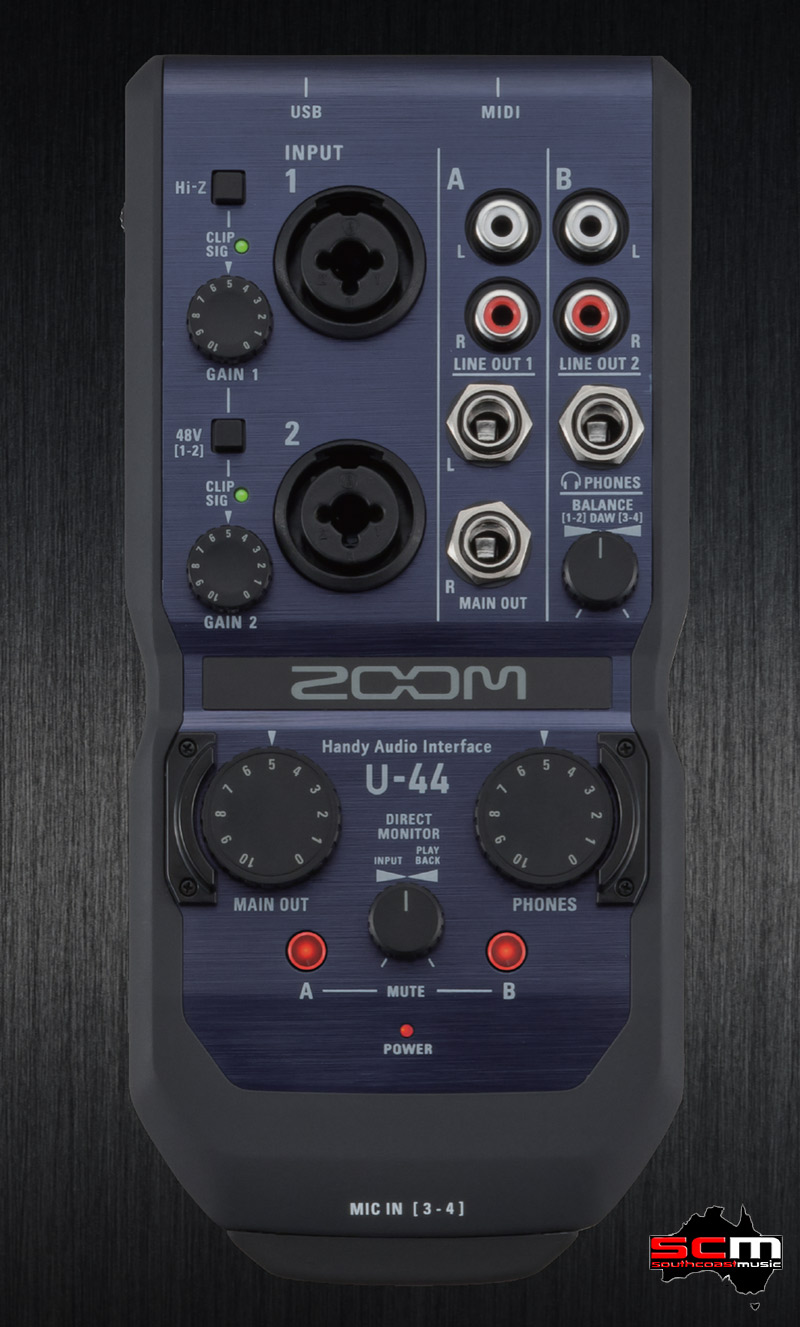

ZOOM U-44 Handy Portable USB Recorder Audio Interface
• Multi-channel and stereo USB audio interface for PC/Mac
• Connect to iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or
• Optional AC adapter for power
• Two mic/line inputs with high-performance mic preamps
• High-quality recording and playback at resolutions up to 24-bit/96 kHz

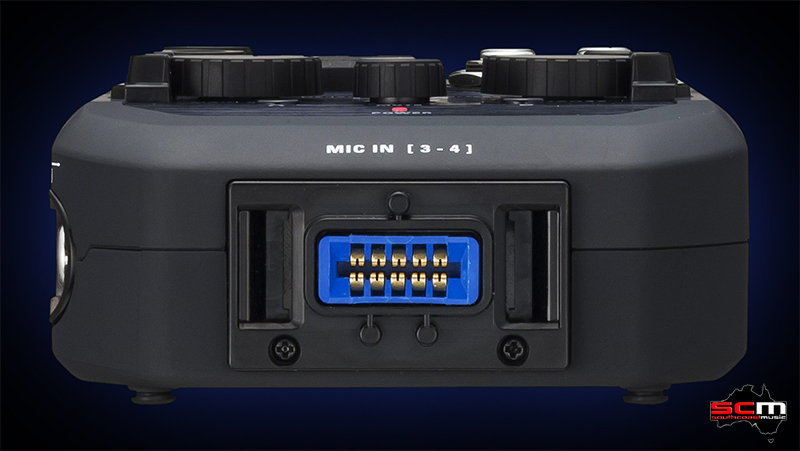

• Compatible with Zoom interchangeable input capsules via 10-pin connector
• Standalone AD/DA conversion
• Functions as a two-channel mic preamp with analog and digital outputs
• Approximately 4 hours of operation with 2 AA alkaline batteries
• Includes download code for Ableton Live 9 Lite
• Four-channel simultaneous inputs
• Hi-Z support (input 1)
• Zero-latency direct monitoring
• Three TRS phone jack outputs
• Dedicated RCA L/R and headphone outputs

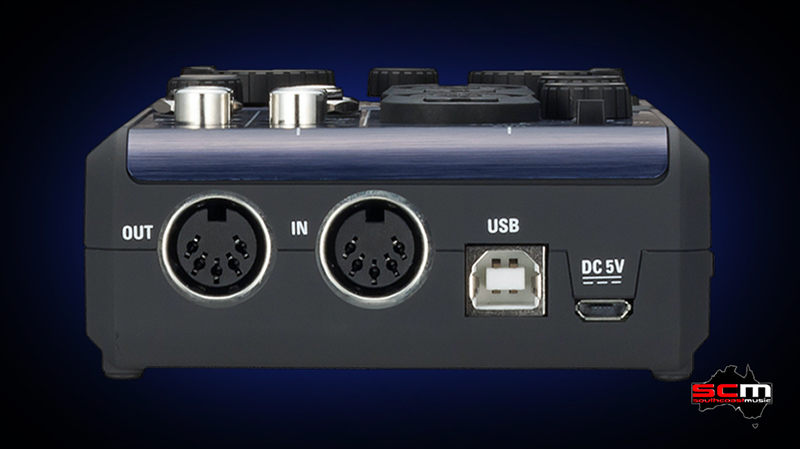

• MIDI I/O
• S/PDIF optical/coaxial input and output
• Gain control knobs for each input
• +48V phantom power for inputs 1 and 2
• Accepts standard AA alkaline or NiMH rechargeable batteries
The U-44 is a compact, 4-in/4-out audio interface that enables you to record and perform wherever you are. Small enough to fit in the palm of your hand, the U-44 comes equipped with the features you need to record 24-bit/96 kHz audio anywhere.
The U-44 offers the same high-quality, low-noise mic preamps as Zoom’s acclaimed H5 and H6 Handy Recorders, plus compatibility with their Interchangeable Input Capsules for incredible possibilities. Use the U-44 with your PC, Mac, or iPad via USB—or as a standalone AD/DA converter and mic preamp. No other audio interface provides this much versatility, value and performance.

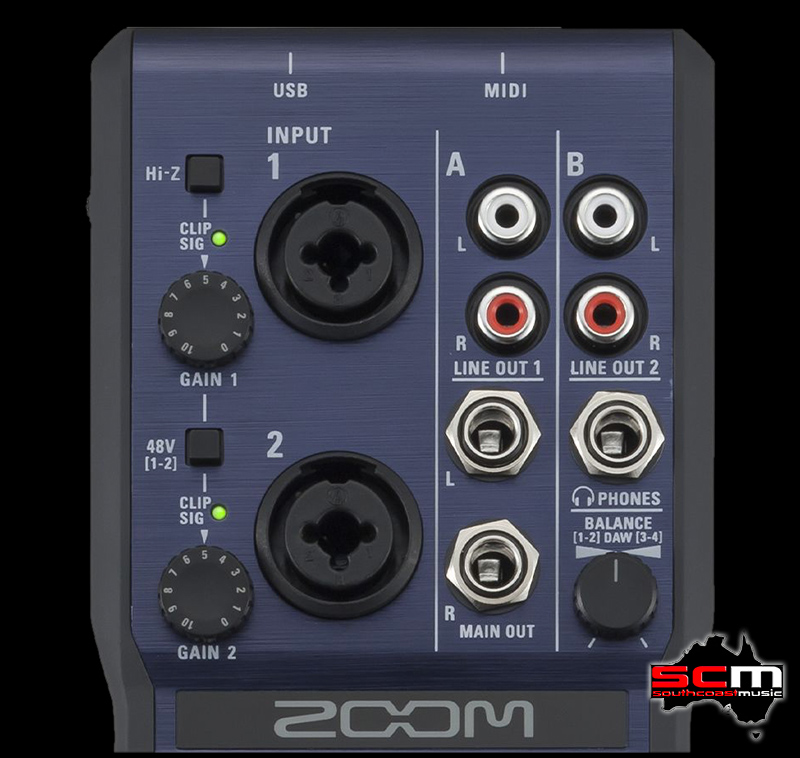

Control Your Mix
With advanced monitoring options, the U-44 lets you dial in your ideal mix. Create a balanced headphone mix between your click track and main out signals during live performances. Or balance the cue and main out signals when you’re DJ’ing. The outputs of channels A and B can be muted, providing even more control. Plus, direct monitoring enables you to hear the live signal you’re recording without latency—simply adjust between the input and computer playback signals to create the perfect mix.
Standalone AD/DA Conversion
When you’re transferring audio, high-quality AD/DA conversion is critical. The U-44 functions in standalone mode as a high-quality mic preamp and AD/DA converter to ensure complete transparency when converting audio formats.
You can choose between a 44.1 or 48 kHz sampling rate for conversion.
Feature-Rich Mobile Recording
The U-44 is small enough to carry in your jacket pocket or backpack—without sacrificing features. Plus, all of the connectors and knobs are strategically positioned for fast access.
• Computer Connectivity: USB
• Form Factor: Portable
• Simultaneous I/O: 4 x 4
• Number of Preamps: 2
• Phantom Power: Yes
• A/D Resolution: 24-bit/96kHz
• Analog Inputs: 2 x XLR-1/4″ combo (Hi-Z option input 1), 1 x 10-pin Mic input (Zoom H-Series Mic capsules)
• Analog Outputs: 2 x 1/4″ (main out), 2 x RCA stereo pairs, 1 x 1/4″ (headphones)
• Digital Inputs: 1 x Toslink (S/PDIF), 1 x Coax (S/PDIF)
• Digital Outputs: 1 x Toslink (S/PDIF), 1 x Coax (S/PDIF) MIDI I/O: In/Out USB: 1 x Type B, 1 x Micro-B
• OS Requirements – Mac: OS X 10.8 or later (iPad use Camera Connection kit or Lightning to USB Camera adapter)
• OS Requirements – PC: Windows 7 or later
• Bus Powered: Yes
• Power Supply: USB Micro-B, 2 x AA batteries or Zoom AD-17 adapter (sold separately)
• Dimensions: H1.68″ x W3.63″ x D7.83″
• Weight: 0.68 lbs.
