ZOOM H4N PRO AUDIO HAND HELD RECORDER 4 CHANNEL HANDY RECORDER

ZOOM H4N PRO AUDIO HAND HELD RECORDER 4 CHANNEL HANDY RECORDER

The Zoom H4n Pro is packed with features that make it perfect for capturing audio for film. The onboard X/Y microphones deliver spectacular stereo imaging, and two combo input jacks allow you to use your favorite microphones as well. It also includes a headphone/line out jack to easily send high-definition stereo directly to your camera.
The H4n Pro can record up to four simultaneous channels of audio at resolutions and sample rates higher than CD-quality, capturing sound sources in WAV and MP3 formats. It utilizes an SDHC card for storage and a USB connection for transferring material to your computer. A pair of standard AA batteries powers the device, and can provide up to 12 hours of continuous recording in Stamina mode (using NiMH 2450 mAh batteries).

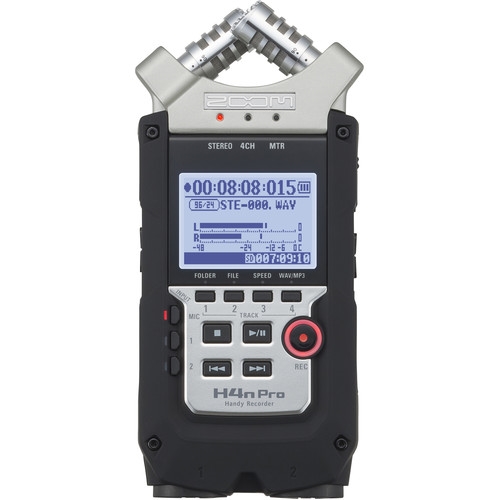

Built-In Stereo Mic in X/Y Configuration
The on-board X/Y stereo microphone can cover a wide berth whilst capturing any sound source in its center with precision. Both microphones are angle-adjustable: You can change the angle of capture from 90° (for a focused stereo image) or 120° (for a wider stereo image) simply by twisting each mic’s capsule.

On-Board M/S Decoder
Perhaps you’d prefer to capture stereo audio by means of an M/S technique, rather than through the H4n Pro’s X/Y-configured capsules. Should you wish to plug external microphones into the unit’s preamp for this very purpose, the H4n Pro provides an on-board MS decoder, allowing you to adjust the width of the stereo image within the device itself. This is useful both for sound design and for broadcasting.

Connections
Revamped with the same low-noise preamps as the H5 and H6, the H4n Pro provides combination inputs for XLR or 1/4″ connections, both balanced and unbalanced. As such, it can handle mic/line and instrument signals. 24 or 48V Phantom can be applied to both inputs. Additionally, a stereo 3.5mm line jack for external devices—lavalier microphones, for example—is included. This jack supplies 2.5V power, if need be.

Portable Pocket Interface

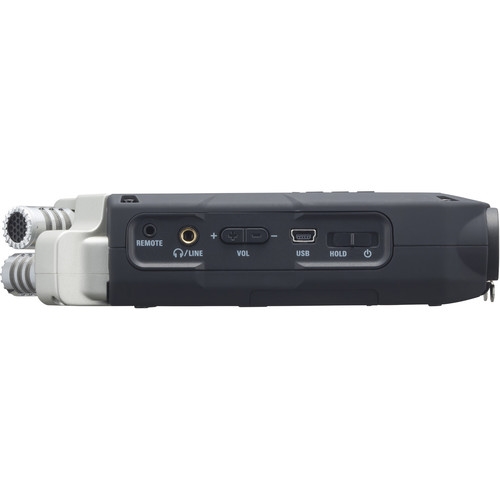

Utilizing its mini-USB port, you can use the H4n Pro as a 2-in/2-out interface for computers, recording straight to your DAW via its preamps and monitoring through the 3.5mm stereo headphone jack.

Multiple Recording Modes
Record in stereo mode, four-channel mode (utilizing the on-board stereo mics in addition to the built-in preamps), or in multitrack mode, which makes use of built-in effects, overdub functions, and the ability to work with prerecorded material. Additionally, you can use the pre-record function—ensuring you always capture audio starting from two seconds before the moment you press record—or the auto-record function, which allows the H4n Pro to start recording whenever it senses audio, and to stop as soon as the signal drops below a pre-set threshold.

Onboard Effects
The H4n Pro offers a variety of effects, including compression, limiting, reverb, delay, echo, a low-cut filter, and more. You also get an on-board metronome and tuner, along with dozens of amp models and effects crafted for guitars and basses. Furthermore, you can loop playback, adjusting the pitch and speed of the audio independently; this makes the H4n Pro a tool suitable for transcriptions, whether you need to get the words of a particularly fast talker down on paper, or the notes of a particularly fast guitar solo under your fingers.

Cubase LE and WaveLab LE Included
The H4n Pro includes licenses for Steinberg’s Cubase LE music production software, as well as WaveLab LE audio editing software. This is particularly useful for those who hope to create their own music utilizing the Pro’s USB audio interface function.

Rubberized and Secure Construction
The H4n Pro sports a rubberized body and revamped locking XLR/TRS connection points to keep your mic cables secure.

Additional Features

Record up to 140 dB SPL with X/Y microphones.
Output/headphone jack with dedicated volume control.
Built-in reference speaker for fast playback.
Internal mix-down: Four-track to stereo and stereo to dual mono.
Up to 99 marks per recording.
Normalize (maximum gain) and Divide (file-splitting) functions.
Mounts to mic stand or tripod, or directly to DSLR with optional Hot Shoe adapter.

Number of Tracks

Simultaneous Recording Tracks:
2 (stereo mode), 4 (4-channel mode), 2 (MTR mode)

Simultaneous Playback Tracks: 2 (stereo mode), 4 (4-channel mode), 4 (MTR mode)

Recording Time

4 GB with SDHC: Approx. 380 minutes (WAV 44.1 kHz/16-bit stereo track)

Approx. 68 hours (MP3 44.1 kHz/128 kbps stereo track)

* Recording times are approximations

Recording File Size Maximum: 2 GB

Project Files 1000/card

Locate Function Hours/Minutes/Seconds/Milliseconds

Other Functions Punch-in/out, Bounce, A-B repeat

Effects
Modules: 2
Stereo/4 Ch Mode: Lo Cut, Compressor/Limiter
MTR Mode: Pre Amp module, EFX module

Type 53

Patches 60

Tuners Chromatic, Guitar, Bass, Open A/D/E/G, DADGAD

Metronome Sound Sources: 5

Beat Variable: 1/4 to 8/4, 6/8, unaccentuated

Tempo 40.0 to 250.0 BPM

A/D and D/A Conversion 24-bit x 128 oversampling

Recording Media SD card (16 MB to 2 GB), SDHC card (4 to 32 GB)

Display 128 x 64 dots full-dot backlit LCD

Data Type WAV Format (Record/Play)

Quantization: 16/24-bit

Sampling Frequency: 44.1, 48, and 96 kHz

MP3 Format (Recording)

Bit Rate: 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320kbps, VBR
Sampling Frequency: 44.1 kHz

MP3 Format (Playback)
Bit Rate: 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320kbps, VBR
Sampling Frequency: 44.1/48 kHz
Inputs

General 1 & 2: XLR (balanced input) / 1/4″ (6.3 mm) phone (unbalanced input) combo jack

Input Impedance Balanced: 3 kOhms or more, pin-2 hot

Unbalanced: 470 kOhms or more

Input Gain Balanced: -16 to 43 dB

Unbalanced: -30 to 32 dB

Built-In Microphone Type: Unidirectional condenser microphone

Sensitivity: -45 dB/1 Pa at 1 kHz

Input gain: -16 to 51 dB

Maximum SPL: 140 dB

External Microphones Connection: 3.5mm Mini stereo phone jack

Input impedance: 2 kOhms or more

Input gain: – 16 to 51 dB

Outputs

Line / Phone Line output load impedance: 10 kOhms or more

Rated output level: -10 dBu

Phone: 20 + 20 mW (into 32-Ohms load)

Speaker 400 mW 8 Ohms

Phantom Power 48 & 24 V, Off

USB
USB 2.0 High-Speed mass-storage class operation, audio interface operation (USB functions can be operated by USB bus
power)

Power Requirements 5 VDC from AC adapter (ZOOM AD-14)

Batteries 2 x IEC R6 (size AA)
Continuous Recording Time Stereo mode: (With built-in mics at 44.1 kHz/16-bit without headphones connected): 6 hours with alkaline batteries, 8 hours with NiMH batteries.

Stamina mode: (With built-in mics at 44.1 kHz/16-bit without headphones connected): 10 hours with alkaline batteries, 12 hours with NiMH batteries.

Dimensions (W x D x H) 2.9 x 6.6 x 1.5″ / 73 x 167.2 x 37 mm
Weight 10 oz / 294 g
UPC: 884354016357
