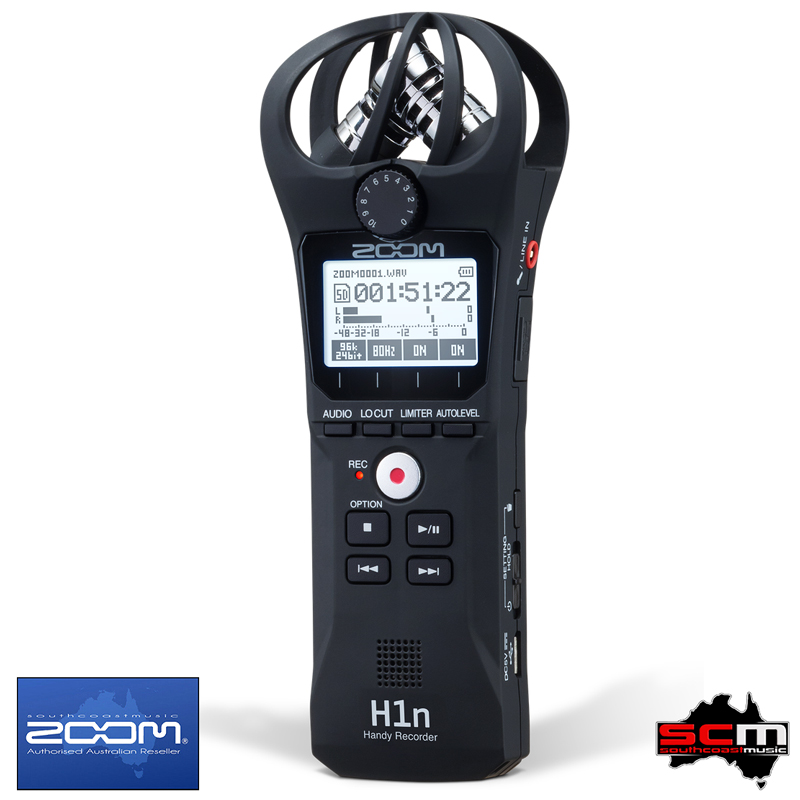

THE ZOOM H1N
THE EVOLUTION CONTINUES . . . JUST PRESS RECORD
Creators everywhere are using Zoom Handy Recorders to capture sound and sample audio like never before.

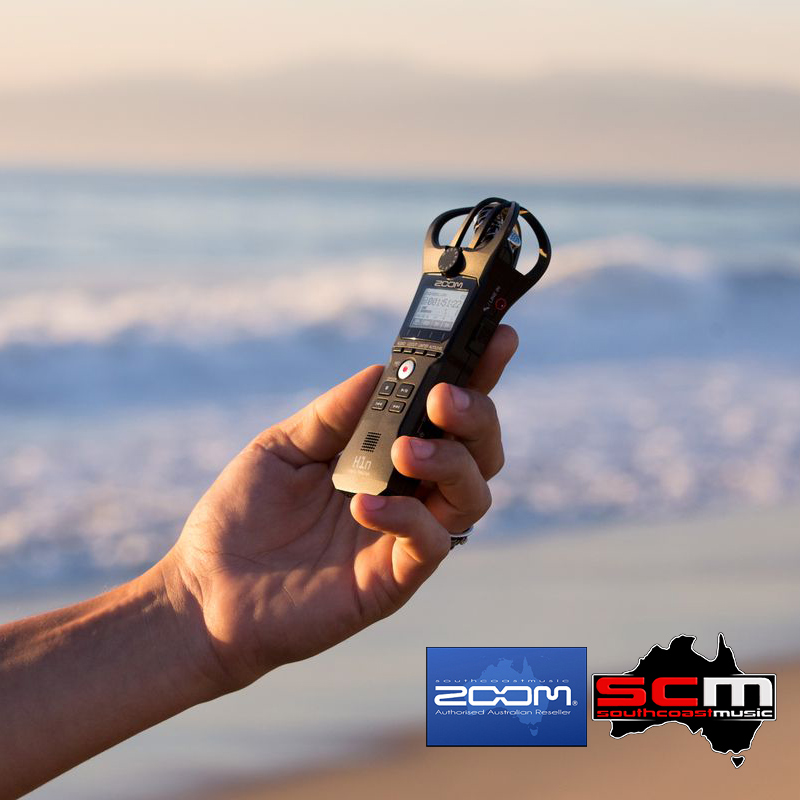

The new H1n is the ultimate take-anywhere recorder for every creator’s gear bag.
Like its predecessor, the all new Zoom H1n Handy Recorder is an easy-to-use, versatile stereo digital audio recorder that fits into the palm of your hand.
However, in response to feedback from end users and industry professionals, Zoom have made the all new H1n even simpler to use.

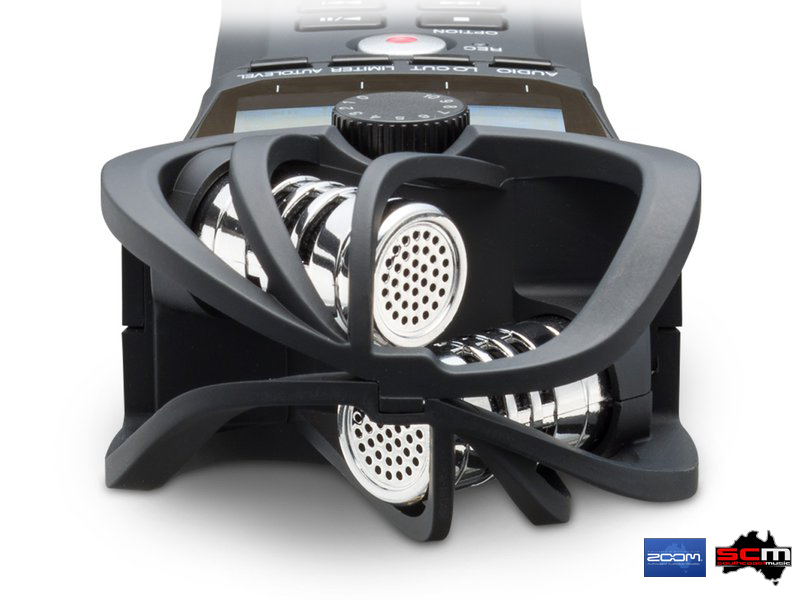

• X/Y Stereo Mic
• New Layout of Integral Controls
• Record WAVs & MP3s up to 24-Bit / 96 kHz

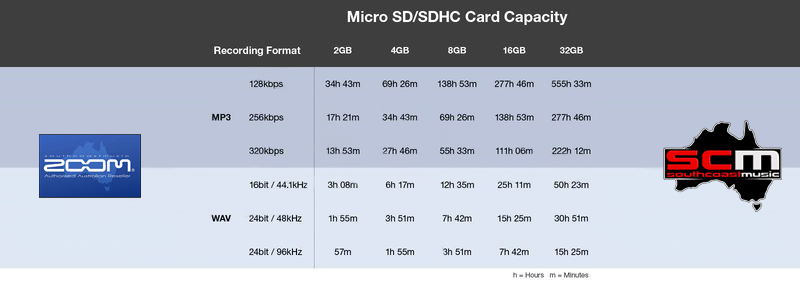

• Records to microSD/SDHC cards
• 3.5mm (⅛”) Input/Output Jack
• Built-In Limiter and Low-Cut Filter
• High-Speed USB 2.0 Connectivity
• Works as a USB Audio Interface
• Uses 2 Included AAA Batteries
Zoom Your Audio Anywhere and Everywhere
The H1n’s X/Y microphones capture high-quality stereo sound, supporting up to 24-bit audio at sampling rates of 44.1, 48, or 96 kHz in WAV and various MP3 formats.
You are in Control
With the H1n, Zoom have redefined the user experience. One-touch button controls make it simple to record songs, audio-for-film, lectures, podcasting, and more. The new monochromatic 1.25” LCD display is easy to read – even in the brightest lighting conditions.
An advanced onboard Limiter offers distortion-free signal up to 120 dB SPL, cleanly recording the loudest of bands.
A Low-cut filter also helps eliminate pops and unwanted low frequency rumble.

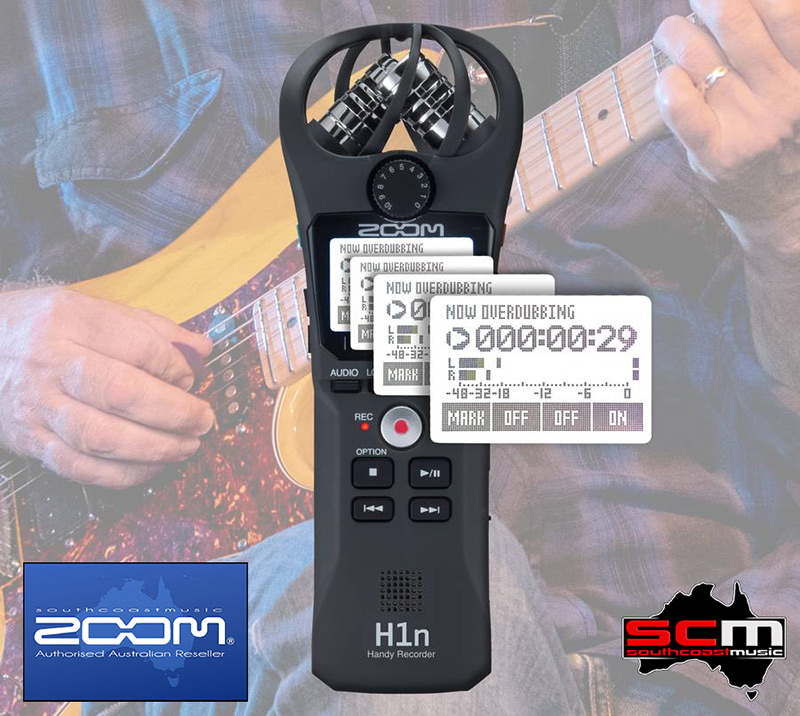

The overdub function lets you add layers of audio, allowing for richer and fuller sounding recordings.
Transcription Made Easy
The H1n’s Playback Speed Control lets you transcribe music, interviews and other types of recordings without altering pitch.
Don’t Miss the Moment
You can also set the H1n to auto-record, pre-record, and self-time, making sure you always capture the moment.

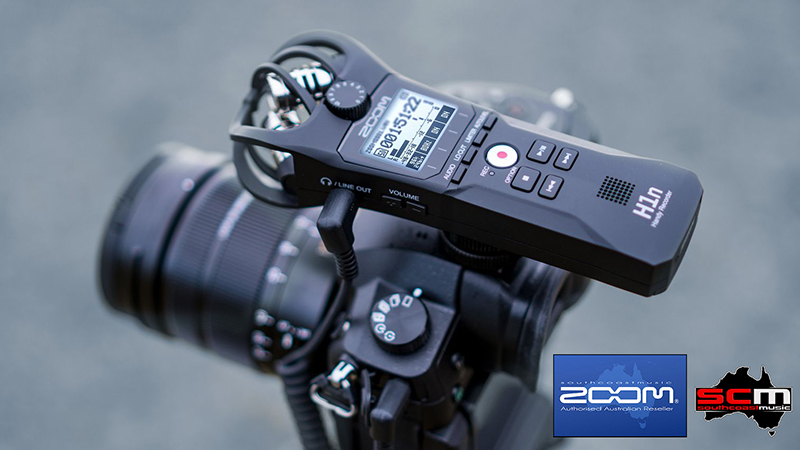

Mark and Sync
New tone generator makes it easy to calibrate your H1n and camera audio levels.

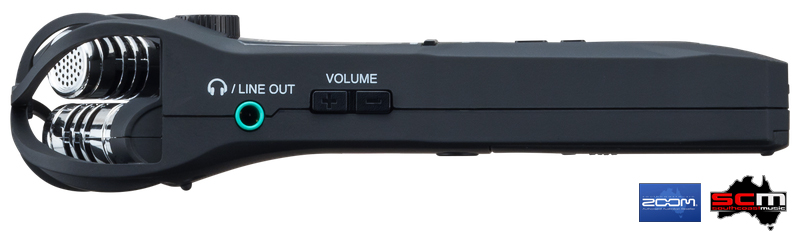

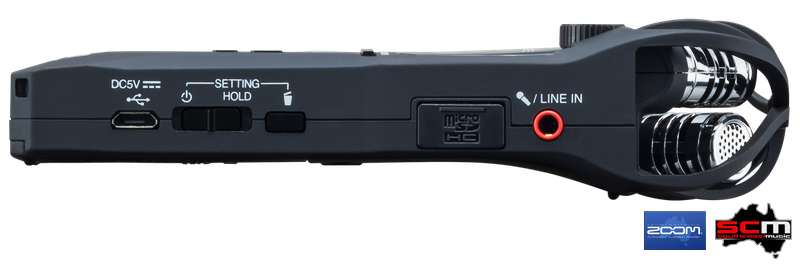

A 3.5mm (⅛”) stereo mic/line input lets you record with your external microphones or other sound sources, and supplies plug-in power (2.5 volts). Connect headphones via the 3.5mm (⅛”) headphone output with dedicated volume control. You can also use the H1n’s built-in speaker to listen to your recordings.
The H1n’s USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. It also allows the H1n to be used as a USB microphone and a microSD card reader.
Professional Recording Software – FREE!
The Zoom H1n comes with free download licenses for Steinberg’s Cubase LE music production software and WaveLab LE audio editing software.
Where will the Zoom H1n take you?
Accessories included with the H1n
• 2 AAA Batteries
• Steinberg Cubase and WaveLab LE
• Quick Start Guide
