AUTHENTIC SOUNDS. COMPLETE VERSATILITY.

THE ZOOM B3N

Intuitive Multi-Effects Processor for Bassists

The Zoom B3n lets you create your own original sound, no matter the kind of music you play. This bass pedal has countless amp, cabinet, and stompbox effects that you can use on stage or in the studio. Plus, its editing features are simple enough that you can tweak your sound even when you're on the road.

67 Built-In Stompbox Effects for Monster Tone

The B3n is pre-loaded with 67 high-quality stompbox DSP effects, including 19 dynamics and filter effects, 15 overdrive and distortion effects, 17 modulation effects, 11 delay and reverb effects and more. (Download a list of the B3n pre-loaded effects)

Faithful Bass Amp and Cabinet Emulations

The B3n’s newly created emulations include five classic bass amps and five matching cabinets that have been modeled to sound and respond like the real thing. To adjust the sound of each model, simply use the B3n’s parameter knobs just as you would with analog gear. You can also download even more amp/cabinet combinations via ZOOM Guitar Lab software.

Create Custom Effects Chains

Chain up to seven effects, amps, and cabinets together simultaneously in any order you like to experiment with and create new sounds. You can also store up to 150 of your custom effects chains as patches.

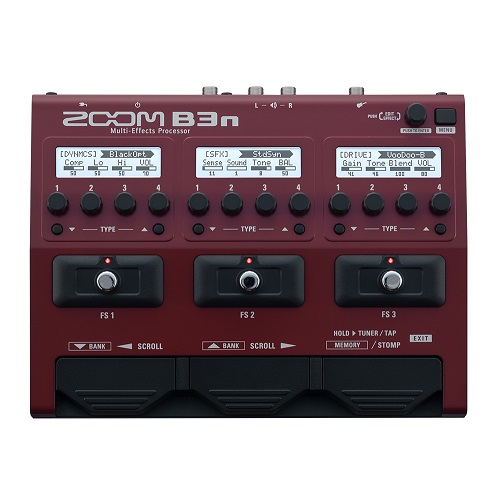

Master Your Sound

The B3n’s simple layout and controls make for

faster and more intuitive editing. Its

three independent LCD screens display your entire

effects chain at a glance, and its tactile knobs

and switches give you effortless control over

adding, editing, deleting, or changing the

order of effects.

Just Plug It In and Play

There’s no complex setup with the B3n—just

plug in and start playing. Thanks to its 68

built-in rhythm patterns, the B3n is great for

both practice and solo performances. With the

onboard looper, you can record and overdub

phrases up to 80 seconds long, creating textured

layers of sounds using the effects of your choice.

The looper, rhythm patterns, and delay effects

can all be synchronized using a tap tempo function.

And a built-in chromatic tuner lets you bypass the

currently selected patch while tuning, or mute

the signal altogether.

Connect, Perform, and Record

It’s easy to integrate the B3n into any live performance or studio rig. In addition to a standard 1/4” input, there's an auxiliary 1/8” stereo input for connecting smartphones or music players. There’s also a dedicated headphone jack for practice, and dual outputs for mono or stereo L/R connection to bass amps, PA systems, and audio interfaces. Add the ZOOM FP02M expression pedal via the dedicated control input for real-time control over effects parameters.

ZOOM Guitar Lab Software

Our free ZOOM Guitar Lab Mac/Windows software lets you to manage your patches and download new effects and amp/cabinet emulators via a USB connection to your B3n. It includes both a Patch Manager for effects chains and an Effects Manager, with a simple graphic user interface that provides point-and-click control over re-naming or re-ordering your custom patches.

Features At A Glance

67 high-quality stompbox DSP effects

5 amp emulators plus 5 cabinet emulators

Free ZOOM Guitar Lab Mac/Windows software

allows for downloading of additional effects

and patch management

Use up to 7 effects simultaneously, chained

together in any order

3 stompbox switches allow effects to instantly

be brought in and out

Intuitive user interface with 3 independent

editing displays

Onboard chromatic tuner with dedicated footswitch

supports all standard bass tunings, including open

and drop tunings (tuner range of 435 - 445 Hz)

Stereo/mono looper allows recording of up to

80 seconds of phrase recording

68 built-in rhythm patterns that can be used in

conjunction with the looper

Tap Tempo with dedicated footswitch

Auxiliary stereo input jack for connection of

smartphones and music players

Dual output jacks for connection to bass amps

and mono or stereo PA systems

Dedicated stereo headphone output

Control input for ZOOM FP02M external

expression pedal

SPECS

Effect types: 80

(70 DSP effects, 5 amp emulators, 5 cabinet emulators)

Number of simultaneous effects : 7

Number of user banks/patches: 150

Sampling frequency: 44.1 kHz

A/D conversion: 24-bit with 128x oversampling

D/A conversion : 24-bit with 128x oversampling

Signal processing : 32-bit

Frequency characteristics : 20 – 20 kHz +1 dB, -3 dB (10 kΩ load)

Display: 128 x 32 dot-matrix LCD (x3)

INPUTS

INPUTS: Standard monaural phone jack

Rated input level: -20 dBu

Input impedance (line): 470 kΩ

AUX IN: Stereo mini jack (3.5 mm)

Rated input level: -10 dBu

Input impedance (line) : 10 kΩ

OUTPUTS

Output R: Standard monaural phone jack

Maximum output level: Line +5 dBm

(with output load impedance of 10 kΩ or more)

L/Mono/Phone:

Standard stereo phone jack

(combined line/headphone)

Maximum output level:

Line +5 dBm

(with output load impedance of 10 kΩ or more)

Headphones 15 mW + 15 mW (into 32 Ω load)

Equivalent input noise:

-119 dBu

Noise floor (residual noise) :

-100 dBu

Control input:

Zoom FP02M

Power:

AC adapter DC9V (center minus plug), 500 mA

(ZOOM AD-16)

USB:

USB MIDI USB Micro-B

Dimensions:

181 mm (D) X 234 mm (W) X 58 mm (H)

7.1 in (D) X 9.2 in (W) X 2.2 in (H)

Weight:

1.28 kg / 2.8 lbs

* 0 dBm=0.775 Vrms
