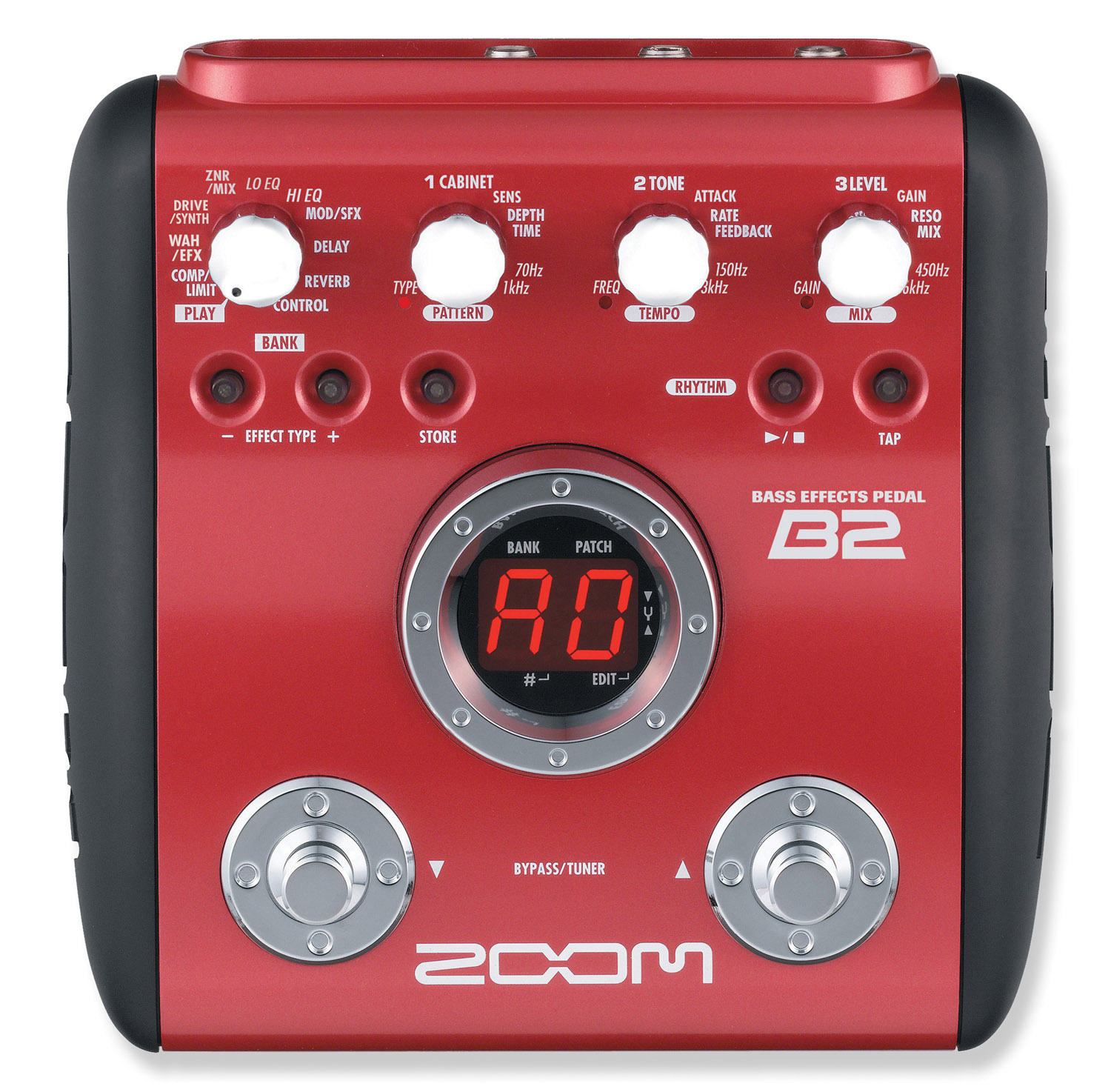

BASS GUITAR EFFECTS PEDAL
for B2 Series
96 kHz sampling brings out the original sound character of the bass
The fundamental frequencies of an electric bass are about 40 to 600 Hz, but harmonics go all the way up to the ultrasonic frequency range. Many conventional pedal effects make the low end sound thin and lifeless. This usually is not only because of insufficient response in that range, but also because the harmonics are not handled properly.
The B2 series from ZOOM makes such problems history. 24-bit resolution and a sampling frequency of 96 kHz ensure signal processing power on a par with the best rack-mount devices. The dynamic, wide-range bass signal retains its full impact, and the result is clear, powerful sound that remains a distinct presence also when playing in a band ensemble.
? ZOOM original 32-bit DSP Z FX-3
The heart of any multi-effect device is its processor and decoder section. ZOOM elevates performance to the next level with its newly developed Z FX-3 chip. 32-bit architecture means outstanding accuracy and smooth and detailed signal processing. Fine nuances of fingering and touch come through without any deterioration.
? Great bass amp sounds for any situation
Sophisticated bass amp modeling allows you to adjust parameters such as speaker cabinet characteristics and low-range response in three levels. Get the dynamic, high-impact bass sound of a large cabinet even with flat-response systems. This is handy when using headphones or studio monitors, or when playing through a small combo amp or other bass amp with low output power. Alternatively, turn the cabinet effect off and use only the characteristics of the amp head. Create your very own bass amp sound and get it whenever and wherever you want, even when using a series of different bass amplifiers on stage.
? Six-band linear EQ or two-band parametric EQ offer total flexibility
Center frequency allocation and filter slopes of the built-in six-band EQ are optimized for bass guitar. Peaking type filters in the middle range 150Hz, 450Hz, 1kHz, 3kHz are augmented by shelving type filters at the low and high end 70Hz and 6kHz . This ensures the shortest possible route from creative idea to actual sound. Further flexibility is offered by the possibility to switch to a two-band parametric EQ, for delivering a pin-point boost or cut. The B2 series lets you really take control.
? Two bass synthesizer types with different filtering and internal waveforms
The full-fledged bass synthesizer uses the built-in DSP sound source triggered by the input bass sound. Select from a choice of three waveform settings sawtooth, square, PWM and create sounds of incredible power and resonance. Two types of filtering with excellent tracking are also available, for playing melodious solo phrases.
? 13 different bass amp and stomp box modeling choices
By digitally simulating the clipping action of analog devices such as tubes and diodes, the unit faithfully duplicates the characteristics of tube amps and vintage effects. Going far deeper than the superficial tone , this also includes elements such as depth and dynamics. Freely adjust the mix between drive sound and original sound to create deep distortion while your bass delivers a real punch.
13 AMP STOMP BOX MODELS
AMPEG SVT + 810E Marshall 1992 Super Bass + 1935A
All-tube bass amplifier incorporating original Super Valve Technology. Thanks to its gutsy drive sound, it has remained one of the most popular bass amps ever.
A vintage tube amp featuring the characteristic warm and mild Marshall overdrive sound. Great for the active bass player leading a band.
SWR SM-900 + Goliath
Acoustic 360 + 301
By mounting a tweeter in the speaker cabinet, this bass amp succeeds in combining a rich low end with clear highs. Very popular among slap bassists.
Solid-state amp embraced by many top bassists of the seventies and eighties. Boomy midrange and warm low end are its major features.
Hartke HA3500 + 4.5XL
Fender Bassman 100 +
4 x 12 cabinet
With its aluminum-cone speaker, this bass amp achieves clear reproduction over the entire range. Famous for its great response and transparent sound that preserves the original character of the instrument. Tube amplifier with silver faceplate from the early days of the electric bass. Creates a vintage bass sound that is a perfect match for melodious phrases.
Trace Elliot AH-500 +
Tube Preamp ZOOM original
500W high-power bass amp with a firm core and distinct contours. Makes those phrases flow easily and smoothly for Rock and Pop.
Simulates a high-class tube preamp such as used in recording studios. Creates fat and supple sound.
SANSAMP BASS DRIVER DI
Ibanez TS9 Tube Screamer
This amp simulator recreates the characteristic drive feeling of a tube device. A favorite for live performance and for recording. Stomp box often used as booster for tube amps. Produces natural overdrive sound that clearly brings out those picking nuances.
MXR BASS D.I.+
The ODB-3 is designed specifically for bass and belongs to the famous Boss OD series of distortion stomp boxes. It produces aggressive distortion characterized by flashy highs.
Preamp incorporating a pedal type DI function for the clean channel and distortion channel. The B2 series simulates the sound of the distortion channel with its solid body.
Dallas-Arbiter FUZZ FACE
Fuzz pedal famous for its unique round face design. Vintage fuzz sound fueled by the destructive energy of germanium diodes.
*Manufacturer names and product names mentioned in this table are trademarks or registered trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation.
? 47 high-quality effects implemented with 32-bit processing
Nine modules dedicated to aspects such as dynamics, drive, modulation, and ambience offer a total of 47 effects. Because the effects are optimized for the bass guitar range, you can freely create various sonic scenarios without impairing the bass foundation of the ensemble sound. A limiter compressor lets you control peaks and ensure that levels are matched. The auto wah and resonance filter are indispensable for playing that funky sound. The octaver creates a wave of energy in the ultra-low range. The defret effect gives you the sweet tone and smooth transients of a fretless bass. Other features include delay with settings to 5000 ms and hold function, tape echo for that vintage feeling, crystal-clear stereo chorus, as well as flanger, phaser, pitch shifter and many other studio-class effects.
? The right tools for the job — editing controls with analog feel
The three rotary knobs let you tailor three different parameters at the same time. Control sensitivity, attack, and level for the compressor effect, or time, feedback, and mixing level for the delay effect. It s like having an array of stomp boxes ready for action. In play mode, the three knobs adjust cabinet character, drive effect tone, and patch level. This lets you quickly match the unit s performance to the bass guitar amp or room acoustics. Delay time and modulation rate settings can be made directly via the intuitive TAP key input.
? 40 ready to use preset patches for stage and studio
The unit comes preprogrammed with settings for duplicating well-known amps and stomp boxes, settings that are modeled on the signature sound of famous bass players, as well as totally original ZOOM effect sound creations. Right out of the box, you can enjoy professional-quality bass guitar sound. And for creative leeway, a user area capable of storing another 40 patches is also provided.
? World s fastest patch change speed: 8 ms
The annoying slight muting interval of old when switching patches has been all but eliminated. With its record-setting speed of 0.008 seconds, the B2 series never misses a beat. For example, when changing from backing sound to a solo, you no longer need to press the switch slightly in advance. Simply push the foot switch and start playing the solo phrase. No more fear of losing the rhythm when making patch changes.
? Built-in auto-chromatic tuner also supports multi-string bass
The bass guitar tuner can be called up instantly by pushing two foot switches together. High-brightness LED indicators make the note readout easy to see also on a dark stage. The calibration range is 435 to 445 Hz, and mute tuning without sound output is also possible.
? ZNR keeps playing pauses really quiet
The built-in ZOOM Noise Reduction ZNR provides optimized performance for bass guitar. While minimizing any alteration of the original sound, ZNR shuts out unwanted noise in the playing pauses. Even the tails of long sustain notes come out beautifully, with natural release.
? Integrated drum machine with PCM sound sources
Realistic drum sounds derived from PCM sources are arranged in a variety of rhythm patterns for different musical genres. The 40 rhythm variations include the steady 8-beat of Rock and Pop, funky 16-beat, a Jazzy 4-beat, and many more choices. Rhythm training on your bass guitar has never been more convenient.
? Optional foot switch allows versatile remote operation
When the optional foot switch FS01 is connected, tap tempo input of settings such as delay time and modulation rate is possible. Other selectable functions include bank switching, drum machine start stop, and delay hold on off switching.
Foot Switch FS01
Unlatch and normally close type
? Ultra low noise design: 120 dB S N ratio and -100 dB noise floor
Specifications such as a signal-to-noise ratio of 120 dB and noise floor of -100 dB demonstrate a level of performance that is unsurpassed in this class. Background noise is a thing of the past, leaving the unit free to produce only its own superbly transparent sound. Especially when using reverb effects such as Hall, Room, or Spring, the low noise floor combined with 96 kHz sampling and 32-bit processing results in utterly transparent sound.
? Sturdy metal chassis and rubber damping for superior toughness and durability
The combination of a solid metal chassis with shock-absorbent rubber damping ensures that the unit can stand up to the rigors of use on stage. Take it on the road or into the studio, the B2 series will not let you down. Its pleasing rounded shape, large bezel protecting the display, and chrome-plated switches and knobs are proof that there is no need to sacrifice good looks for toughness.
COMP LIMIT Module 01. COMPRESSOR
WAH E FX Module 03. AUTO WAH
04. AUTO RESONANCE FILTER
08. RING MODULATOR
10. PEDAL WAH
DRIVE SYNTH Module 11. AMPEG
12. SUPER BASS
17. TRACE ELLIOT
18. TUBE PRE
22. MXR BASS D.I.+
23. FUZZ FACE
24. STANDARD SYNTH
25. SYNTH TALK
26. MONO SYNTH
ZNR MIX Module 27. ZNR
LOW EQ Module 28. LOW EQ
29. LOW PARAMETRIC EQ
HIGH EQ Module 30. HIGH EQ
31. HIGH PARAMETRIC EQ
MOD S FX Module
33. STEREO CHORUS
35. PEDAL PITCH
39. TAPE ECHO
40. PITCH SHIFTER
41. HARMONIZED PITCH SHIFTER
DELAY Module 42. DELAY
43. PING PONG DELAY
REVERB Module 45. HALL REVERB
46. ROOM REVERB
47. SPRING REVERB
