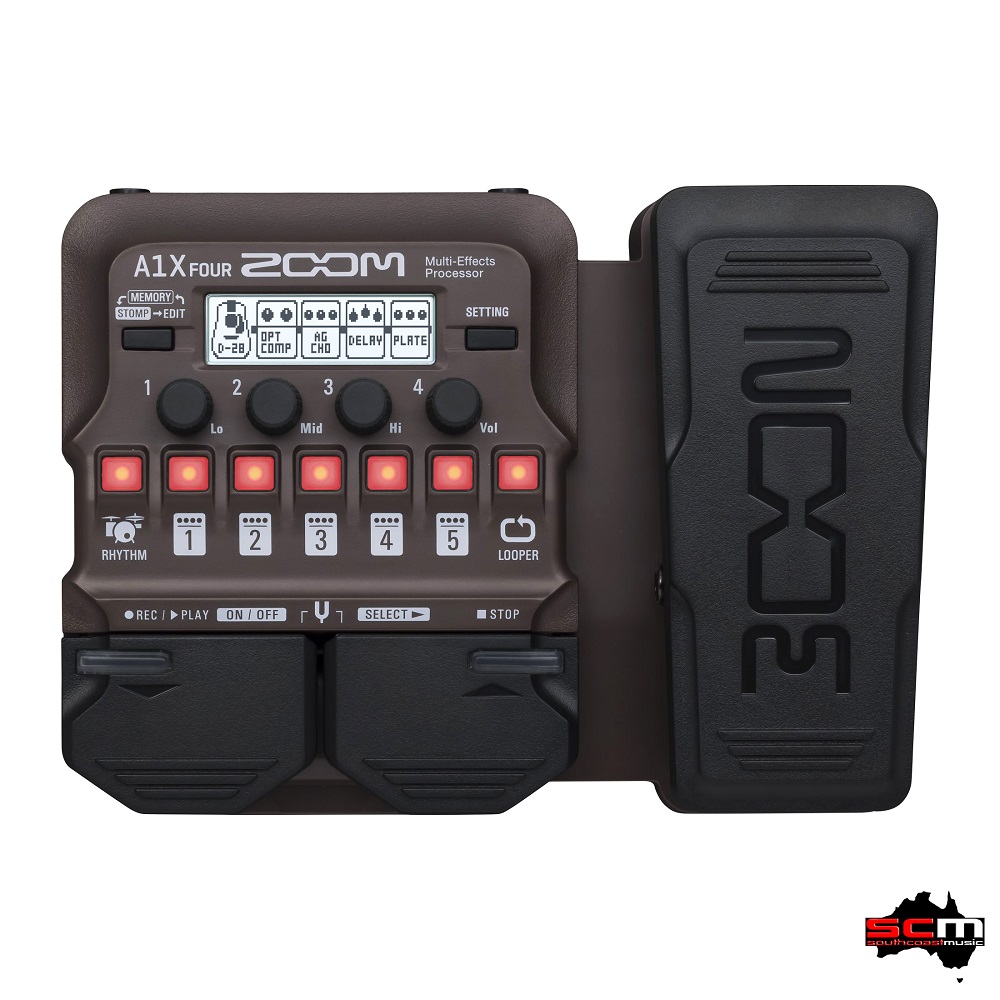

ZOOM A1X FOUR
Acoustic Instrument Multi-Effects Processor with Expression Pedal, Acoustic Modeling, Looper and Rhythm Section for Guitar, Saxophone, Trumpet, Violin, Harmonica, Electric Ukulele, Upright Bass and more!
• A1X FOUR offers over 80 built-in effects
• Dedicated effects for acoustic guitar, saxophone, trumpet, violin and harmonica
• Up to 5 effects can be used simultaneously, chained together in any order
• 50 memory locations for storing user-created patches
• 68 built-in rhythm patterns tailored for unplugged styles of music
• Onboard chromatic tuner
• No More Feedback ~ The Anti-Feedback Filter detects and cuts frequencies that cause potential feedback.
• Drums & Percussion Included ~ Choose from 68 rhythm patterns designed for acoustic music including Samba, Reggae, and Jazz. Play along with a variety of time signatures.
• Looped In ~ The built-in looper can record up to 30 seconds and allows you to create dynamic, multi-part arrangements – record up to 30 seconds / 64 beats of CD-quality audio with seamless start & end times.
The ZOOM A1X FOUR is preloaded with over 80 effects, including more than 35 new groundbreaking effects designed and engineered for acoustic instruments.
Add a multitude of warm and rich tones to your guitar. From live “unplugged” performance sounds to the finger-playing style of country and blues, there’s so much to choose from. Gorgeous effects and acoustic guitar modeling will take your instrument to places it’s never been before.
Add depth and dimension with acoustic emulators and modeling. Refresh your instrument’s natural sound, allowing your live performances to sound just like your studio recordings. Select and hone in on the tone of your favorite guitar make and style.
The A1X FOUR make it easier than ever to process the sound of your own Acoustic Guitar. With a selection of 15 factory presets (plus 13 more available as free download on Guitar Lab), you can select your favorite AG MODEL, D-28 for example, and recover instantly the sound character of that renowned and original body shape.
IR (Impulse Response) technology is used to capture the sonic fingerprint all guitar shapes and bodies available on the A1XFOUR and via Guitar Lab. Each AG MODEL can be adjusted with 4 parameters (Gain, Bass, Mid, Treble) to control the volume and refine the audio output of your modeled sound.
In Patches you can also set the AG Pickup Selector (AG PU SEL) to match your guitar’s pickup type (Piezo or Magnetic) and add a specific EQ modeled on a variety of dedicated processors.

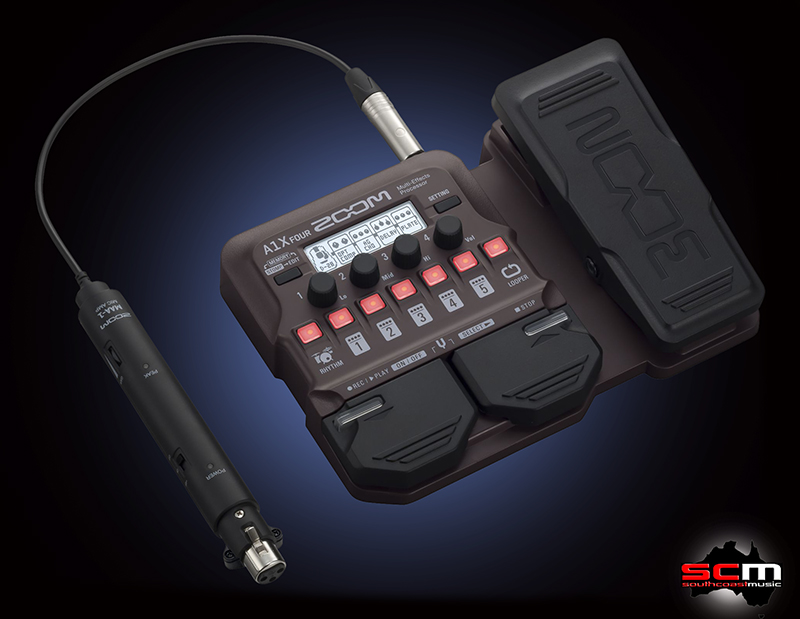

Additionally, thanks to two performance modes, a hassle-free microphone connection with included MAA-1 Mic Amp and an anti-feedback filter; you can expect great-sounding, professional-level sound during your live performances.
ZOOM A1X FOUR SPECIFICATIONS
• Type: Acoustic Instrument Multi-FX with Expression Pedal
• Processing: Digital
• EQ: 3-band EQ, Graphic EQ
• Effects: 80 x Effects, 5 x Simultaneous; Dynamics, Filters, Overdrives, Amp Models, Cabinet Models, Modulation, Delay, Reverb, SFX
• Presets: 50 x User Patches, Acoustic Body Modeling, Sax, Trumpet, Violin, Harmonica
• Rhythm Patterns: 68 x Rhythm Patterns
• Looper: 30 seconds
• Instrument Input: 1 x 6.35mm (1/4″)
• AUX Input: 1 x 3.5mm (1/8″)
• Mic Input: 1 x XLR via the MAA-1 adapter(included)
• Outputs: 1 x 6.35mm (1/4″) line out/headphones
• MIDI I/O: USB
• USB: 1 x Type Micro-B
• Bypass Switching: Buffered
• Software: Zoom Guitar Lab Patch Editor (Mac/PC)
• Power Source: 9V DC power supply (sold separately) / USB powered (some functions limited)
• Batteries: 4 x AA batteries; MAA-1: 2 x AA batteries
• Dimensions: H52mm x W216mm x D156mm
• Weight: 610g (without batteries)
