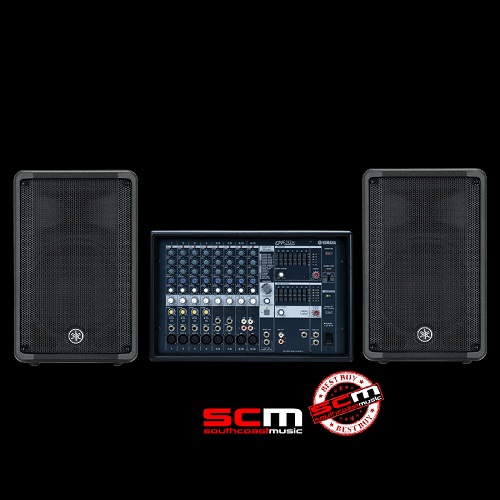

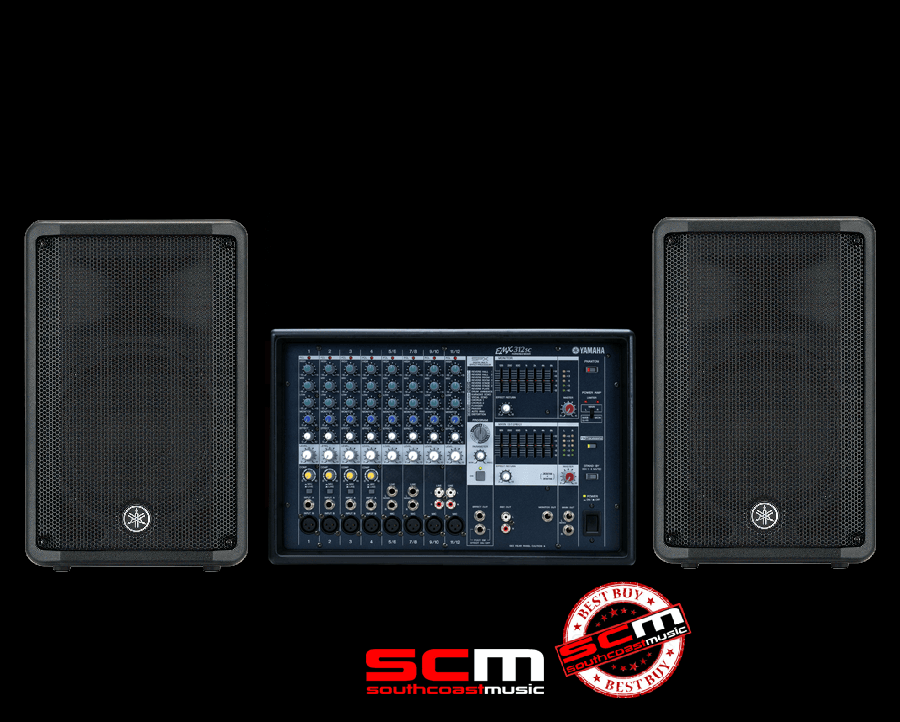

YAMAHA PA SYSTEM
EMX312SC POWERED MIXER + CBR10 BASS REFLEX SPEAKER CABINETS x 2
- Portable 600W RMS 12-channel Powered Mixer
- Digital FX and on-board Compressors
- 2 x CBR10 10″ 700w 2-way Bass Reflex Speaker Cabinets
- 2 x 20′ (6m) speaker cables
Ask any sound-engineer in the know and they will confirm that Yamaha basically wrote the book on portable PA. Yamaha’s EMX series powered mixers deliver class leading features, performance and reliability night after night. Yamaha’s speaker technology is equally well respected. This is a Portable PA system that is ready to rattle some cages! Our package includes a Yamaha EMX312SC mixer matched with a pair of Yamaha CBR10 loudspeakers and speaker cables for a comprehensive sound solution that won’t break the bank.
THE SYSTEM…
YAMAHA EMX312SC 600W RMS 12-CHANNEL POWERED MIXER
Yamaha’s EMX-312SC has got to be one of the biggest selling powered mixers in recent history and with good reason.
- Dual 300W Class-D Digital Amplifiers
- Amps can function in stereo or as separate mono channels for mains and monitors

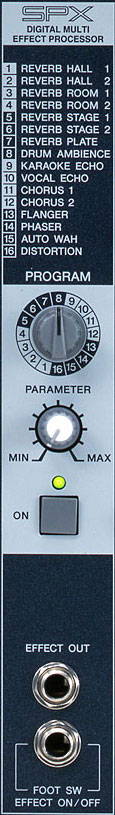

- 16 SPX Digital FX including Reverb, Echo, Chorus, Flanger, Phaser and Distortion
- FCL (Feedback Channel Locator) system
- Seven Band Graphic Equalisers for Main and Monitor Power Channels
- Graphic EQ Frequencies: 125Hz, 250Hz, 500 Hz, 1kHz, 2kHz, 4kHz, 8 kHz, +12/-12 dB

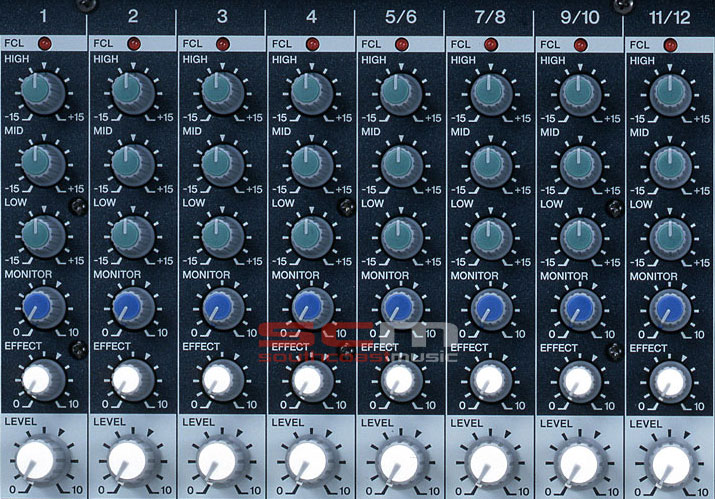

- Three Band EQ per input channel
- Total of 12 inputs in a very versatile configuration:
o channels 1 through 4 are mono microphone or line inputs
o channels 5/6 and 7/8 function as mono mic/line inputs or stereo line inputs
o channels 9/10 and 11/12 are stereo line inputs. - Switchable Phantom Power
- Single knob compression on first 4 channels
- YSP (Yamaha Speaker Processing)
- speakON and 6.3mm (1/4″) phono jack speaker output connectors
- Lightweight 10kg
- Five Year Warranty
With more than enough power for small to medium sized venues, the EMX312SC is the ideal solution for clubs, schools, houses of worship, karaoke and more!

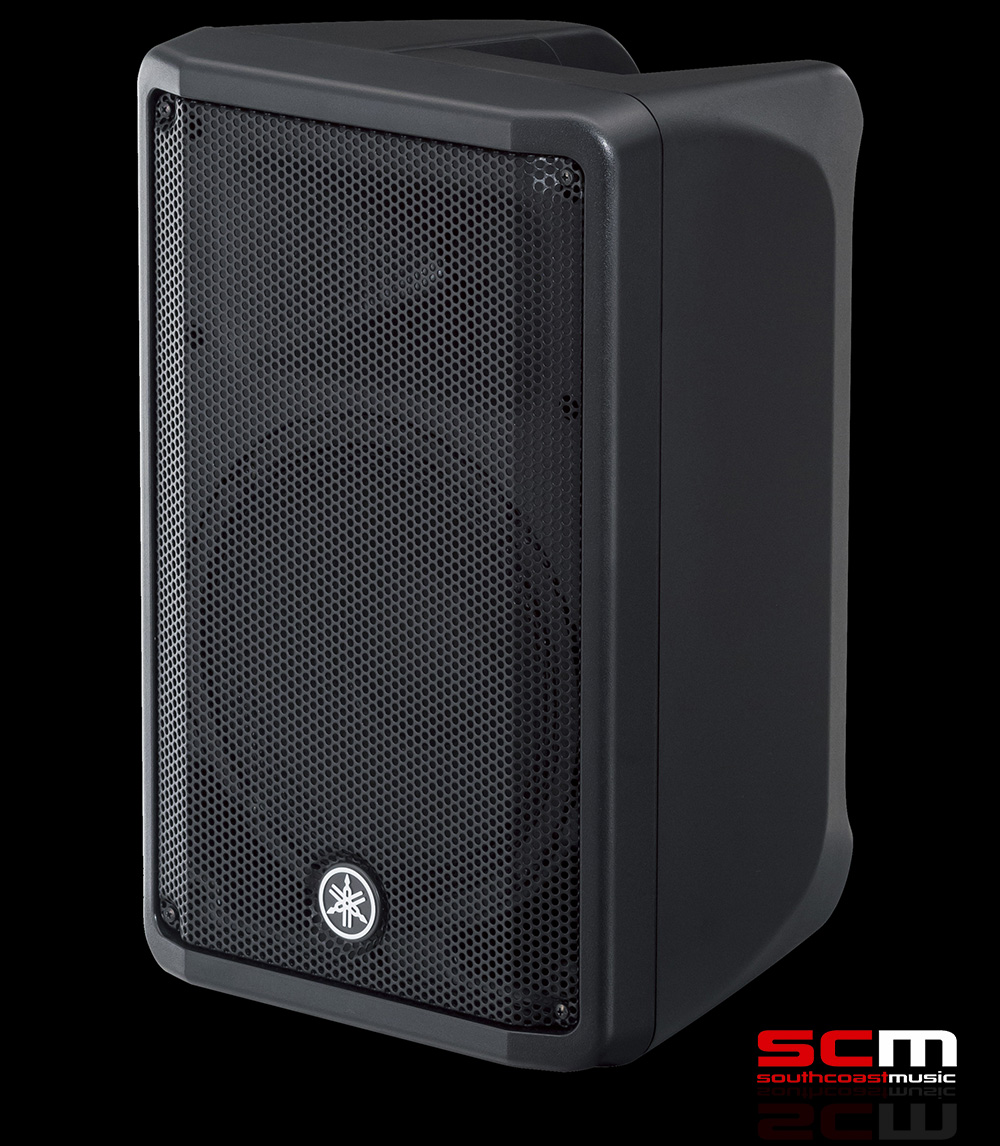

YAMAHA CBR10 BASS REFLEX SPEAKERS
The YAMAHA CBR10 is a new passive loudspeaker developed by adopting the extensive knowledge of speaker design and acoustic technology that Yamaha has accrued over a long and celebrated history of making speakers of every kind.
Yamaha’s Audio Engineering Design Team have combined a meticulous materials selection process with thorough customisation of the audio components along with a fresh and innovative approach to speaker design to deliver a high-power, high-definition audio solution in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring or rigged configurations.
While the CBR10 is the most compact model in the CBR series, it delivers astonishing power for its size and weight making the CBR10 ideal for both portable and installed applications. Solo and Duo acts in particular will love this lightweight and incredibly portable powerhouse. Combining a pair of CBR10s with the EMX312SC powered mixer is a recipe for portable PA perfection!
YAMAHA CBR10 700W SPEAKER CABINET FEATURES
- Passive loudspeaker
- Speaker Type: 2-way Speaker, Bass-reflex Type
- Frequency Range (-10dB): 50 Hz – 20 kHz
- Nominal coverage (H): 90º
- Nominal coverage (V): 60º
- Components (LF): 10″ Cone, 2″ Voice Coil (Ferrite Magnet)
- Components (HF): 1″ Voice Coil, Compression Driver (Ferrite Magnet)
- Crossover Frequency: 2.8 kHz
- Power Rating (Noise): 175W
- Power Rating (PGM): 350W
- Power Rating (Peak): 700W
- Nominal Impedance: 8 Ohm
- SPL Sensitivity (1W; 1m on axis): 94 dB
- SPL Peak (Calculated): 123 dB

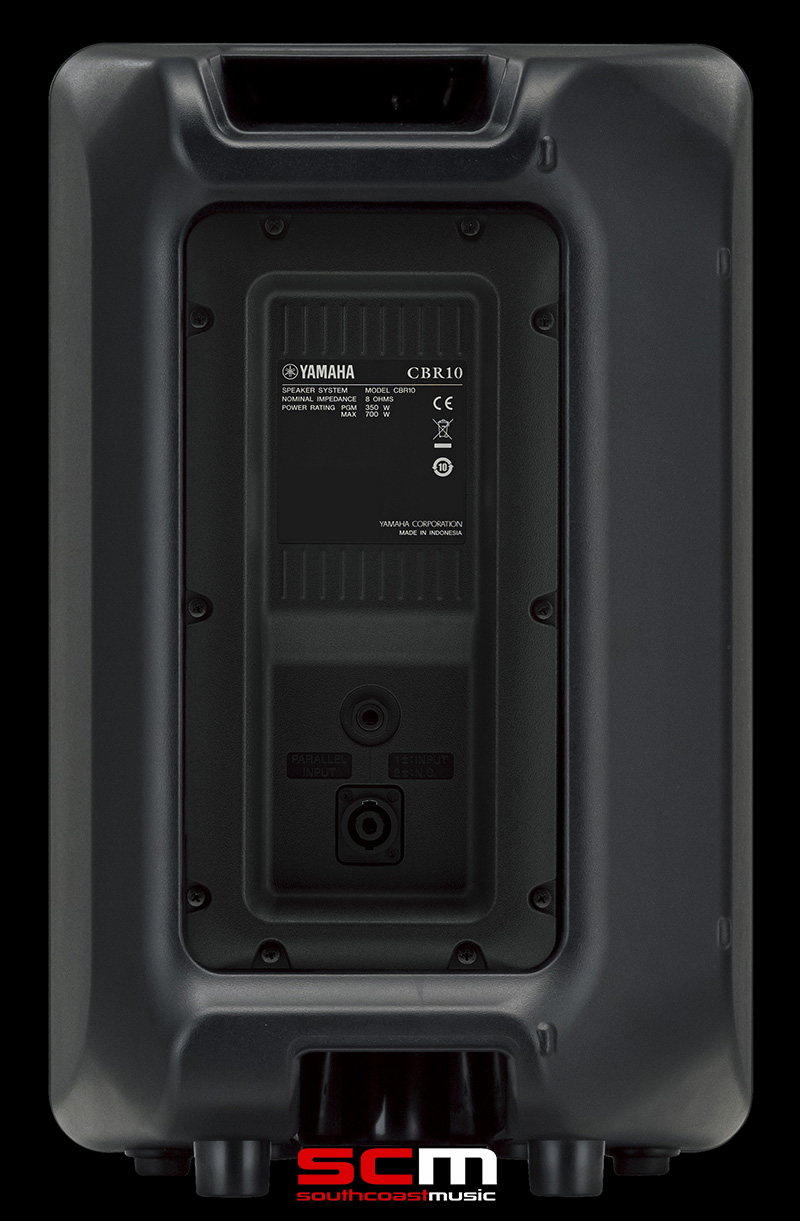

- I/O Connectors: 1 x 6.3mm (1/4″) phono jack, 1 x SpeakON
- Cabinet Material: High-Impact moulded Plastic
- Lightweight 9.4kg cabinet
- HF-protection circuit prevents tweeter damage due to excessive signal levels
- FIVE Year warranty
CABLES
When you buy your new Yamaha PA system from southcoastmusic we will include a pair of 6 metre long 6.3mm (1/4″) to 6.3mm Speaker Cables.
