TURBOSOUND MILAN M15
- 2 way full range powered loudspeaker for portable PA and install applications
- 1,100 Watt power featuring KLARK TEKNIK Class-D technology
- KLARK TEKNIK Digital Signal Processing for total system control
- High excursion 15″ low frequency driver with low mass voice coil for improved transient response
- 1″ high temperature dome compression driver with extended high frequency reproduction
- Converging elliptical waveguide provides wide dispersion and excellent pattern control
- Speech/music switch featuring optimised equalisation for voice or music applications
- Switchable 100 Hz high pass filter for subwoofer integration
- Lightweight composite enclosure with black finish
- Rugged powder coated perforated steel mesh grille
- Dual angle pole mount for accurate audience coverage
- Multiple internal rigging points for installation applications
- 10-Year Warranty Program*
- Designed and engineered in the U.K.

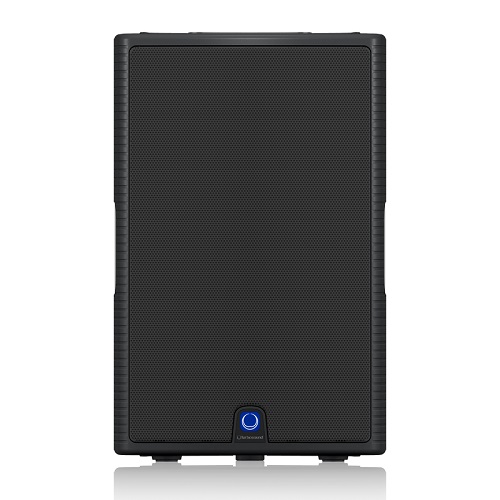

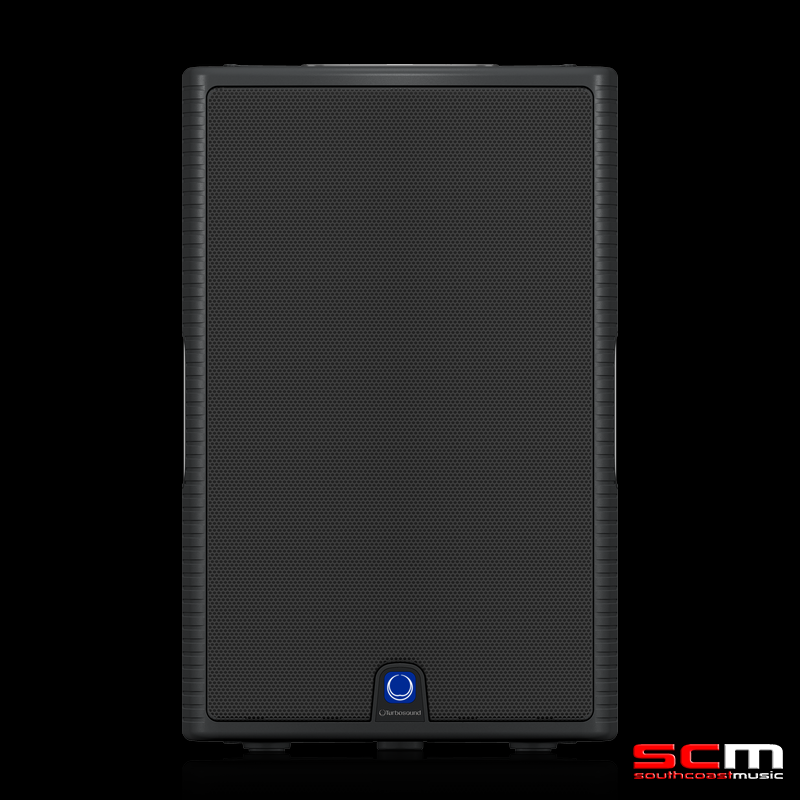

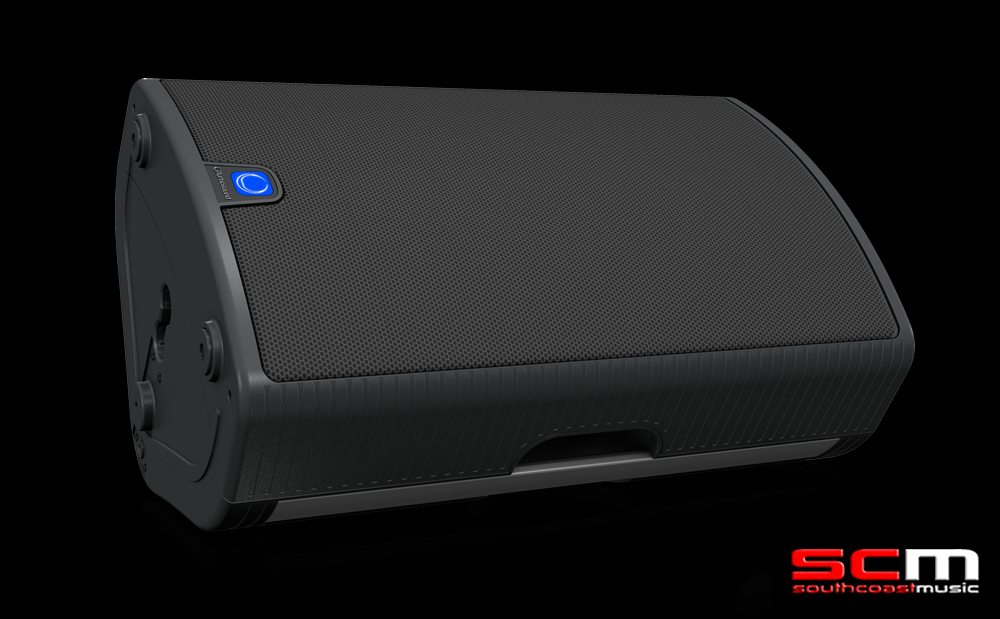

MILAN M15
The 1,100-Watt full range MILAN M15 is a portable 15″ two-way powered loudspeaker featuring: two independent input channels with Mic and Line Inputs, selectable via a Mic/Line switch; a two-band master EQ (Bass, Treble); intelligent Limiting; and a Mix Out function for connecting additional powered loudspeakers for easy system expansion.
Designed for both portable and permanent install applications, the M15’s discrete inputs are each equipped with balanced, combination ¼ ” jack/ XLR connectors and a Level control, making them ideally suited for a wide range of music sources, from low-impedance microphones, acoustic guitars and keyboards – to mp3 players and mixing consoles.
KLARK TEKNIK DSP – the Secret to Superb Sound
KLARK TEKNIK is recognised worldwide as one of the most prestigious British audio companies, with a 40-year pedigree and a TEC Lifetime Achievement Award to back it up. The Company has designed and manufactured products for world-class artists, and their legendary DN780 reverb processor is considered by leading audio engineers around the world as the industry standard. Check out their website to learn more about KLARK TEKNIK’s legendary heritage.
TURBOSOUND is proud to incorporate custom-engineered KLARK TEKNIK DSP into their products. From the instant your signal enters the MILAN M15, the built-in DSP (Digital Signal Processor) takes over, ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the M15’s 24-bit DSP analyses the incoming signal and intelligently applies specific filters to actually improve the sound quality.
This is very much like having an audio engineer monitoring the input and output signals of each M15, dialing in the perfect EQ and constantly making subtle adjustments to the crossover, compressor/limiter and more – which all adds up to significantly better sound.

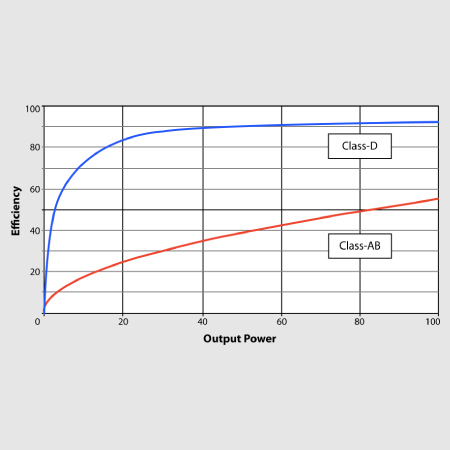

Class-D – Massive Power, Perfect Sound
Thanks to our revolutionary Class-D amplifier technology, we are able to provide enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks.
This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment. The lightweight Switch Mode Power Supply, coupled with the industry-leading KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalisation and sophisticated limiting functions, ensuring optimal performance and long-term reliability.
1100 Watts of Output Power
With its 1,100 Watts of pristine digital output delivered through separately-powered drivers, courtesy of true bi-amping (two amplifiers per speaker system), the M15 delivers high-resolution sound that brings out the best in your music. While some brands apply simple passive crossovers, which inaccurately separate the frequency spectrum and degrade driver performance, TURBOSOUND has gone the extra distance – driving each woofer and tweeter with a separate amplifier for impeccable signal integrity.
Custom-Engineered Drivers
Powerful, high-efficiency Class-D amplifiers and Switch Mode Power Supply technology coupled with state-of-the-art DSP functionality sounds very impressive – but what about the part of the system you actually hear? TURBOSOUND are known internationally for making some of the best-sounding speaker systems in the world and not surprisingly, they take our drivers (woofers and tweeters) very seriously. Their LF and HF drivers are designed specifically for each application – it is what sets TURBOSOUND apart from the competition. When you buy a MILAN M15 loudspeaker, you can rest assured the high-excursion 15″ LF and 1″ high-temperature dome compression drivers inside have been engineered to perform flawlessly in conjunction with every other element for truly professional results.
TURBOSOUND MILAN 15 SPECIFICATIONS
- LF Driver: 1 x 15″
- HF driver: 1 x 1″

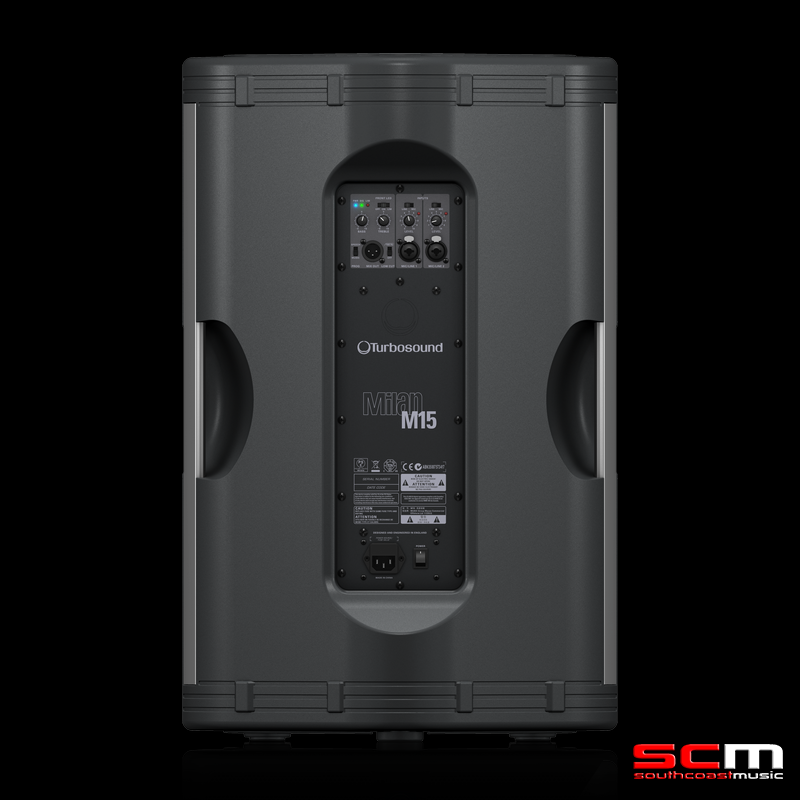

- Connectors: Mic/Line input: combo jack/female XLR wired pin 2 hot
- Mix out: male XLR wired pin 2 hot
- Power Connection: IEC mains connector with integrated fuseholder
- Controls: Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off
- Frequency Range: 45 Hz–18 kHz ±3 dB
- Frequency Range: 40 Hz–20 kHz –10 dB
- Dispersion @-6 dB pts: 90° H x 60° V
- Max SPL (peak): 130 dB
- Equalisation Bass: ±6 dB @ 80 Hz
- Treble: ±6 dB @ 12 kHz
- Power Indicator LED: Blue
- Signal Indicator LED: Green
- Limit Indicator LED: Red
- Clip Indicator LED: Red
- Amplifier Protection: Full short circuit, open circuit, thermal
- Max Output Power LF: 1000W
- Max Output PowerHF: 100 W
- Input Sensitivity: Mic: -32 dBu; Line: -2 dBu
- Input Impedance Mic: 560 O unbalanced, 1 kO balanced; Line: 20 kO unbalanced, 40 kO balanced
- Power Supply Voltage (Fuses) Australia: 240 V~, T4.0 AH250V
- Power consumption@ 1/8 max power: 140 W
- Rigging options: 6 x M10 threaded internal rigging points
- Construction: Injection-moulded polypropylene enclosure. Recessed carrying handles. Integral dual-angle pole mount socket. Powder coated galvanised
- perforated 46steel mesh grille with foam backing
- Dimensions: H719 x W457 x D368 mm (28.3 x 18 x 14.5″)
- Net weight: 27.7 kg (60.9 lbs)
