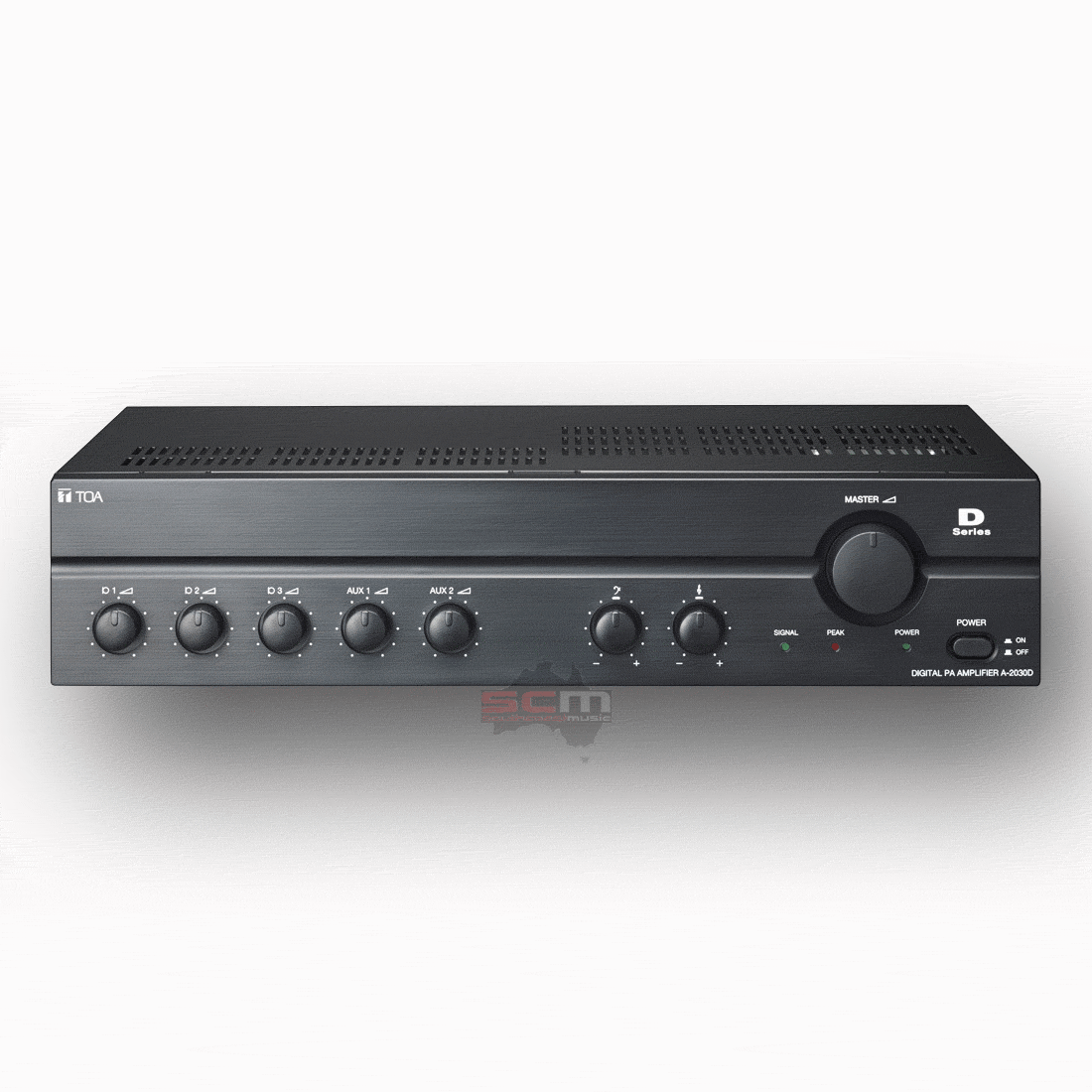

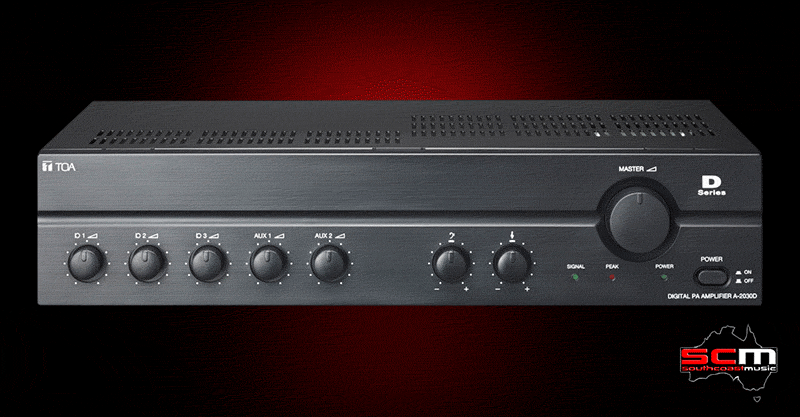

TOA A2030D 30 watt Mixer Amplifier 100V line outputs
• 30 watts RMS output
• Ultra efficient low energy consumption Class-D power amplifier
• 3 microphone inputs, 2 AUX inputs and 1 recording output
• Speaker output of constant voltage distribution system (100 V)
• Independent tone control of boost and cut type for both high and low frequency
• MIC 1 with phantom power and mute function
• Current limiter to prevent damage due to current overload
• Excess heat limit to protect the transistor and power transformer
• Finished with a scratch and fingerprint-resistant surface for easy handling
The TOA A2030D is a high performance mixer power amplifier suited for broadcasting paging or background music in a variety of applications. The beauty of the TOA A2030D is in its elegamnt design and simplicity of operation making it perfect for houses of worship, sporting clubs, schools, offices, shops and factories.
Equipped with balanced microphone inputs for better isolation from external noise, the A2030D is suitable for AC operation and features 30 watts RMS power output. The Digital power amplifier is an ultra-efficient design with a low 12 watt power consumption and will power an array of 100V line speakers/horns.
The TOA A2030D is finished with a scratch and fingerprint-resistant surface for easy handling as well as quick volume control with master volume knob.
TOA A2030D Specifications:
• Power Source: 240VAC 50Hz
• Rated Output Power: 30 watts RMS
• Power Consumption: 12 W
• Distortion: < 1% at 1 KHz, 1/3 rated power
• Inputs: MIC 1 – 3: -60 dBV, 600 Ω, balanced AUX 1, 2: -20 dBV, 10 kΩ, unbalanced, RCA Pin Jack
• Outputs: Rec out: 0 dBV, 600 Ω, unbalanced, RCA Pin Jack
• Speaker Outputs: 100 V, screw terminal
• Phantom Power: DC + 21V (MIC 1)
• S/N Ratio: > 60 dB
• Tone Control: Bass: +/- 10 dB at 100k Hz Treble: +/- 10 dB at 10k Hz
• Muting: MIC1 – Mutes other signals by 0 – 30 dB attenuation
• Indicators: Power signal, peak level
• Panel Finish: ABS resin black
• Case Material and Finish: Steel plate, black
• Dimensions: 420 x 100.6 x 280.3 mm
• Weight: 4kg
