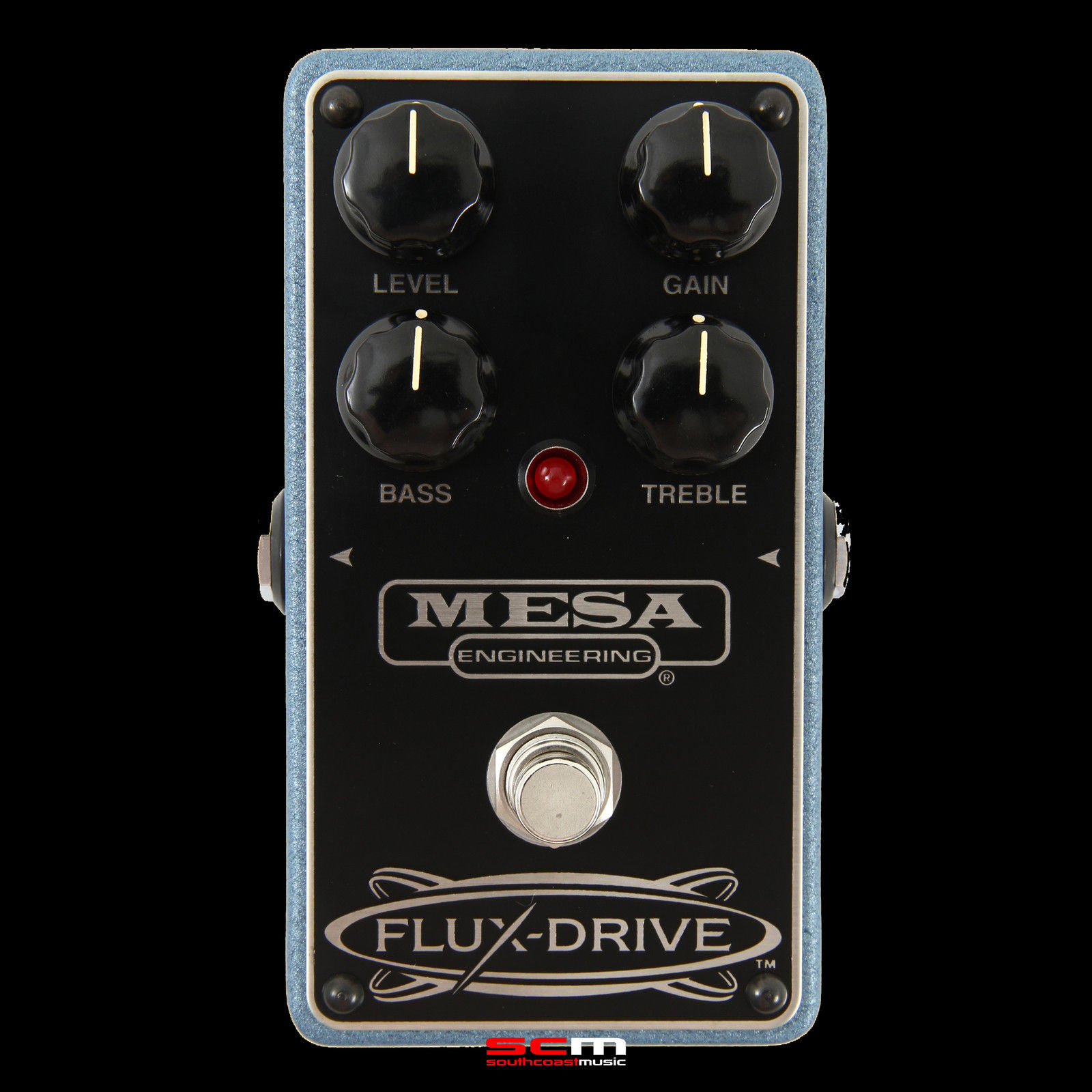

MESA/Boogie Flux-Drive™

o Mesa/Boogie Flux-Drive Overdrive Pedal

o Overdrive Pedal with True Bypass Switching

o Gain Control

o Bass/Treble EQ Controls with +/-12db of Boost/Cut

o Up to 20dB of Signal Boost

o Killer Tone!

Why It Boogies:

"The Flux-Drive is more of a high-gain preamp than it is either a stand-alone distortion or overdrive box. Its well-tuned level, gain, bass and treble circuits give the user immense control over the tone and gain structure, making it easily the most versatile of Mesa's pedal lineup."Eric Kirkland - Guitar World

The FLUX-DRIVE™ is the overdrive pedal for those who want more of all the best things from an overdrive!

Mesa-BOOGIE designed the FLUX-DRIVE™ to produce more liquid gain and enhanced sustain that easily feeds into rich harmonic overtones making it incredibly addictive and inspiring to play, whether into a clean amp channel or especially to enhance a crunch or higher gain channel!

It also offers a more complete tone-shaping network with individual Treble and Bass controls. This architecture makes the FLUX-DRIVE a more complete preamp with added versatility beyond that of most overdrive pedals.

mesa-BOOGIE Flux-Drive™ Product Features:

o Designed and Handcrafted in Petaluma, California, USA

o True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss

o Gain Control allows you to dial in the perfect amount of vocal-overdrive, dynamic to sustaining

o Master Level Control provides a variable range of signal boost up to +20dB

o Bass & Treble Controls provide +/- 12dB of EQ boost or cut for exceptional tone shaping

o On/Off Status LED

o 9V Battery Powered or Externally Powered (optional) via External Power Jack Input

o Input & Output Jacks (Nominal Input -20dB)

mesa-BOOGIE Flux-Drive™ Specifications:

o Dimensions: W73mm x D122mm x H58mm

o Weight: 364g with battery, 319g without battery

o True Bypass Switching

o Battery Type: 9VDC (one)

o Power Consumption (Current Draw): 9VDC/15mA

o External Power Supply (Not Included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTRE plug polarity and a jack plug size of 2.1mm x 5.5mm

o Input Impedance: 1M Ohm (500k Ohm minimum)

o Output Impedance: 10k Ohm
