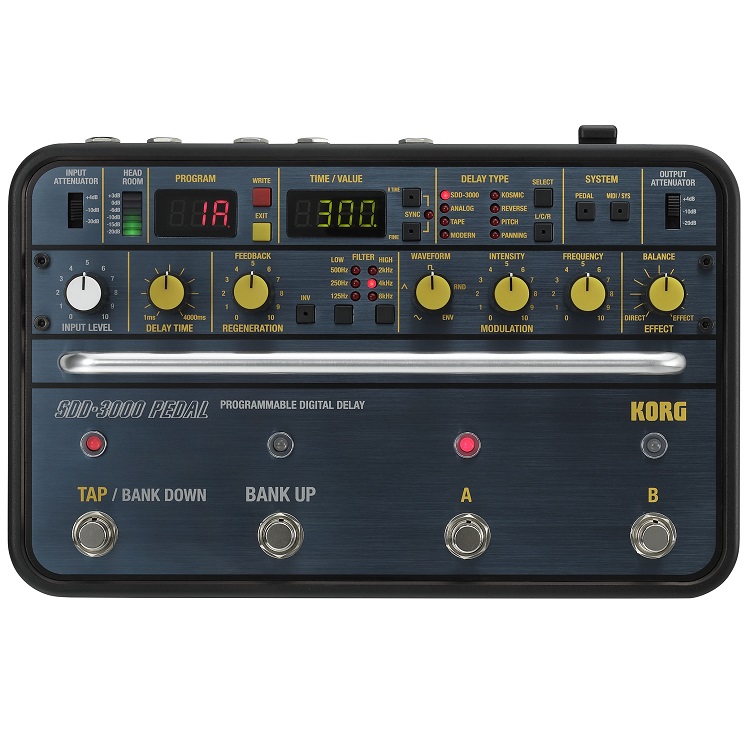

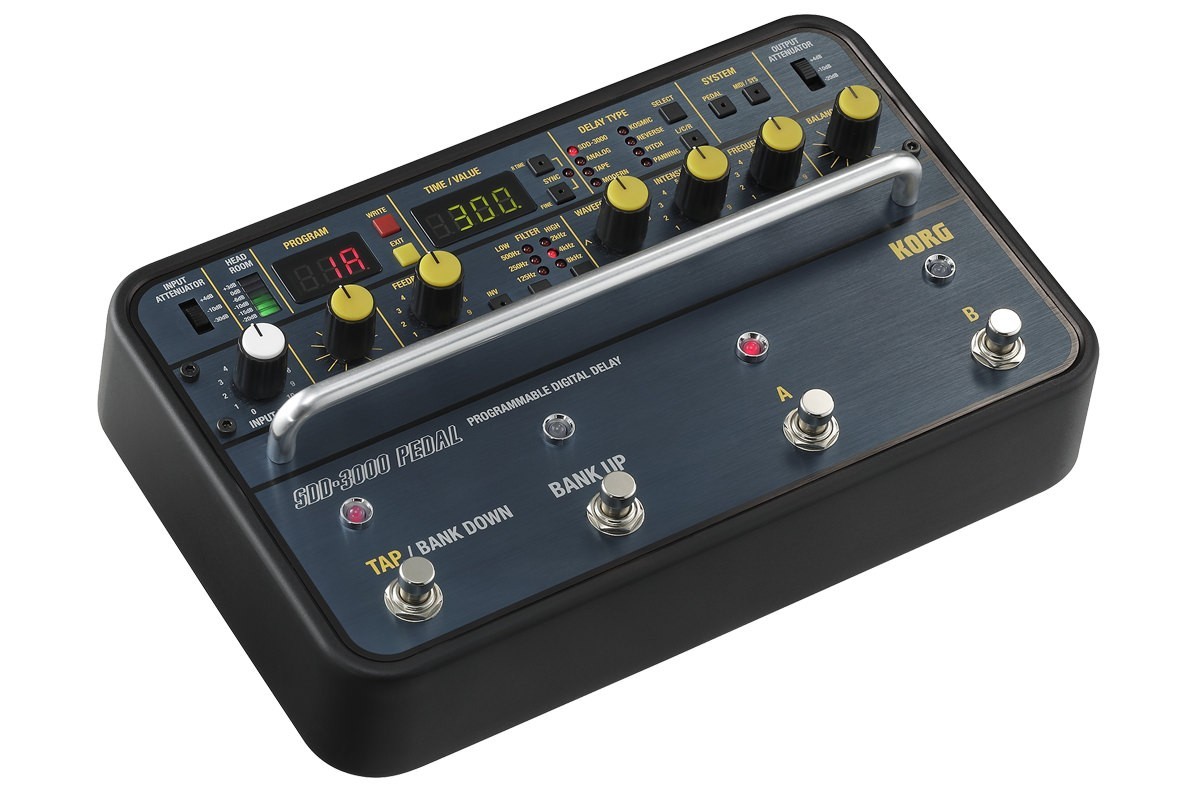

Korg SDD-3000 Programmable Digital Delay Electric Guitar FX Pedal (SDD3000)
Stereo Delay Pedal with 1ms to 4,000ms Delay Time
“That” delay sound you’ve been waiting for is now here. The classic sound of the SDD-3000 digital delay, reborn as a pedal!
The rack-mounted SDD-3000 which appeared in 1982 was a classic digital delay that dominated the world thanks to its peerless sonic character. The classic delay effect that’s central to the guitar sounds in world-class rock bands owe a great deal to the SDD-3000, which has been the driving force behind numerous famous songs over the years.
The SDD-3000 PEDAL packs all of the SDD-3000’s functionality into a convenient pedal unit. Featuring a pre-amp with ample headroom, a filter circuit that modifies the feedback sound, and modulation waveforms that allow a diverse array of delay effects, it covers all of the SDD-3000’s important elements. In addition to specifications that will satisfy SDD-3000 users, it provides many new functions such as eight delay types, long delay times up to 4,000 milliseconds, selectable modulation waveforms, stereo input/output, and MIDI compatibility. The user interface has also been updated for dramatically improved ease of use.
- All features of the legendary SDD-3000 digital delay, packed into a pedal unit.
- Eight distinct delay types including SDD-3000, Analog, Tape, Modern, Kosmic, Reverse, Pitch and Panning.
- The preamp that defined the sound of the SDD-3000 is faithfully reproduced.
- Selectable filters that alter the sound of the delay repeats.
- Choose from five types of modulation waveforms that modulate the delay time. You can also create waveforms that interpolate between two types, and make fine adjustments to the waveform.
- Use special sound-shaping techniques such as flanging, chorus, vibrato, doubling, and Doppler effects.
- A wide range of delay times is available, from 1 millisecond to long delays with a maximum of 4,000 milliseconds.
- Sync mode lets you specify the delay time in terms of 11 different note values ranging from whole notes to 32nd notes.
- A total of 80 programs (40 banks x 2 channels) can be saved.
- LCR function lets you create multi-tap delay effects.

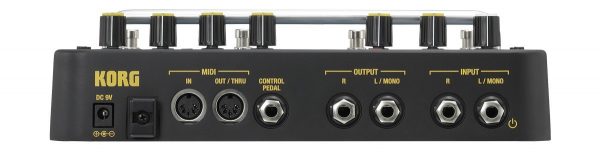

- MIDI connectors are provided, allowing you to trigger program changes from an external device, or to transmit program data as a bulk dump to and from other units.
- Seamless bypass and program changes allow you to retain the reverberant sound when switching sounds.
- Reliable true bypass design
- An optional expression pedal can be used to control multiple effect parameters simultaneously
Eight different delay types give you a wide range of variety
At the core of your sound-shaping, you can choose from a total of eight delay types. In addition to the original SDD-3000 delay, there’s also analog delay modeling that provides the warmth of a BBD device, a TAPE model that reproduces a tape echo, the clean MODERN delay sound, the fantasy-like KOSMIC delay which adds pitch change to the reverb sound, REVERSE which plays the delay sound backward, PITCH, which places a pitch shifter placed before the delay, and PANNING which controls the stereo position of the output. A wide range of delay effects can be produced with this single unit. In addition, there’s a ducking function that lets you apply delay only when the input is at a low level.
A faithful replication of the original SDD-3000’s preamp
The SDD-3000’s premp was one of the most important factors in cementing its status as a legendary effect unit. The thick, present sound that distinguished the SDD-3000 was a decisive aspect of its character. Many musicians even used the SDD-3000 in a bypassed state simply as a preamp in order to obtain this effect. It goes without saying that the SDD-3000 PEDAL faithfully replicates this preamp. Ample gain and headroom are maintained, and input/output attenuators are also provided. This lets you set the input/output levels optimally when using this unit, meaning that in addition to guitar, you can use it with a variety of instruments including analog synthesizers, keyboards, and vintage effects, and be confident that the SDD-3000 PEDAL’s potential will be maximized for any audio source.
Two bypass modes to suit your needs
For the bypassed sound, you can choose either the direct sound that has been routed through the cherished preamp circuit and adjusted by the gain setting to an appropriate level, or you can choose a true bypass sound where relay switches connect the signal lines directly without passing the signal through any electronic circuitry whatsoever, thus ensuring that the unit does not affect the sound in any way.
A filter circuit that modifies the feedback sound
A low-cut/high-cut filter can be applied to each delay repeat, allowing a range of effects from a natural softening to a harder emphasis. By using the inverter to reverse the phase of the delay sound, you can also obtain flanging effects.
Five types of modulation waveforms to shape various delay parameters
One of the characteristics of the SDD-3000 was its modulation capability. This function dramatically expands the range of delay sounds, giving you even more expressive power. The SDD-3000 PEDAL gives you a choice of five new waveforms, allowing you to generate complex sounds such as chorus, vibrato, doubling, wow/flutter, and Doppler effects, giving this unit a variety of possibilities that go beyond the bounds of existing delay effect units.
Sync mode lets you specify the delay time as a note value
In addition to using the tap function to set the delay time intuitively, you can use the Sync mode to specify the setting in terms of a note value. You can choose from 11 note values ranging from whole notes to 32nd notes, making it easy to set up those signature sounds of world-class rock bands known for their delay sounds, such as a rhythmic “dotted eighth note” delay.
LCR function lets you obtain multi-tap delay effects at a single touch
The LCR function provides right, center, left, and feedback settings that can be set independently, letting you obtain multi-tap delay effects instantly.
A total of 80 programs (40 banks x 2 channels) can be saved
A total of 80 different delay sounds that you’ve created on the SDD-3000 PEDAL can be saved as programs. It comes from the factory with 40 stage-ready programs already housed in the internal memory, ranging from standard delays to more unique types, as well as song presets that recreate the delay sounds used in famous songs.
Use an optional expression pedal to enhance your performance
By using an optional expression pedal, you can easily control various parameters of the delay with your foot. You’ll be able to control multiple parameters simultaneously, so that even complex delay effects can be obtained effortlessly.
- Effect Type
- SDD-3000, ANALOG, TAPE, MODERN, KOSMIC, REVERSE, PITCH, PANNING
- Input (0dBm=775mV)
- Input Level:
- -30dBm, -10dBm, +4dBm
- Max (Clip) Level (VR at 5):
- -13dBm, +7dBm, +21dBm
- Output (0dBm=775mV)
- Output Level:
- -20dBm, -10dBm, +7dBm
- Max (Clip) Level:
- -3dBm, +7dBm, +21dBm
- Frequency Response (Typ.)
- 10Hz ～ 20kHz:
- +0.5dB, -1dB (Direct)
- 10Hz ～ 17kHz:
- +0.5dB, -3dB (Effect: This frequency response is only when DELAY TYPE is set to SDD-3000.)
- Dynamic Range (Typ.)
- 110dB (Direct) A-Weighted
94dB (Effect) A-Weighted
- Low CUT
- Turn over freq: 125Hz, 250Hz, 500Hz
Roll off: -3dB/OCT, -3dB/OCT, -3dB/OCT
- High CUT
- Turn over freq; 8KHz, 4KHz, 2KHz
Roll off; -6dB/OCT, -6dB/OCT, -6dB/OCT
- Frequency range: 0.0 (stop), 0.01Hz ~ 15Hz
Waveform (SINE, TRIANGLE, SQUARE, RANDOM, ENVELOPE)
Delay type: KOSMIC, PITCH : -12 ~ 0 ~ +12, Others: 0.0 ~ 10.0
- Delay Time
- 1 ~ 4,000 milliseconds 1 millisecond step (With full bandwidth)
(W x D x H)
- 260 × 170 × 77 mm / 10.24″ x 6.69″ x 3.03″
- 1.5 kg/3.31 lbs
- Power Supply
- AC Adapter (DC 9V)
- Current Consumption
- DC 9V 600mA
- DC9V AC Adapter
- XVP-10: Expression/Volume Pedal
EXP-2: Foot Controller
