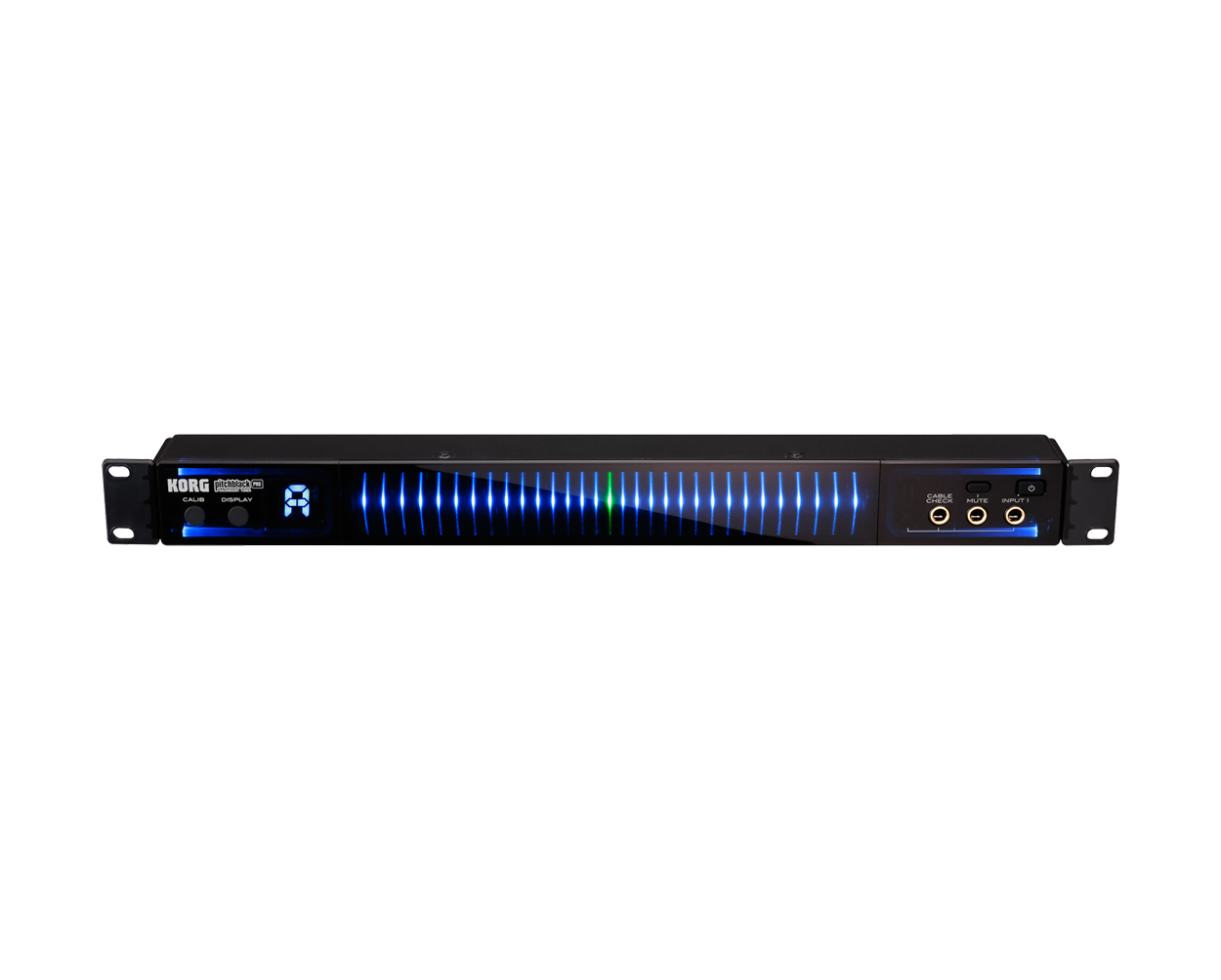

KORG PITCHBLACK PRO RACKMOUNT ELECTRIC ACOUTSIC GUITAR & BASS TUNER PB05
19-inch 1U rack-mount tuner for guitar/bass
Large “3D” visual meter for unprecedented visibility
Lightweight, thin, removable; not limited to rack installation
Three meter display modes: regular, strobe, and half-strobe
Cable Checker warns of broken or shorted cables
Buffered output minimizes any change in audio quality
Mute function lets you tune silently
SPEC
Tuning: 12 Note Equal Temperament
Detection Range: E0 (20.60 Hz) ~ C8 (4186 Hz), Sine Wave
Calibration Range: A4 = 436-445 Hz (1 Hz steps)
Detection Accuracy: +/- 1 cent
Display Mode: Regular / Strobe / Half Strobe
Input impedance: 1 M Ω (when tuner is on)
Connectors:
Front Side:
Input 1 (mono 1/4″ jack) for Guitar /Bass
Mute (mono 1/4″ jack)
Cable Check (mono 1/4″ jack)
Rear Side:
Input 2* (mono 1/4″ jack)
*This jack is intended for use with the line output from an effect unit or keyboard; this cannot be used simultaneously with the INPUT 1 jack Output (mono 1/4″ jack) DC IN (9V)
Power supply: DC 9V, AC adapter(KA350)
Dimensions: (W x D x H)
Tuner Only: 430 x 49 x 44 mm (including protrusions)
When used with the rackmount adapters: 482 x 49 x 44 mm(including protrusions)
Weight: 363 g / 12.80 Oz. (Tuner Only)
