GSR250B WNF Gio Series Ibanez

Electric Bass Guitar Walnut Finish

A guitar doesn't have to cost a bundle to sound good. The GIO series was

developed for players who want Ibanez quality in a more affordable

package. Not only do they look and play better than everything else in

their price range, but their rigorous inspection, set-up and warranty is

the same as Ibanez's more expensive models.

GSR250B Gio Ibanez

FINISH

Walnut Flat

SPECIFICATIONS

neck type GSR4 Maple neck

body Mahogany body

fretboard Rosewood fretboard w/White dot inlay

fret Medium frets

number of frets 24

bridge B10 bridge (19mm string spacing)

neck pickup Std. neck pickup (Passive)

bridge pickup Std. bridge pickup (Passive)

equaliser EQB-IIID 3-band eq

factory tuning 1G, 2D, 3A, 4E

string gauge .045/.065/.085/.105

hardware color Black

NECK DIMENSIONS

Scale 864mm/34"

a : Width at Nut 38mm

b : Width at Last Fret 62mm

c : Thickness at 1st 20.5mm

d : Thickness at 12th 22mm

Radius 305mmR

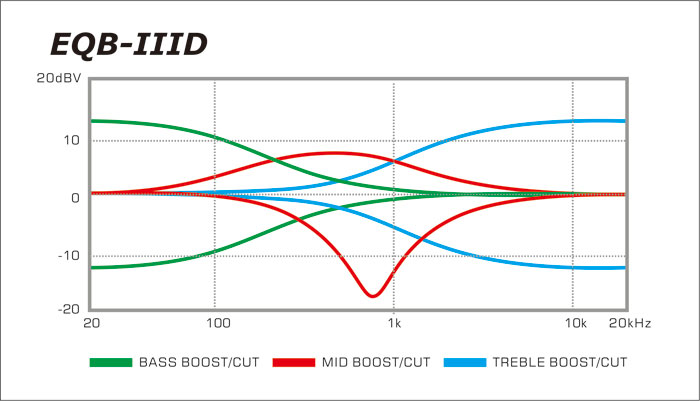

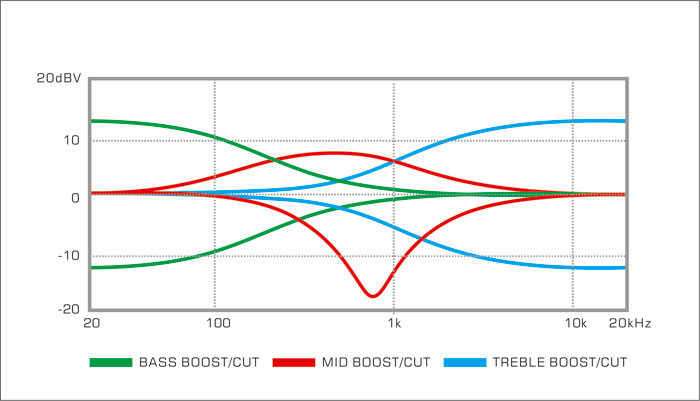

EQ IIIB Frequency Response

Ibanez Custom Electronics 3-band eq

Ibanez Custom Electronics 3-band eq is an improvement on the concept of simple EQ control. Boost and cut of Mid Control are each centered on a slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.

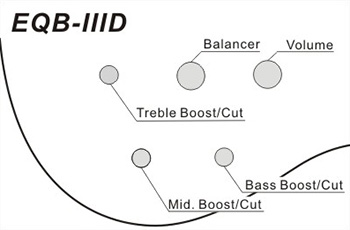

CONTROLS
