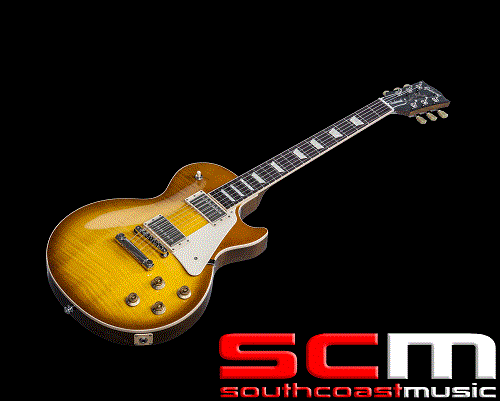

Gibson Les Paul Traditional Electric Guitar Honey Burst 2017

This item is no longer available – listing for reference purposes only

SKU: LPTD17HBNH1 Categories: ,
  • Vintage style keystone tuners: Vintage style and precise tuning
  • Nylon nut: Historic, dense, precise
  • One-piece rosewood fingerboard: Greater sonic depth and luscious playing feel
  • Rounded neck profile: The true feel of a Les Paul from the golden era
  • AA-grade flamed maple top: Beautiful top with just the right amount of flame for an authentic vintage look
  • Mahogany body without weight relief: The way Les Paul were originally made
  • Burstbucker 1 and 2 humbuckers: Authentic Gibson tones
  • Hand-wired with orange drop capacitors: 2 volumes, 2 tones and 1 toggle switch, wired the way it was done historically for authentic golden era sounds
  • Nickel plated wired ABR bridge and aluminum Stop Bar: Vintage look and sustain with a wired ABR and an aluminum Stop Bar
  • Classic Gibson hardshell case: Stylish and protective
  • Top Wood Species: Maple
  • Pieces: 2
  • Grade: AA
  • Binding: Cream
  • Back Wood Species: Mahogany
  • Binding: Cream
  • Materials Used
  • Glue: Franklin Titebond 50
  • Body Contour Carve: Classic
  • Neck Wood Species: Mahogany
  • Truss Rod: Les Paul
  • Profile: Standard
  • Thickness at Fret 1: .818″
  • Thickness at Fret 12: .963″
  • Average Weight: 1 lbs 6.4 oz
  • Peg Head
  • Type: SP1-B
  • Inlay: Mother of Pearl
  • Peg Head Binding: None
  • Logo: “Gibson”
  • Silkscreen: Gold “Les Paul Model”
  • Headstock Angle: 17 degrees
  • Neck Fit
  • Joint Angle: 5.0 degrees
  • Joint Angle Tolerance: 0 deg 0 min 15 sec
  • Type: Mortis and Tenon
  • Adhesive: Franklin Titebond 50
  • Material: Nylon
  • Width: 1.695″
  • Nut Slots:
    E: .046″
    A: .036″
    D: .028″
    G: .016″
    B: .011″
    e: .009″
  • Fingerboard Wood Species: Rosewood
  • Shade: Dark
  • Fingerboard Details
  • Radius: 12″
  • Frets: 22
  • Nut/End of Board: 1.695″ @ nut, 2.260″ @ end of board
  • Scale: 24.75″
  • Binding: Cream
  • Side Dots (Color): Black
  • Fingerboard Inlay Style: Trapezoid
  • Material: Acrylic
  • Dimensions: Large – 0.66″ x 1.17″, Small – 0.24″ x 1.56″
  • Average Weight: 4.16 oz
  • Finish: Honey Burst
  • Color Code: HB
  • Surface Texture: Smooth/ Hi Gloss 90 Sheen Lacquer
  • Filler: Walnut
  • Sealer: 1-1.5 mils
  • Top: Honey Burst
  • Top Coat: Hi Gloss Lacquer / 90 Sheen, 7-8 mils
  • Scraped: Fingerboard Sides, Body and Nut
  • Pickups: BurstBucker 1 BurstBucker 2
  • Winds/Coil: Screw side/Slug side: 5000 / 5200 5300 / 5500
  • Material of Wire (gauge): Enamel (42) Enamel (42)
  • Coil Dimensions (per coil): 2.61 x 0.68″ 2.61 x 0.68″
  • Coil Material: ABS ABS
  • Coil Winding Process: Machine Wound Machine Wound
  • Pole Piece Material: Nickel Nickel
  • Pole Piece Position from Nut: 18.625″ 23.4375
  • Slug Material: Nickel Nickel
  • Slug Dimensions (diameter x length): 0.187 x 0.489″ 0.187 x 0.489″
  • Magnet Material: Alnico II Alnico II
  • Magnet Position from Nut: 19″ 23.125″
  • Magnet Dimensions: 2.5 x 0.5″ 2.5 x 0.5″
  • Cover: Nickel Nickel
  • Qfactor: 5.54 6.73
  • ResistanceDC: 7697 Ohms 8210 Ohms
  • Resonant Frequency: 2767.56 Hz 2525.54 Hz
  • Tonal & Resonant Advancements:
  • Screw side is the south pole of magnet Screw side is the south pole of magnet
  • Control Pocket Assembly Lead Volume Rhythm Volume
  • Type: 500K Non-Linear 500k Non-Linear
  • Peak Voltage: 500V 500V
  • Range: 0-500K 0-500K
  • Power Rating: 1/4 watt above 100K ohms 1/4 watt above 100K ohms
  • Resistance Tolerance: +/- 20% +/- 20%
  • Minimum Resistance: 200 ohms 200 ohms
  • Lead Tone Rhythm Tone
  • Type: 500k Non-Linear 500k Non-Linear
  • Peak Voltage: 500V 500V
  • Range: 0-500K 0-500K
  • Power Rating: 1/4 watt above 100K ohms 1/4 watt above 100K ohms
  • Resistance Tolerance: +/- 20% +/- 20%
  • Minimum Resistance: 200 ohms 200 ohms
  • Capacitors: Lead Value Rhythm Value ORANGE DROP .022uF ORANGE DROP .022uF
  • Tuning Keys: Vintage Style Keystone
  • Material: Zamak
  • Weight: 1.0 oz
  • String Dimensions
