Matt Heafy Takes the LP Custom Into the Future

Epiphone and Trivium's Matt Heafy present the Ltd. Ed. Matt Heafy Les Paul Custom, a new and totally killer original takes on the world famous Les Paul.

Designed in close collaboration with Matt Heafy, each Ltd. Ed. Matt Heafy Les Paul Custom reflects Heafy's distinctive approach to guitar, which has earned him and Trivium scores of dedicated fans around the world. Trivium's records have sold over a million copies worldwide. Check out a Trivium performance and you'll see why. The rule books on how-to-play a Les Paul go right out the window when Heafy plugs in.

Matt Heafy didn’t wait for permission to change the world. Why should you? Check out the Ltd. Ed. Matt Heafy Les Paul Custom today!

BODY

Custom Sound, Custom Color

Matt Heafy's signature Les Paul feature an all blacked-out Ebony gloss finish that’s especially striking on the sleek profile of a LP Custom. Like all great Les Pauls, the 6 String Ltd. Ed. Custom model feature a mahogany body with a plain maple veneer top, a time-tested combination that has gone virtually unchanged since the '50s.

The mahogany neck has a fast 1960's SlimTaper™ ‘D’ profile with a glued-in deep set neck joint with an "Axcess" heel for a smooth and easy reach to the upper frets. The scale length is 24.75" and the ebony fingerboard has a 12" radius and 22 medium jumbo frets and features pearloid block inlays, which seem to practically glow in the dark against the Ebony finish.

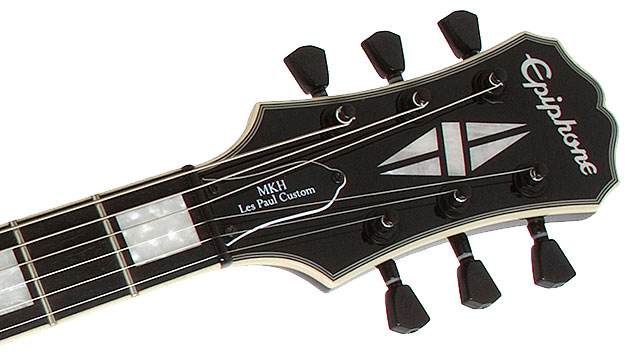

The nut, which is also black, is cut to 1.68". The classic clipped dovewing headstock features the historic pearloid “split-diamond” Les Paul Custom inlay and a vintage style “Epiphone” logo in white. The bell-shaped truss rod cover is black with a shadow of white binding and MKH Les Paul Custom in white silk screen.

Each guitar features beautiful 7-ply white and black binding on the top and 5-ply binding on the headstock. The fingerboard features single ply white binding.

ELECTRONICS

The Power of EMG Pickups

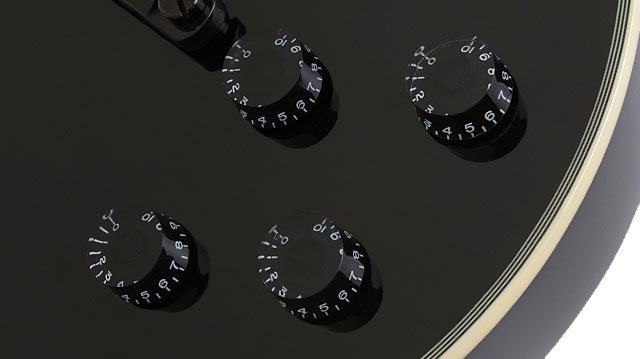

The Ltd. Ed. Matt Heafy Les Paul Custom feature Epiphone’s no-compromise electronics including a 1/4” non-rotating output jack and volume and tone controls with Black Speed Knobs that are powered by full-size 500K Ω potentiometers. The pickup switch is Epiphone’s all-metal 3-way pickup selector with a black toggle cap.

Matt Heafy asked that his Les Paul Custom feature black active EMG pickups voiced especially the guitar’s unique profile. The Ltd. Ed. Matt Heafy Les Paul Custom features an EMG-85 in the neck position and an EMG-81 in the bridge position. The EMG-81 is one of the most popular metal pickups ever and has been at the center of a sound revolution since it was first introduced. Utilizing powerful ceramic magnets and close aperture coils, the EMG-81 is designed for detailed intensity, incredible amounts of high end cut, and fluid sustain. The EMG-85 features Alnico-V magnets and has a slightly more rounded tone. The classic combination of an EMG 81 with an EMG 85 in a Les Paul Custom offers metal guitarists an incredible array of extreme possibilities.

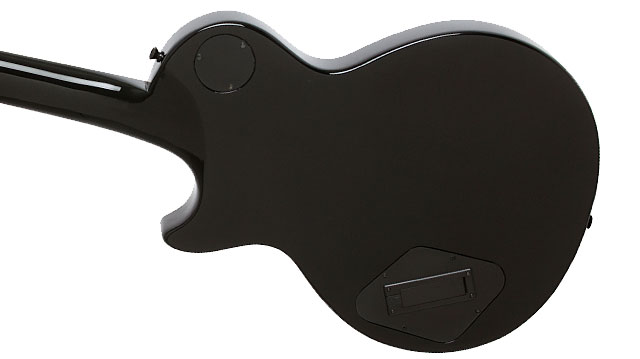

An easy-access 9V battery compartment can be found on the back of the guitar.

HARDWARE

Epiphone Rock Solid Hardware

Like all Epiphones, the Matt Heafy LP Custom includes Epiphone’s made-to-last heavy duty hardware including Epiphone StrapLocks and a black LockTone™ Tune-o-matic/StopBar bridge. It also features deluxe die-cast machine heads with metal “tulip buttons” with a 14:1 tuning ratio. An optional hard case is available.

SPECIFICATIONS

Body mahogany

Top plain maple veneer

Neck mahogany

Neck Profile 1960's SlimTaper™; D profile

Neck Joint glued in at deep-set neck joint with "Axcess" heel

Truss Rod adjustable

Truss Rod Cover 2-ply (black/white); "MKH Les Paul Custom" in white

Fingerboard ebony

Fingerboard inlay pearloid block inlays

Radius 12"

Frets 22 medium jumbo

Scale Length 24.75"

Nut width 1.68 (6-string)

Binding -Body Top - 7 ply (white/black)

-Headstock - 5 ply (white/black)

-Fingerboard - 1 ply (white)

Pickups -EMG-85 (neck), EMG-81 (bridge),(pickups are powered by a 9 volt battery accessible on the back of guitar)

Controls Black Speed Knobs

-neck volume

-neck tone w/KillPot

-bridge volume

-bridge tone

Bridge LockTone™ Tune-o-matic/Stopbar

Output Jack heavy duty Epiphone 1/4" non-rotating

Machine Heads deluxe die-cast with black metal tulip buttons 14:1

Color ebony (gloss)

Typical Weight (+/- 5%) 9.7 lbs

Strings D’Addario® 10, 13, 17, 26, 36, 4610481048
