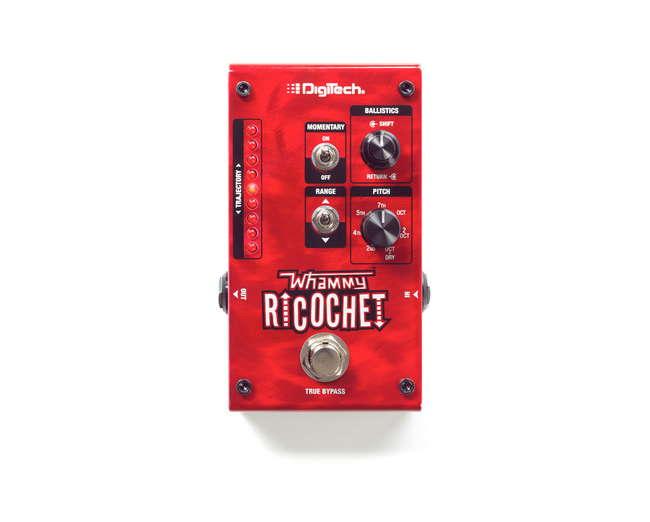

The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot on the footswitch and let the Ricochet do the rest. Seven pitch selections: 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry, as well as a toggle to select up or down for the selected pitch. The Whammy Ricochet also has latching footswitch mode so you can rise or fall to pitch and stay there, and an LED ladder that shows your shift trajectory at all times. All these controls combine to create classic Whammy pitch-shifting as well as new sounds never heard before
Features
Famous Whammy™ sound without a bulky treadle
Bend notes up or down across 2 octaves
7 Selectable Pitch intervals
Ultimate control of Shift and Return time
LED Trajectory Ladder provides instant visual feedback
Classic and Chords mode
Momentary or Latching footswitch
True Bypass in latching mode
Specifications
Input 1/4″ Unbalanced (Tip-Sleeve)
Max Input Level +5 dBu
Input Impedance 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Output 1/4″ Unbalanced (Tip-Sleeve)
Max Output Level +10 dBu
Output Impedance 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Controls Ballistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
Sample Rate 44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response 20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode)
Signal to Noise Ratio > -106dB (A weighted); ref = max level, 22 kHz bandwidth
A/D/A Converter 24-bit
THD 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Power Consumption 2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements 9 VDC External Adapter (sold separately)
Power Supply PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
Power Adapter Output 9 VDC 1.3 A
Weight 0.80 lbs. (0.363 kgs.)
Dimensions 4.75” (L) x 2.875” (W) x 1.75” (H)
