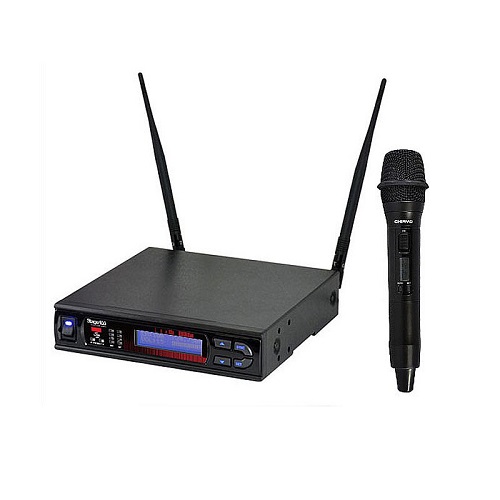

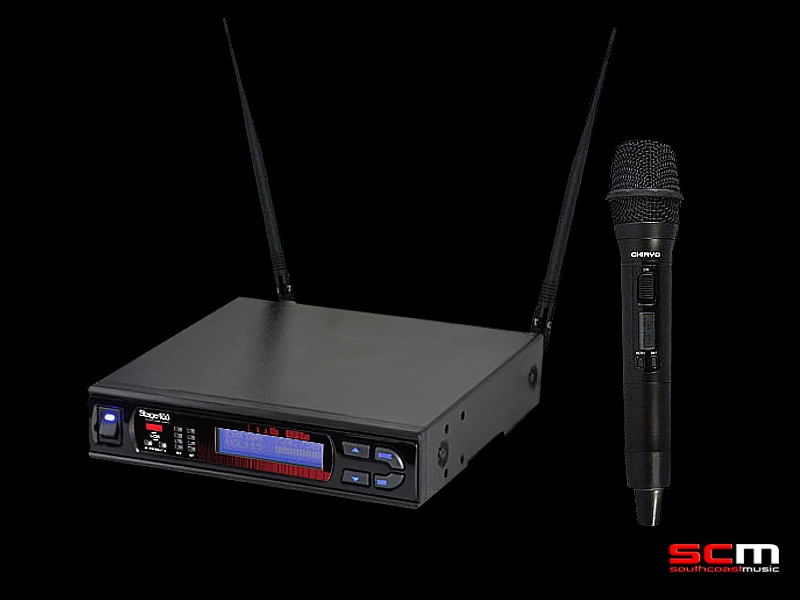

Chiayo STAGE-100Q True Diversity Handheld Wireless Microphone System
- 100 factory preset user-selectable UHF frequencies
- Advanced microprocessor control, excellent RF design with improved signal performance for interference free multi-channel operation
- Patented IrDA technology for 2-way data transfer between transmitter and receiver. Taiwan patent No. : 94128675
- More than 10 channels can be operated simultaneously within a selected 25MHz bandwidth
- True Diversity design for high sensitivity, high selectivity, and high image/spurious rejections
- Easy to read, programmable, multi-function LCD on receiver
- SCAN function automatically searches for the next cleanest frequency
- Antennas can be either rear or front mounted
- Anti-interference Pilotone control and RF noise squelch circuitries
- RF/AF signal strength, Diversity A/B indicators
- Balanced (XLR)*1 / unbalanced (Φ6.3mm)*1 audio outputs
- Digital volume control for precision setting and low noise output
- Battery signal indicator on receiver panel monitors transmitter battery status
- Cost Effective wireless microphone solution
Chiayo are one of the world’s leading manufacturers and innovators of wireless microphone technology.
The Chiayo STAGE-100 system packages features “THAT” audio compansion which provides outstanding audio frequency response.
Compansion is a method of dynamics processing used to overcome the detrimental effects of an audio channel with limited dynamic range.
A combination of the terms compression and expansion, compansion allows signals with a large dynamic range to be transmitted over facilities that have a smaller dynamic range capability such as professional wireless microphones, telephony and analog recording. The skill of the audio design engineer in controlling the threshold and level of the affected signal is paramount to the audio quality of a wireless microphone system.
The STAGE-100Q also features a handy and easy to see transmitter battery status indicator on the front panel of the receiver. The receiver is a metal chassis TRUE DIVERSITY receiver with 100 channels of UHF frequency selection with spectrum scan feature and IR frequency upload/download.
The Chiayo STAGE-100Q package consists of:
- Stage-100 Wireless Receiver
- SQ9000 IrDA Handheld Transmitter
- XLR patch lead
- Rack mounting kit
Multiple systems may be used together over long distances such as sports stadiums with the addition of the optional Chiayo RA-Package and Coax Cable.
Chiayo STAGE-100Q SPECIFICATIONS:
- Frequency Range: UHF
- Switching Bandwidth: 25MHz
- Switchable Frequencies: 100
- Channels: 1
- Display Screen: LCD (BLUE)
- Oscillation Type: PLL Synthesised
- Frequency Stability: ±0.005%
- Receiving Method: True Diversity
- 2-Way synchronisation: Yes
- Sensitivity: -100dBm
- Image Rejection: > 85dB
- S/N Ratio: >110dB
- Peak Deviation: ±40KHz
- T.H.D: < 0.5%
- Antenna Socket: TNC type
- Audio Outputs: XLR *1, 6.3mm *1
- Squelch: RF/Noise/Pilotone squelch
- Power Supply: 100-240V AC, 12V DC/1.0A
- Chassis: Half-rack (metal)
- Dimensions (W*D*H, mm): 200*220*44
- Weight (kg): 1.1
