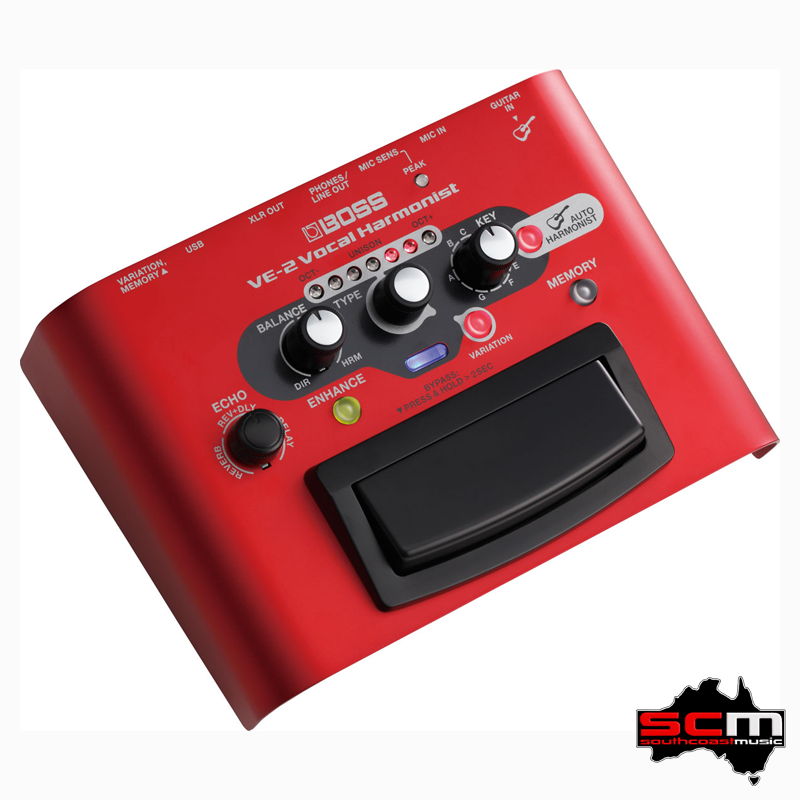

Studio Level Vocals in an Easy-to-Use Stompbox
Combining sophisticated sound with simple operation, the VE-2 Vocal Harmonist delivers a complete effects solution for all singers, particularly those that perform with guitar. This portable, battery-powered stompbox has everything you need to create polished, studio-quality sounds everywhere you sing, from concert stages and street performances to practicing and having fun at home. The VE-2 magically creates beautiful harmonized vocals that follow your singing, with pitch that automatically tracks the chords played on a connected guitar, a preset key, or a combination of the two. Using one of these three operation modes, it’s easy to create perfect real-time harmonies in any key, even if you have no experience with gear or music theory. In addition to harmony, the VE-2 provides essential effects to enhance your voice, such as high-quality reverb/delay and an enhancer with real-time pitch correction. Also included is a USB audio function that allows you to connect to your computer and easily capture impressive VE-2 vocal sounds for music recordings, social media videos, and more.
Nominal Input Level
• MIC IN: -40 dBu (MicSens = Center)
• GUITAR IN: -10 dBu
Input Impedance
• MIC IN: 4 k ohms
• GUITAR IN: 1 M ohm
Nominal Output Level
• XLR OUT: -40 dBu
• PHONES/LINE OUT: -20 dBu
• GUITAR THRU: -10 dBu
Output Impedance
• XLR OUT: 600 ohms
• PHONES/LINE OUT: 33 ohms
Effect Types
• HARMONY, ECHO, ENHANCE
Number of Harmony Types
• 12 x 2(VARIATION)
Number of Memory
• 3
Connectors
• MIC IN jack: XLR type, balanced, phantom power (DC 46 V, 10 mA Max)
• GUITAR IN jack: 1/4-inch phone type
• GUITAR THRU jack: 1/4-inch phone type
• XLR OUT jack: XLR type
• PHONES/LINE OUT jack: Stereo miniature phone type
• VARIATION, MEMORY INC jack: 1/4-inch TRS phone type
• USB COMPUTER port: USB type B
• DC IN jack
Power Supply
• Rechargeable Ni-MH battery (AA, HR6) x 4
• Alkaline battery (AA, LR6) x 4
• AC Adaptor (sold separately)
Current Draw
• 200 mA Max. (9 V)
Expected battery life under continuous use:
• Rechargeable Ni-MH battery(*1): Approx. 12 hours (phantom power: OFF), Approx. 8 hours (phantom power: ON)
• Alkaline battery: Approx. 11 hours (phantom power: OFF), Approx. 7 hours (phantom power: ON)
*1 When using batteries having a capacity of 2,450 mAh.
* These figures will vary depending on the specifications of the batteries and the actual conditions of use.
Accessories
• Owner’s Manual
• Leaflet “USING THE UNIT SAFELY”
• Alkaline Battery (AA, LR6) x 4
Options (sold separately)
• AC Adaptor (PSA series)
• Footswitch (FS-5U, FS-6, FS-7)
Size and Weight
Width
• 156 mm / 6-3/16 inches
Depth
• 116 mm / 4-5/8 inches
Height
• 64 mm / 2-9/16 inches
Weight
• 600 g / 1 lbs. 6 oz.
