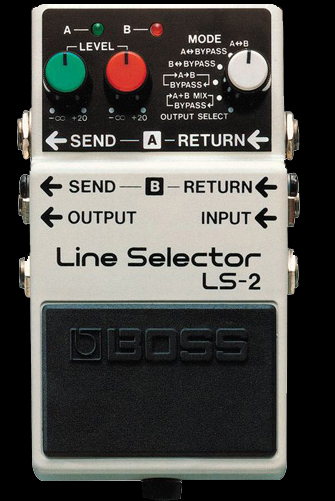

Boss LS2
line selector – switcher
The Boss LS-2 Line Selector is an incredibly easy way to switch settings among several effects or amplifiers. When used with an AC adaptor, the LS-2 can also supply power to several BOSS compact pedals.
This is a very versatile pedal, and used on many professional guitarists pedalboards including Noel Gallagher and John Mayer to name but a few.
The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.
Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
Provides two line loops with Level control and six looping modes
Can supply power to several BOSS compact pedals when used with an AC adaptor
The ideal power supply and master switching unit for multiple effects setups
Boss 5-year warranty
USING THE Boss LS-2
1. A B Mode: Effects you use for your backing sound are connected to Loop B, while Loop A is used for solos and riffs.
2. A + B MIX BYPASS mode: This setting lets you mix a solo sound on Loop A and a backing sound on Loop B.
3. A B Mode: This setup is for switching between an effects loop and tuner. Switch to mode B during live performance for silent tuning.
4. A–––> B / BYPASS mode: This setup lets you switch between a guitar and synthesiser.
5. OUTPUT SELECT mode: This setup lets you choose between two or three outputs such as switching from a tube amp to a transistor amp to a monster stack, etc.
Boss LS2 specifications:
Input Impedance: 1 M ohms
Output Impedance: 1 k ohms
Recommended Load Impedance: 10 k ohms or greater
Residual Noise Level: – 85 dBu or less (IHF-A, Typ.)
Connectors: INPUT Jack, OUTPUT Jack, RETURN A/ B Jack, SEND A/ B Jack, DC In/Out
Power Supply: DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
Current Draw: 25 mA (DC 9 V)
Supplied Accessories: Dry Battery 9 V type (6F22/9 V)
Optional Accessories: AC Adaptor (PSA-Series), Patch Cables
W-Dimensions: 73 mm (2-7/8″) x D-129 mm (5-1/8″) x H-59 mm (2-3/8″)
Weight: 0.4 kg (15 oz.)
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
