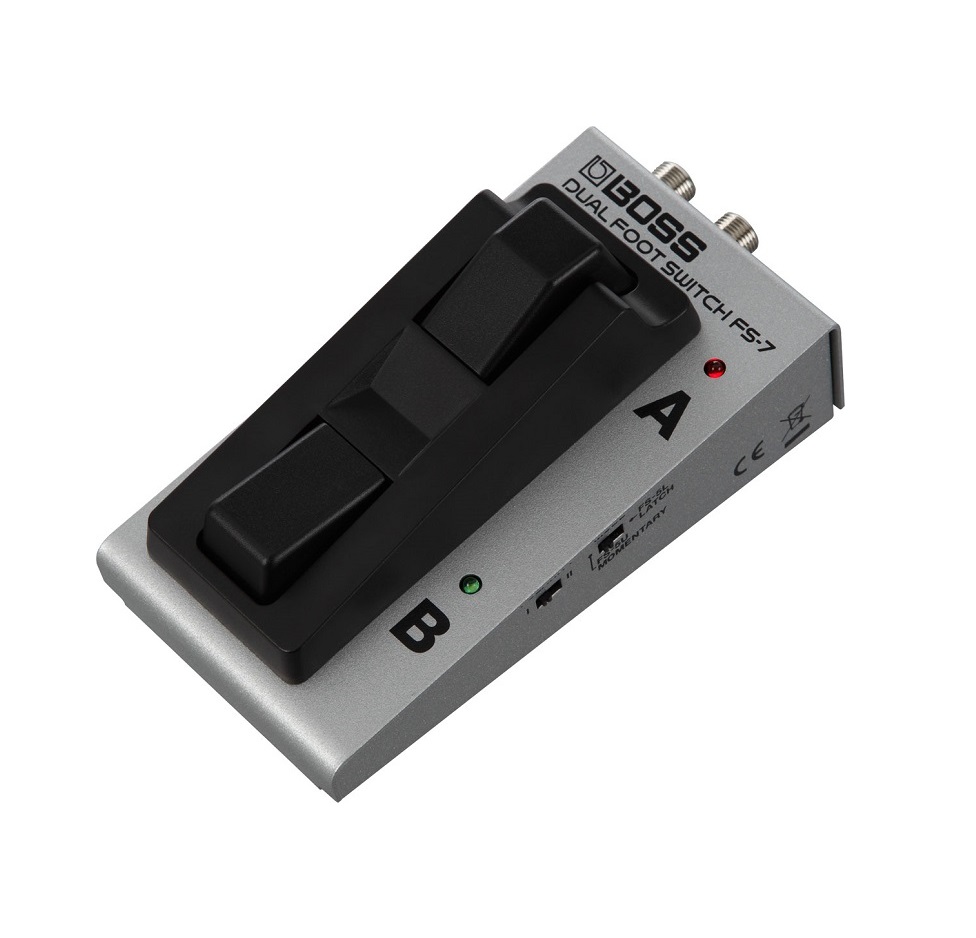

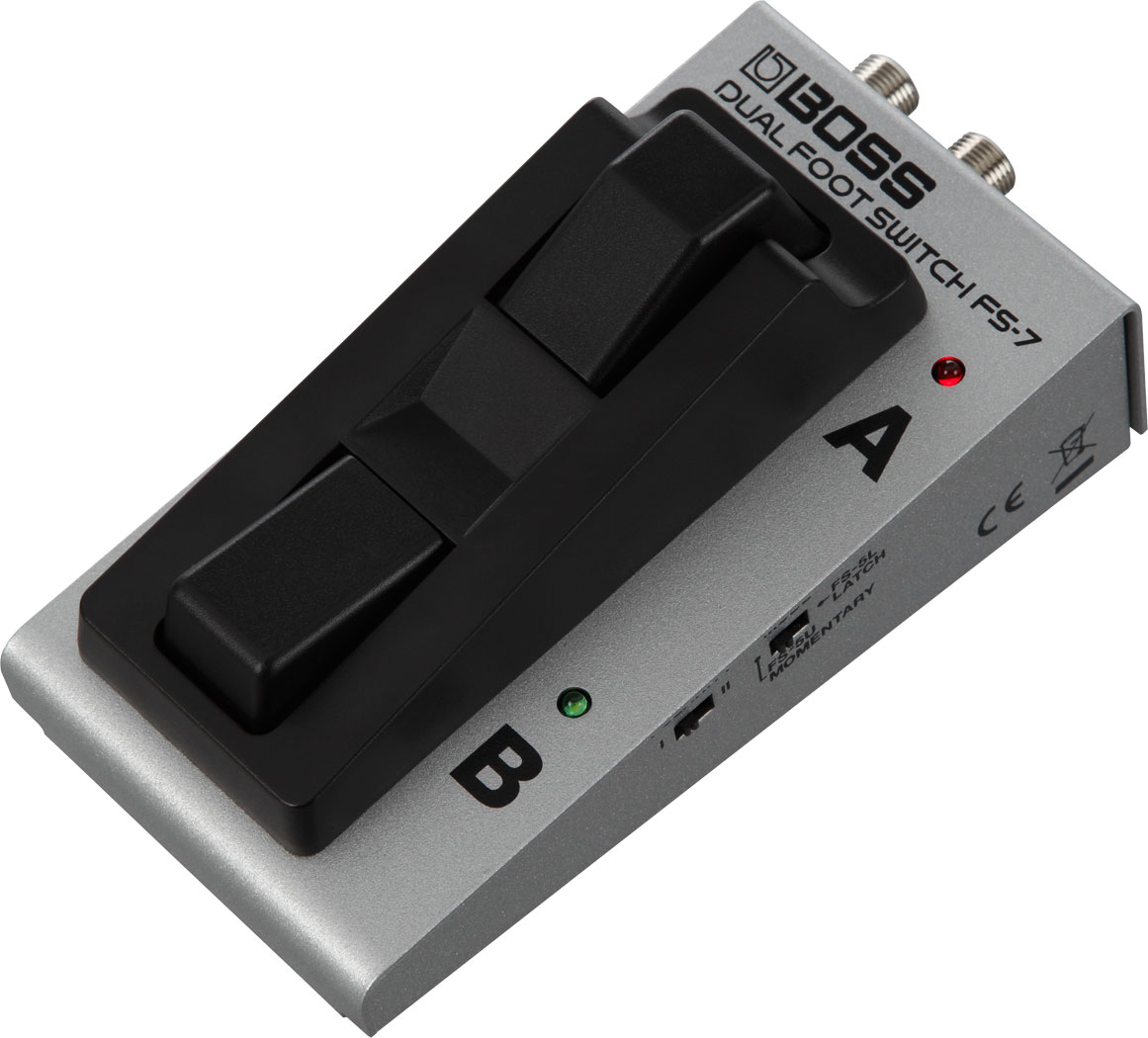

BOSS FS-7 FOOTSWITCH MULTIFUNCTIONAL DUAL ELECTRIC GUITAR SWITCHING PEDAL

SPACE-SAVING, MULTIFUNCTIONAL DUAL FOOTSWITCH

FS-7 is a compact dual footswitch for remote control of effect pedals or amp channel switching. Two footswitches are arranged in tandem, which saves space on effects pedal boards. Two selectable modes for latch or momentary allow for control of a wide range of equipment.

Dual footswitch in a small footprint

Latch/momentary switching function (common to A and B)

Durable steel chassis

Battery-free operation ideal for pedal boards

Power via 9v adapter (power splitter included)

Operates as momentary switch with no power*

*LEDs will not illuminate without AC power.

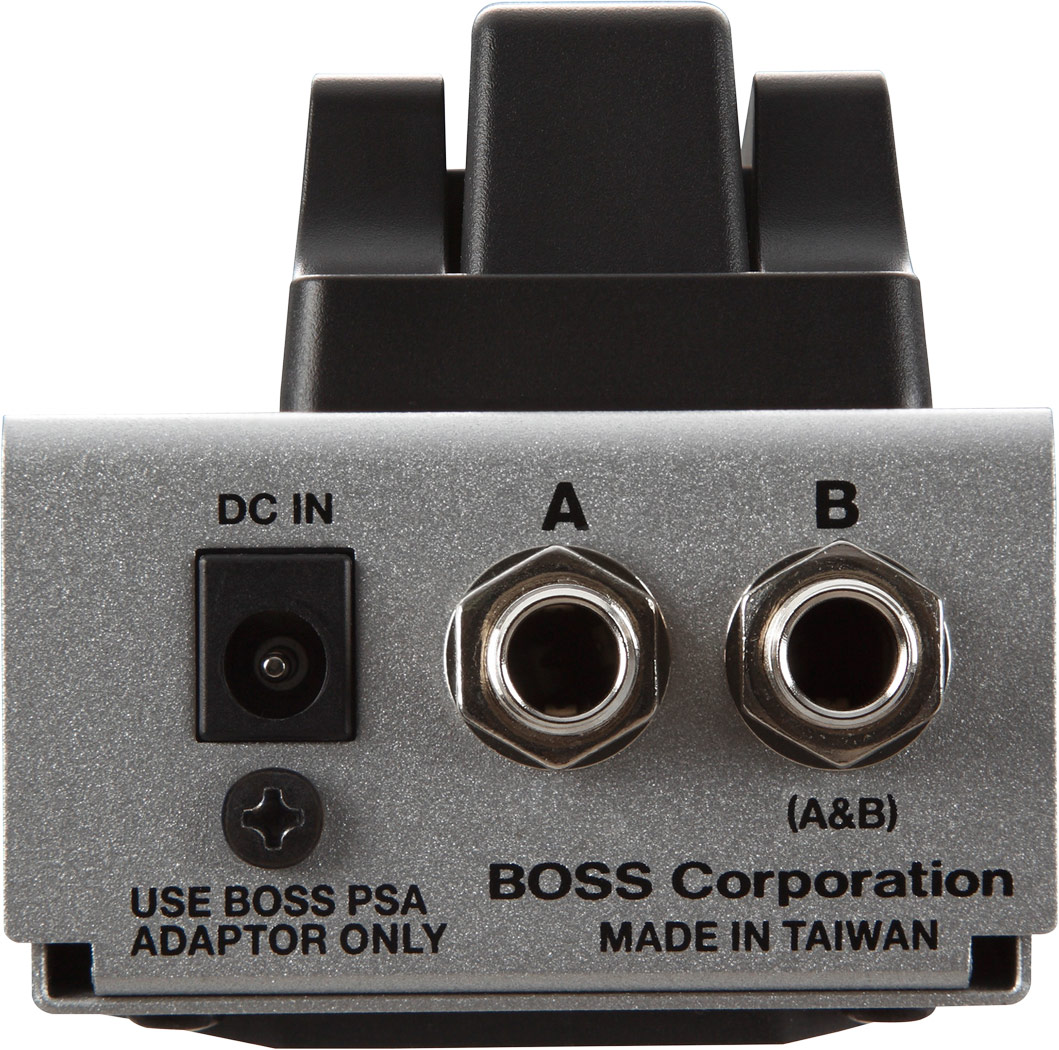

ConnectorsA jack: 1/4-inch TRS phone type (*)

B jack: 1/4-inch phone type

DC IN jack

* You can also connect a 1/4-inch phone plug.

IndicatorsA, BControls[MODE] switch

[POLARITY] switchPower SupplyAC adaptor (PSA series: sold separately)Current Draw25 mAAccessoriesParallel DC cable

Owner's ManualSIZE AND WEIGHTWidth62 mm

2-1/2 inchesDepth131 mm

5-3/16 inchesHeight60 mm

2-6/16 inchesWeight290 g

0 lbs. 11 oz.
