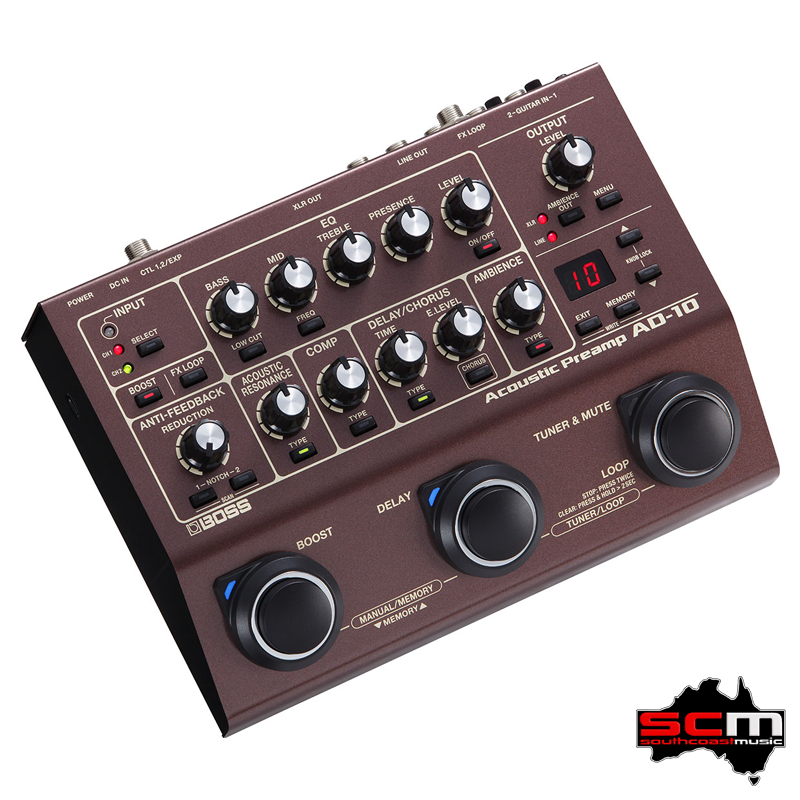

Anyone who plays an amplified acoustic guitar on stage knows what a challenge it is to get a sound that’s as inspiring as playing the instrument acoustically. The AD-10 is your solution to this age-old problem, offering advanced sound tools that enable you to achieve rich, natural acoustic tones every time you perform. At its core, the AD-10 is a fully featured, dual-channel acoustic preamp/DI pedal with premium audio quality, deep sound-shaping options, and flexible connectivity. On top of that, ambience, chorus, and delay effects are built in, eliminating the need to carry external sound processing.

Nominal Input Level

• GUITAR IN 1,2: -10 dBu (Adjustable)
• RETURN: -10 dBu

Input Impedance

• GUITAR IN 1,2: 10 M ohms
• RETURN: 220 k ohms

Nominal Output Level

• SEND: -10 dBu
• LINE OUT L/PHONES, R/MONO: -10 dBu
• XLR OUT L, R: -10 dBu

Output Impedance

• SEND: 1 k ohm
• LINE OUT L/PHONES, R/MONO: 44 ohm
• XLR OUT L, R: 600 ohms

Mode

• Manual
• Memory

Number of Memory

• 10

Effects

• ACOUSTIC RESONANCE (3Type)
• COMP (2Type)
• 4 BAND EQ, LOW CUT
• BOOST
• CHORUS (3Type)
• DELAY (3Type)
• REVERB (3Type)
• ANTI-FEEDBACK (REDUCTION, NOTCHx2)

Phrase Loop

• 80 sec

Display

• 7 segments, 2 digits LED

Connectors

• GUITAR IN 1,2 jack: 1/4-inch phone type
• SEND: 1/4-inch phone type
• RETURN: 1/4-inch phone type
• XLR OUT L, R connectors: XLR type
• LINE OUT L/PHONES, R/MONO jacks: 1/4-inch phone type
• EXP/CTL1,2 jack: 1/4-inch TRS phone type
• USB COMPUTER port: USB type B
• DC IN jack

Power Supply

• AC adaptor
• Alkaline battery (AA, LR6) x 6

Current Draw

• 300 mA

Expected battery life under continuous use

• Alkaline battery: Approx. 6 hours

*These figures will vary depending on the actual conditions of use.

Accessories

• Owner's manual
• Leaflet "USING THE UNIT SAFELY"

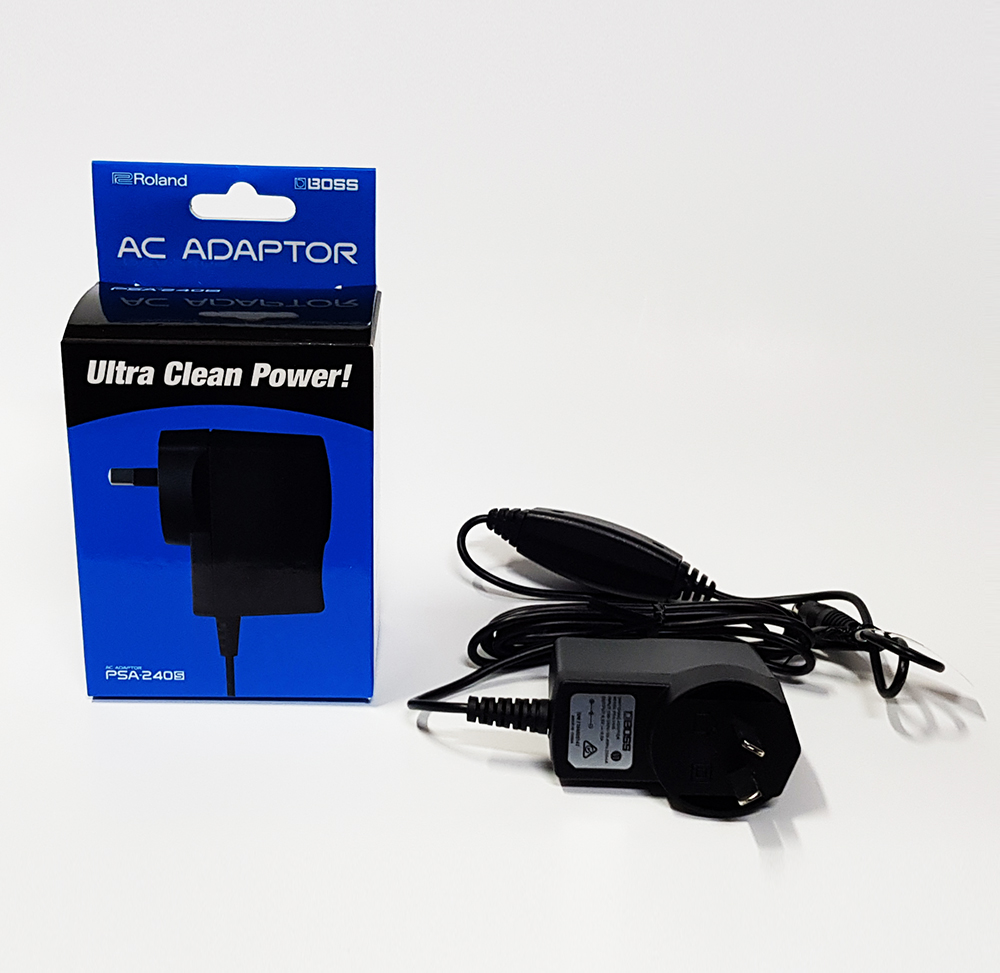

• AC adaptor

Options (sold separately)

• Expression Pedal: EV-30, FV-500H/L, Roland EV-5
• Footswitch: FS-5U
• Dual Footswitch: FS-6, FS-7

Size and Weight

Width

• 217 mm / 8-9/16 inches

Depth

• 161 mm / 6-3/8 inches

Height

• 65 mm / 2-9/16 inches

Weight (including batteries)

• 1.3 kg / 2 lbs 14 oz

* 0 dBu = 0.775 Vrms
