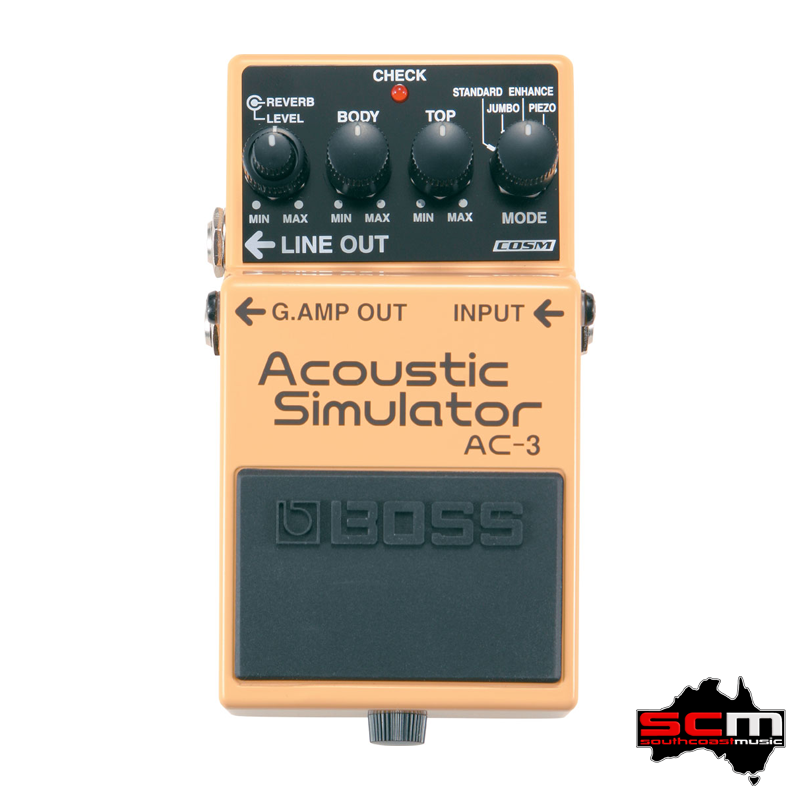

BOSS is pleased to offer another “Authentic BOSS” Compact Pedal; the AC-3. How many times have you been onstage or in the studio with your electric guitar, and wished that you’d brought an acoustic along? For musicians who travel light, hauling an extra guitar to the gig isn’t always the most attractive option. BOSS AC-3 to the rescue! This new-generation compact pedal employs COSM modeling technology to transform any electric guitar into a variety of beautiful acoustic guitars.

Nominal Input Level

• -20 dBu

Input Impedance

• 1 M ohm

Nominal Output Level

• -20 dBu

Output Impedance

• 1 k ohm

Recommended Load Impedance

• 10 k ohms or greater

Bypass

• Buffered bypass

Controls

• MODE knob
• TOP knob
• BODY knob
• REVERB/LEVEL knob
• Pedal switch

Indicator

• CHECK indicator (Used for indication of check battery)

Connectors

• INPUT jack: 1/4-inch phone type
• LINE OUT jack: 1/4-inch phone type
• G.AMP OUT(Guitar Amp Out) jack: 1/4-inch phone type
• DC IN jack

Power Supply

• Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)

Current Draw

• 50 mA

Expected battery life under continuous use

• Alkaline: Approx. 8 hours
• *These figures will vary depending on the actual conditions of use.

Accessories

• Owner's manual
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Alkaline battery (9 V, 6LR61)

Options (sold separately)

• AC adaptor: PSA series

Size and Weight

Width

• 73 mm / 2-7/8 inches

Depth

• 129 mm / 5-1/8 inches

Height

• 59 mm / 2-3/8 inches

Weight (including battery)

• 425 g / 15 oz

* 0 dBu = 0.775 Vrms

* The specifications are subject to change without notice.
