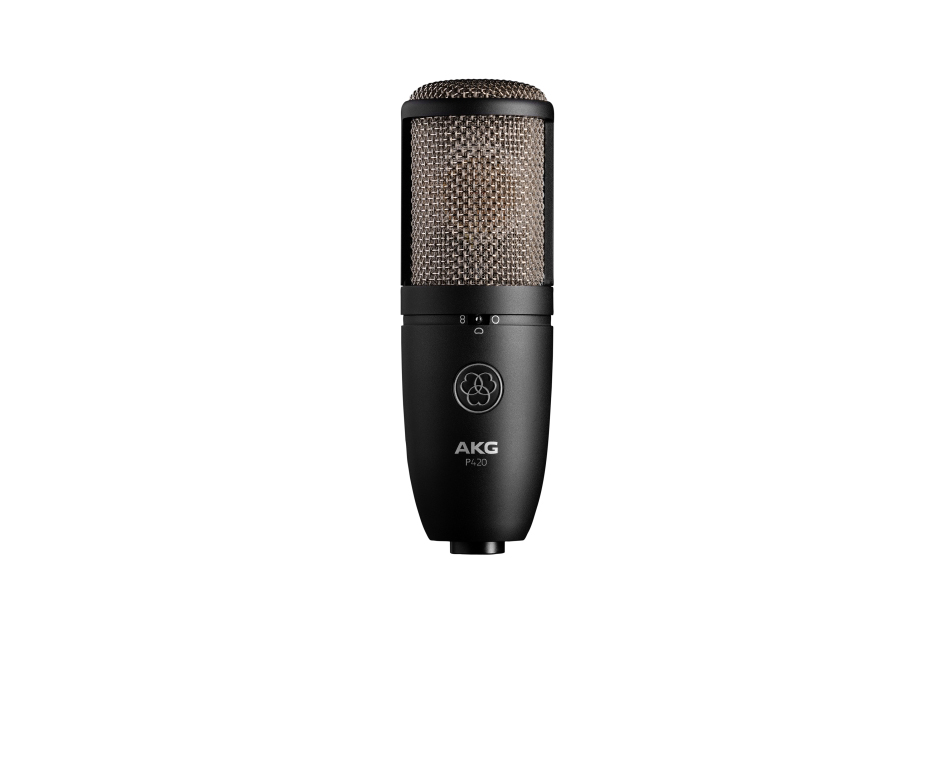

AKG P420 DUAL-CAPSULE TRUE CONDENSER MIC PROFESSIONAL RECORDING MICROPHONE - NEW

The P420 is a multi-pattern large diaphragm true condenser microphone for demanding project studio recording applications. Offering high sensitivity and 155dB maximum SPL, the P420 delivers a warm, transparent sound quality perfectly suited for ensemble recording, grand piano, woodwind and brass instruments, as well as drums and percussion. With three selectable polar patterns – cardioid, omnidirectional or figure 8 – it is an ideal tool for stereo miking techniques and ambient recording.

TECHNICAL SPECIFICATION

General

Audio Frequency bandwidth 20 to 20000 Hz

Sensitivity 28 mV/Pa

Equivalent Noise Level 15 dB-A

Signal to Noise 79 dB-A

Preattenuation Pad -20 dB

Bass Cut Filter 300 - 12 dB/octave Hz

Electrical Impedance <= 200 Ohms Recommended Load Impedance >= 1000 Ohms

Polar Patterns

Cardioid

Omnidirectional

Figure of eight

Powering Interface

Voltage 44 to 52 V

Current <= 3 mA

Audio Output

Type Balanced XLR

Gender Male

Contacts 3-pin

Dimensions / Weight

Length 165 mm

Diameter 54 mm

Net Weight 530 g
